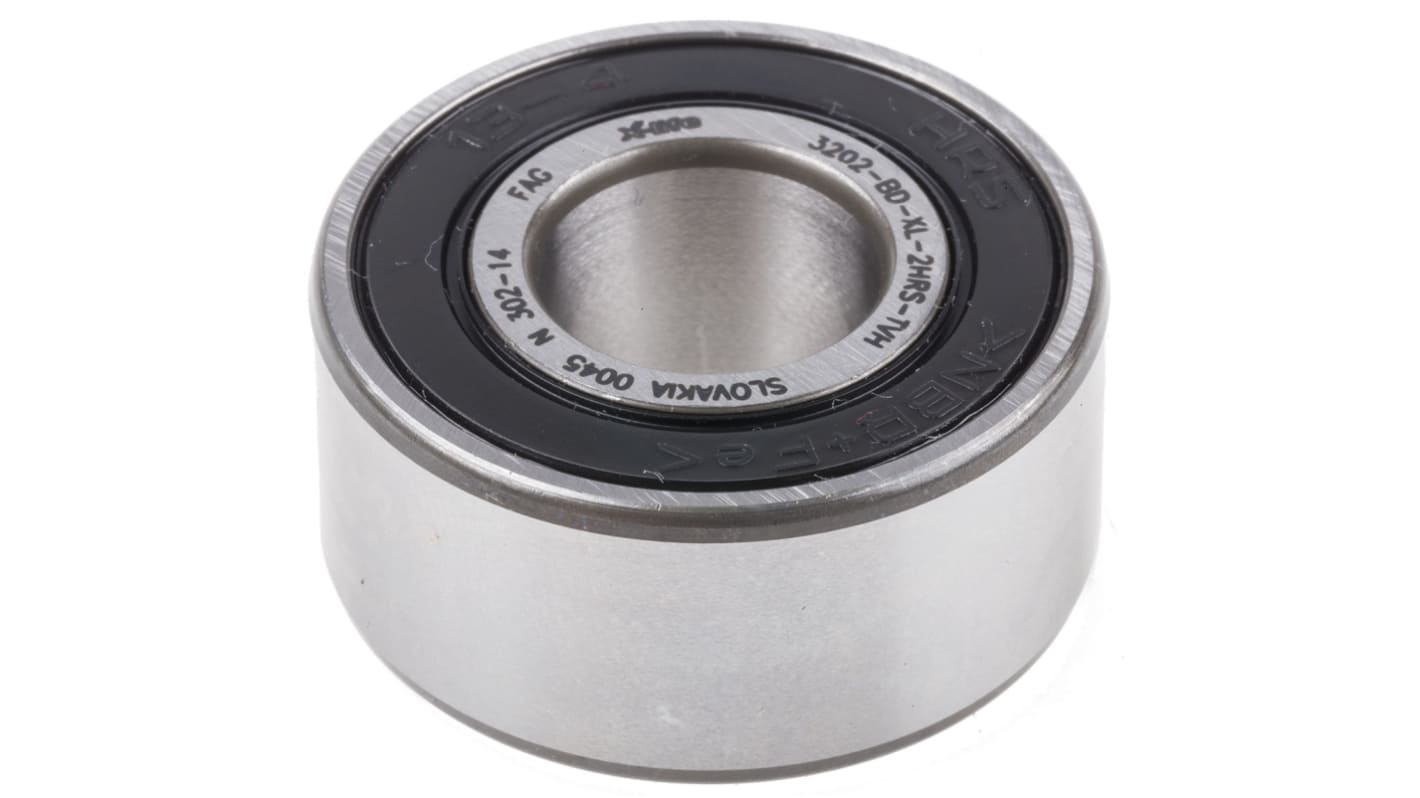

FAG 3202-BD-XL-2HRS-TVH 2 Row Angular Contact Ball Bearing - 15 mm ID, 35 mm OD 15.9 mm Race Width
- RS Stock No.:
- 174-0992
- Mfr. Part No.:
- 3202-BD-XL-2HRS-TVH
- Brand:
- FAG
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$120.20
(exc. GST)
$132.22
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- Plus 21 unit(s) shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 12 | $120.20 |
| 13 - 24 | $116.86 |
| 25 + | $113.74 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 174-0992
- Mfr. Part No.:
- 3202-BD-XL-2HRS-TVH
- Brand:
- FAG
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Angular Contact Ball Bearing | |
| Inside Diameter | 15mm | |
| Outside Diameter | 35mm | |
| Race Width | 15.9mm | |
| Ball Material | Steel | |
| Cage Material | Polyamide | |
| End Type | Sealed | |
| Number of Rows | 2 | |
| Static Load Rating | 7.4kN | |
| Contact Angle | 30° | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 12.6kN | |
| Series | 2 Light | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 16700rpm | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Bearing Type | Double Row Angular Contact Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Angular Contact Ball Bearing | ||
Inside Diameter 15mm | ||
Outside Diameter 35mm | ||
Race Width 15.9mm | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
End Type Sealed | ||
Number of Rows 2 | ||
Static Load Rating 7.4kN | ||
Contact Angle 30° | ||
Internal Clearance CN | ||
Dynamic Load Rating 12.6kN | ||
Series 2 Light | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 16700rpm | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Saves Energy | ||
Bearing Type Double Row Angular Contact Ball | ||
Race Type Plain | ||
Schaeffler 2 Light Series Angular Contact Ball Bearing, 15mm Inside Diameter, 35mm Outside Diameter - 3202-BD-XL-2HRS-TVH
This angular contact ball bearing falls under the category of double row bearings, designed for reliable performance in demanding applications. With an inner diameter of 15mm and an outer diameter of 35mm, this component is engineered to accommodate both radial and axial loads.
Features & Benefits
• Double row design provides enhanced load distribution
• Sealed ball bearing prevents contamination and improves lifespan
• Constructed from steel for durability and strength
• Features a polyamide cage for reduced friction
• Offers a static load rating of 7.4kN for heavy-duty use
• Suitable for applications requiring high-load performance
Applications
• Used for precision machinery in processes
• Ideal for electric motors that require robust support
• Employed in systems demanding high-speed operation
• Utilised within equipment needing both radial and axial load management
What is the advantage of the double row design in this bearing?
The double row configuration allows for greater load capacity, enhancing stability and reliability in applications where space is limited.
How does the sealing arrangement impact the performance?
The sealed design keeps contaminants out, ensuring smooth operation and prolonging the bearing’s service life, especially in harsh conditions.
What materials are used in its construction, and how do they contribute to performance?
The use of steel for the bearing and polyamide for the cage provides strength and reduces friction, improving efficiency during operation.
What load ratings should I consider for my specific application?
This bearing has a static load rating of 7.4kN and a dynamic load rating of 12.6kN, making it suitable for various high-load scenarios.
