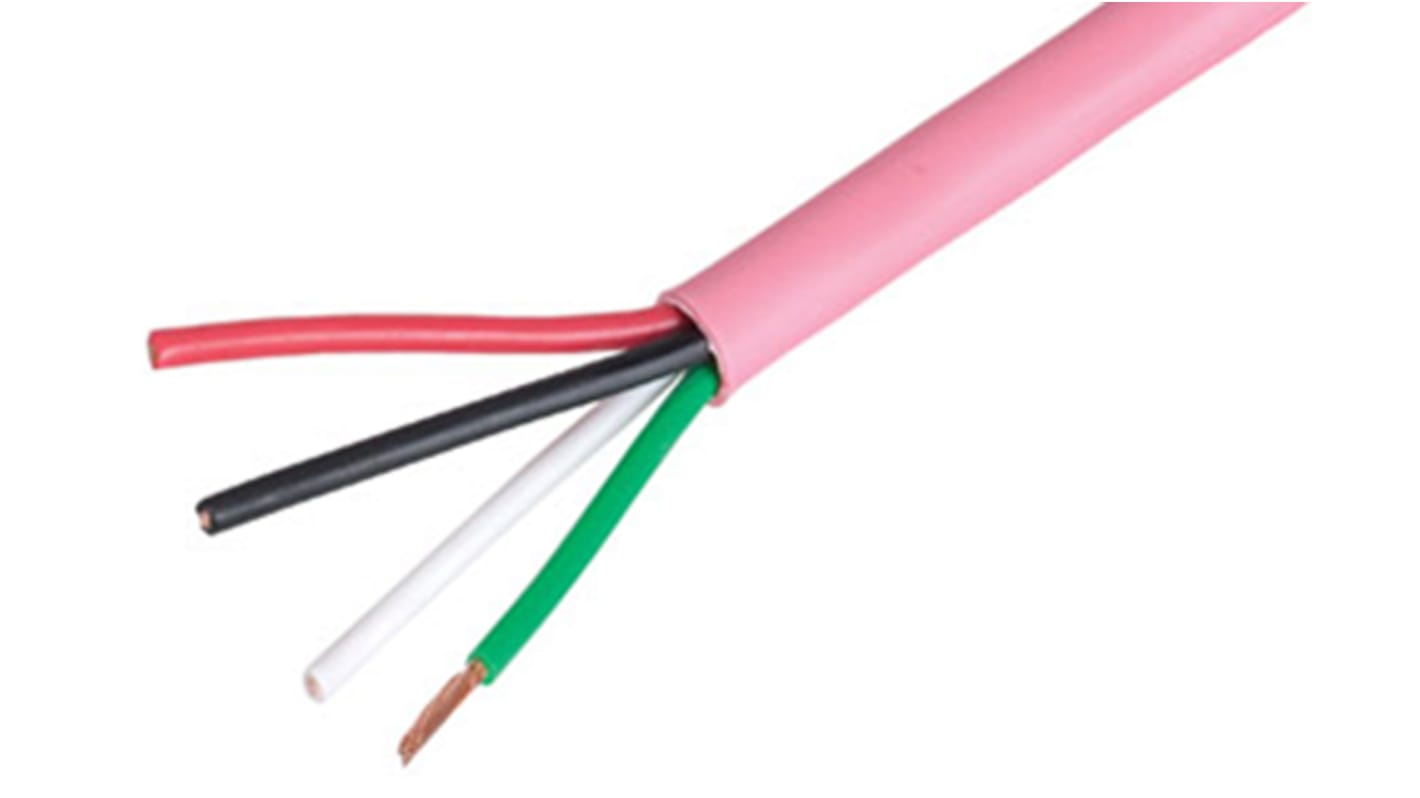

Cable Power 4 Core Speaker Cable, 1.5 mm² CSA, 7.5mm od, 50m, Pink
- RS Stock No.:
- 852-5456
- Mfr. Part No.:
- SC-4-50
- Brand:
- Cable Power
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 852-5456
- Mfr. Part No.:
- SC-4-50
- Brand:
- Cable Power
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cable Power | |
| Audio Cable Type | Speaker Cable | |
| Number of Cores | 4 | |
| Cross Sectional Area | 1.5 mm² | |
| Insulation Material | PE | |
| Outer Diameter | 7.5mm | |
| Length | 50m | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +90°C | |
| Sheath Colour | Pink | |
| Conductor Strand Type | Stranded | |
| Conductor Resistance | 13.3 Ω/km | |
| Conductor Material | Annealed Copper | |
| Number of Strands | 30 | |
| Core Strands | 30/0.24 mm | |
| Sheath Material | Low Smoke Zero Halogen (LSZH) | |
| Cable Shape | Multicore | |
| Select all | ||
|---|---|---|
Brand Cable Power | ||
Audio Cable Type Speaker Cable | ||
Number of Cores 4 | ||
Cross Sectional Area 1.5 mm² | ||
Insulation Material PE | ||
Outer Diameter 7.5mm | ||
Length 50m | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +90°C | ||
Sheath Colour Pink | ||
Conductor Strand Type Stranded | ||
Conductor Resistance 13.3 Ω/km | ||
Conductor Material Annealed Copper | ||
Number of Strands 30 | ||
Core Strands 30/0.24 mm | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- CN
Cable Power LSZH Loudspeaker Cable
A high performance installation cable with LSOH fire rated outer sheath. This loudspeaker cable delivers good levels f performance in the majority of multi room installations. These cables can be used for interconnection of control equipment and instruments, high performance audio systems, multi room installations, home cinema set ups.
2 and 4 Core availability
LSOH fire rated
Pink colour sheath for easy identification
Plain annealed copper wire stranding
PE insulation
LSHF sheath material
LSOH fire rated
Pink colour sheath for easy identification
Plain annealed copper wire stranding
PE insulation
LSHF sheath material
Standards
EU RoHS
Cable Power LSZH Loudspeaker Cable
