Guide to Computer Cable Types & Cable Connectors Types

Computer cable and connectors are essential components of any computer system. They ensure the flow of power and data between different parts of your computer. From pc power connectors to the different types of computer connectors for peripherals and more, understanding these connections is crucial for troubleshooting, upgrading, or building a computer. This guide explores the different types of computer cables and their functions to help make informed decisions for your setup.

While both USB and HDMI cables are essential computer cable types for modern computing, they serve very different purposes.

USB (Universal Serial Bus) cables are primarily designed for data transfer and connecting peripherals. They are the versatile workhorses of the computer world, used for everything from keyboards and mice to printers and external hard drives.

• Data Transfer: USB excels at moving files, backing up data, and facilitating communication between devices.
• Power Delivery: Many USB cables also provide power, allowing you to charge devices like smartphones and tablets.
• Versatility: USB comes in various types of computer connectors (USB-A, USB-B, USB-C, mini-USB, micro-USB), catering to a wide range of devices and applications.

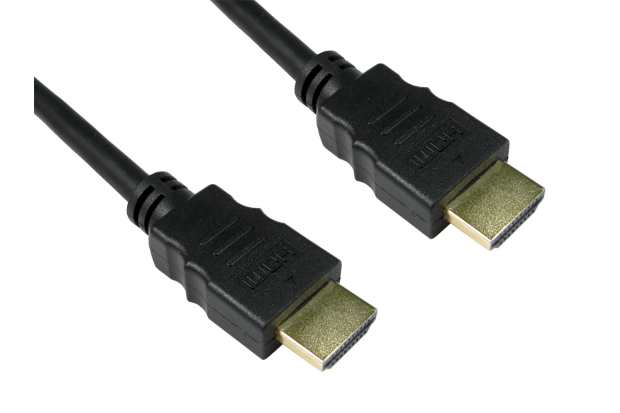

HDMI (High-Definition Multimedia Interface) cables, on the other hand, specialise in transmitting high-definition audio and video signals. They are the backbone of home entertainment systems and high-quality visual experiences.

• Audio/Video Transmission: HDMI delivers uncompressed audio and video, ensuring optimal picture and sound quality for TVs, monitors, and projectors.
• Single Cable Solution: HDMI carries both audio and video signals in a single cable, simplifying connections.
• High Bandwidth: HDMI supports high resolutions, refresh rates, and features like 3D and HDR, making it ideal for gaming and immersive media consumption.

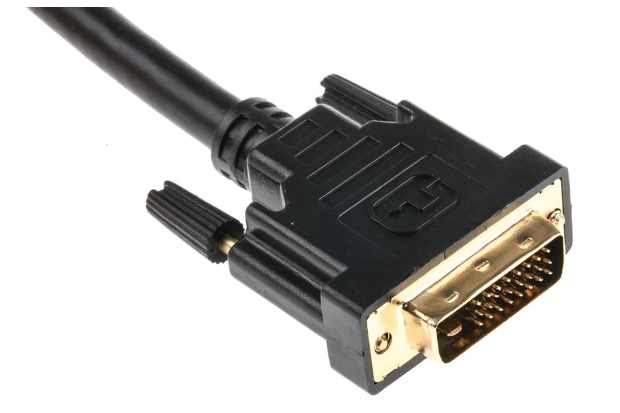

The type of computer cable or connector for your monitor can significantly impact your viewing experience. HDMI and VGA are two different computer cables commonly used for displays, but come with very different capabilities.

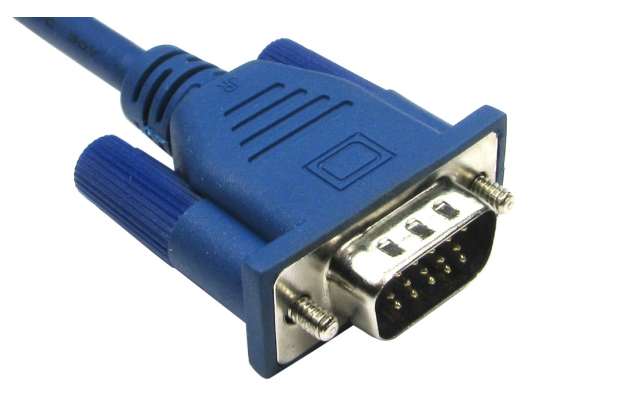

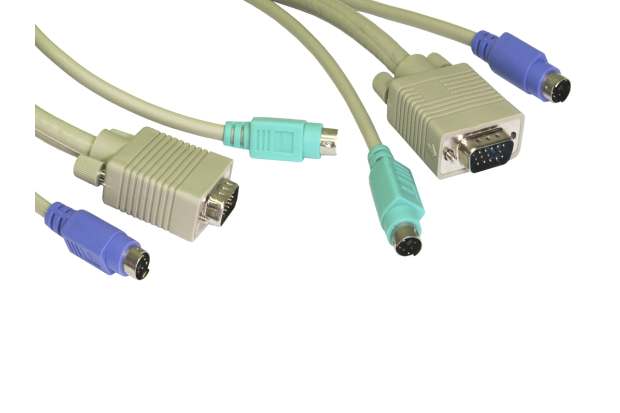

VGA cables are an older analogue technology, offering basic video output. While they can get the job done for standard-definition displays, they fall short when it comes to high-definition content.

• Analogue Signal: VGA transmits analogue video signals, which can be susceptible to interference and degradation.
• Limited Resolution: VGA supports lower resolutions compared to HDMI, making it unsuitable for modern high-resolution monitors.
• Video Only: VGA cables only carry video signals; you'll need a separate cable for audio.

HDMI cables, on the other hand, are the modern standard for high-definition audio and video. They deliver a superior visual experience with crisp images and immersive sound.

• Digital Signal: HDMI transmits digital signals, ensuring a clean and sharp image without signal loss.
• High Resolution: HDMI supports high resolutions, including 4K and beyond, making it ideal for modern displays.
• Audio and Video: HDMI carries both audio and video signals in a single cable, simplifying connections.

Computer data cables are the backbone of digital communication, facilitating the transfer of information between various components and devices. There are three types of computer data cables, each optimised for specific applications and performance requirements.

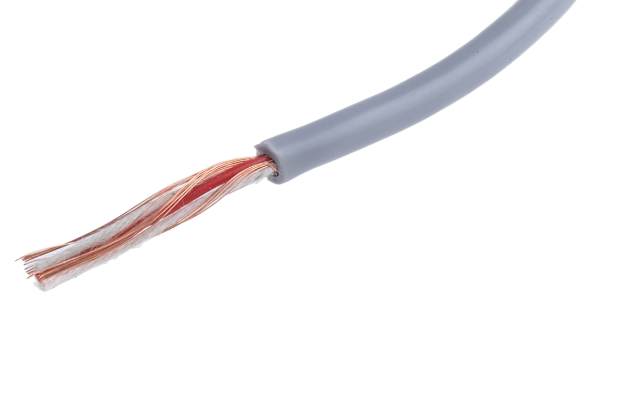

Twisted Pairs

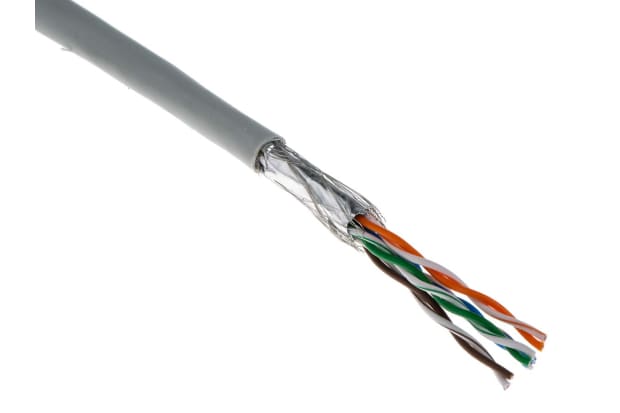

Twisted pair cables are a common type of PC cable consisting of two insulated copper wires twisted together. This twisting helps to reduce electromagnetic interference and crosstalk, ensuring reliable data transmission.

• Unshielded Twisted Pair (UTP): UTP cables are widely used in Ethernet networks (e.g., Cat5e, Cat6) for connecting computers, routers, and other network devices. They are also used in telephone lines.
• Shielded Twisted Pair (STP): STP cables have an added layer of shielding to further reduce interference, making them suitable for environments with high electromagnetic noise.

Coaxial

Coaxial cables consist of a central conductor surrounded by an insulating layer, a braided shield, and an outer jacket. This construction provides excellent noise immunity and supports higher bandwidths compared to twisted pairs.

Coaxial cables are used for cable television, internet connections (especially older cable internet services), and radio frequency applications. They were also used in early Ethernet networks (e.g., 10BASE2).

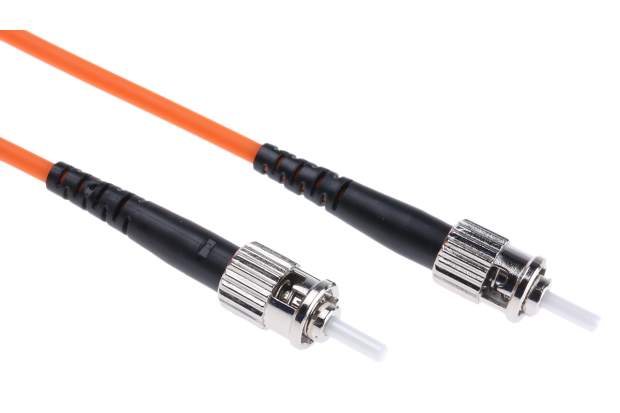

Fibre Optic

Fibre optic cables transmit data as pulses of light through thin strands of glass or plastic fibers. This technology offers significantly higher bandwidth and data transfer rates compared to copper cables.

Fibre optic cables are ideal for high-speed networking, long-distance communication, and applications requiring minimal signal loss. They are typically used in high-performance networks, internet backbones, telecommunications, and increasingly in home internet connections (Fibre to the Premises).

Computer network cables are specifically designed to connect devices within a network, enabling communication and data exchange between computers, servers, and other network infrastructure.

Dual Coaxial

Dual coaxial cables essentially combine two coaxial cables within a single jacket. This configuration provides even higher bandwidth and improved noise cancellation compared to standard coaxial cables. They are used in some legacy network systems and specialised applications where high bandwidth and noise immunity are crucial.

Dedicated Telephone Cables

Dedicated telephone cables are used for traditional telephone lines and DSL internet connections. They typically consist of twisted pairs within a larger cable bundle. These cables can carry both voice and data signals, making them suitable for basic internet connectivity and phone services, primarily in residential and small office settings.

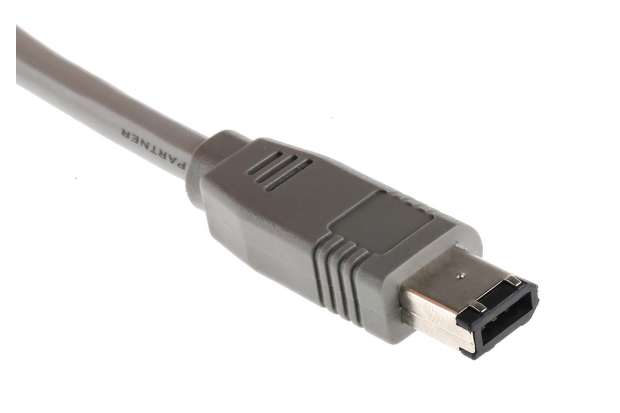

Computer cable connectors types determine how different computer cables interface with various devices and components, ensuring proper signal transmission and functionality.

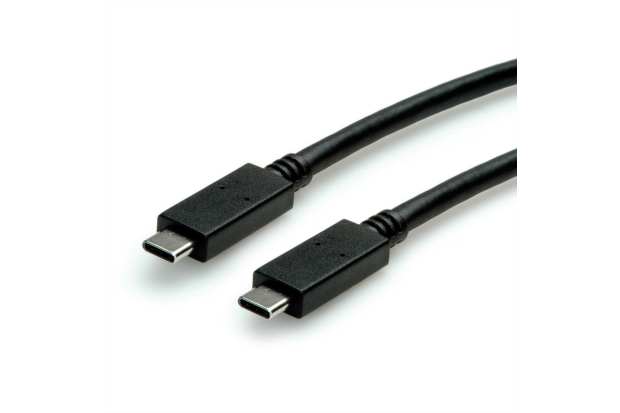

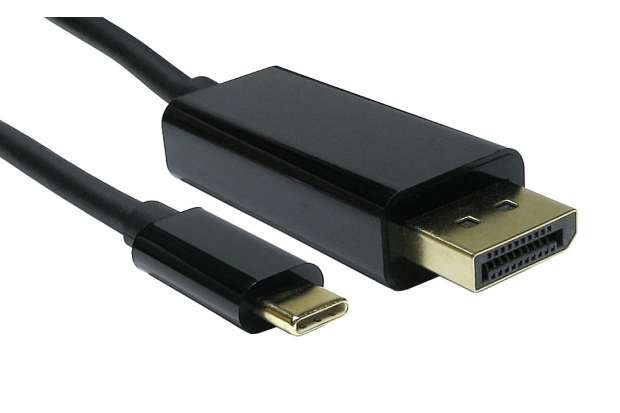

The USB connector is arguably the most ubiquitous in modern computing. USB cables utilise a variety of USB connector types, including USB-A, USB-B, USB-C, Mini-USB, and Micro-USB, each designed for different devices and purposes. They are used for data transfer, charging, and connecting a wide range of peripherals.

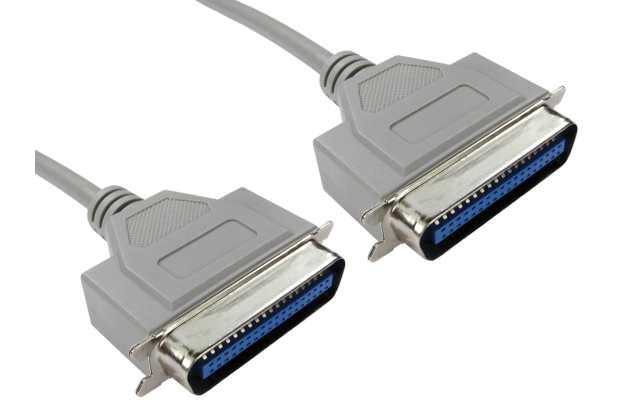

The D-sub connector family encompasses various types, including the well-known VGA connector for video signals. These connectors have a characteristic D-shaped metal shell and are used for both analogue and digital signals in various types of pc cable. Other examples include the DE-9 connector used for RS-232 serial communication and the DB-25 connector used for parallel ports.

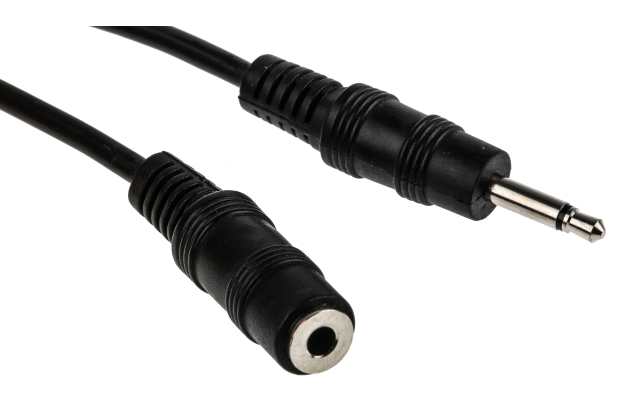

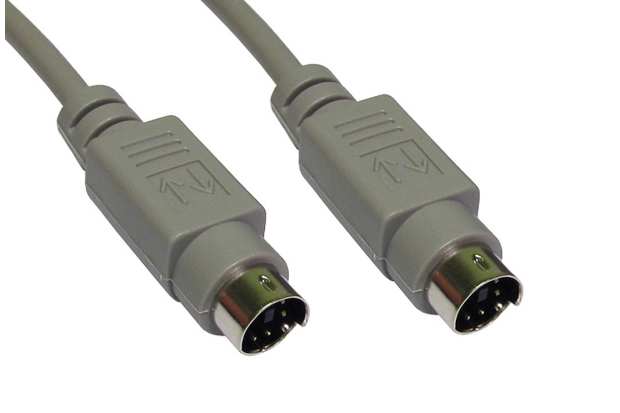

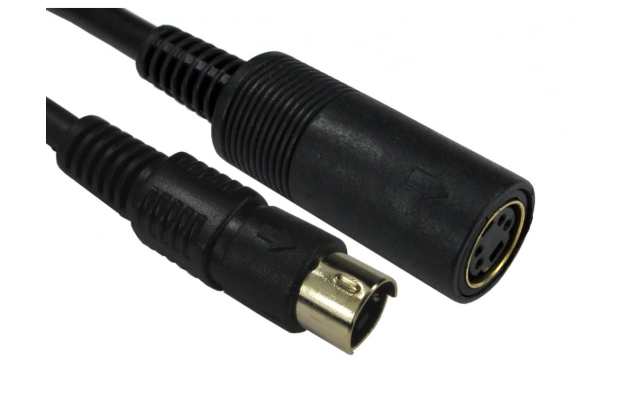

This broad category encompasses a wide range of computer cable connector types. Examples include:

• SATA connectors: Used for internal storage devices like hard drives and SSDs.
• PCIe connectors: Used for expansion cards like graphics cards and network adapters.
• Power connectors: Including pc power connector types like the 24-pin main power connector for power supply units.

These connectors are essential for establishing network connections and communication. Common types include:

• RJ45 connectors: Used with Ethernet cables for wired networking.
• RJ11 connectors: Used for telephone lines and DSL connections.
• Fibre optic connectors: Used to connect fibre optic cables for high-speed data transmission.
