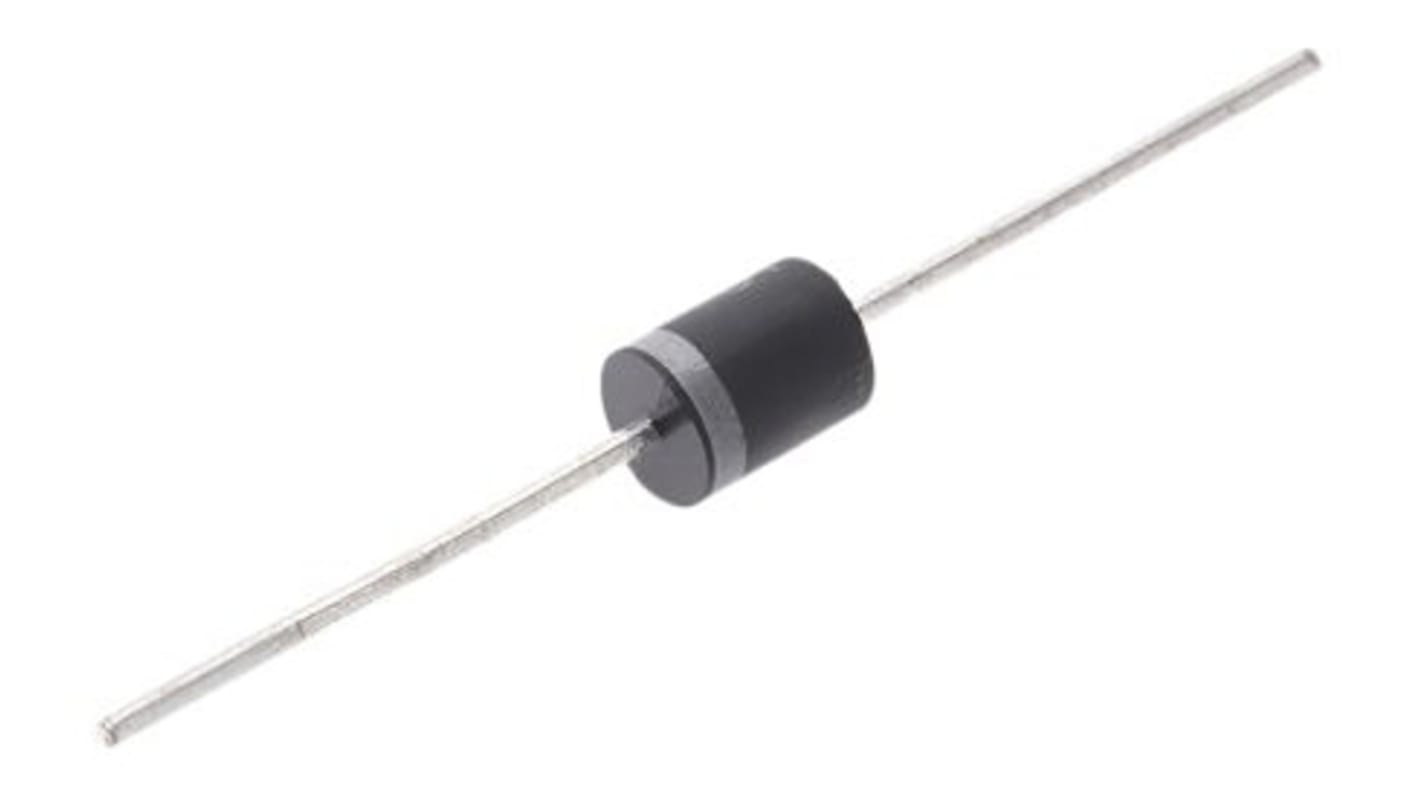

STMicroelectronics, 24V Zener Diode 5 W Through Hole 2-Pin R6
- RS Stock No.:
- 190-6756
- Mfr. Part No.:
- LDP24A
- Brand:
- STMicroelectronics
On back order for despatch 06/11/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Tape of 100)
$3.599
(exc. GST)
$3.959
(inc. GST)
| Units | Per unit | Per Tape* |
| 100 - 400 | $3.599 | $359.90 |
| 500 + | $3.239 | $323.90 |
| *price indicative | ||
- RS Stock No.:
- 190-6756
- Mfr. Part No.:
- LDP24A
- Brand:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
Transient voltage suppressor diodes especially useful in protecting integrated circuits, MOS, hybrids and other overvoltages sensitive semiconductors and components.
Transient Voltage Suppressor Diode Especially Designed For Load Dump Protection
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 24V |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 5 W |
| Package Type | R6 |
| Pin Count | 2 |
| Maximum Reverse Leakage Current | 300µA |
| Dimensions | 9.1 (Dia.) x 9.1mm |
| Forward Voltage | 0.9V |
| Forward Current | 10A |
| Maximum Operating Temperature | +175 °C |
