- RS Stock No.:
- 464-757
- Mfr. Part No.:
- NC5FDL1
- Brand:
- Neutrik
3 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each
$22.14
(exc. GST)
$24.35
(inc. GST)
Units | Per unit |
1 - 14 | $22.14 |
15 - 49 | $21.92 |
50 - 99 | $21.43 |
100 + | $20.86 |
- RS Stock No.:
- 464-757
- Mfr. Part No.:
- NC5FDL1
- Brand:
- Neutrik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- LI
Product Details

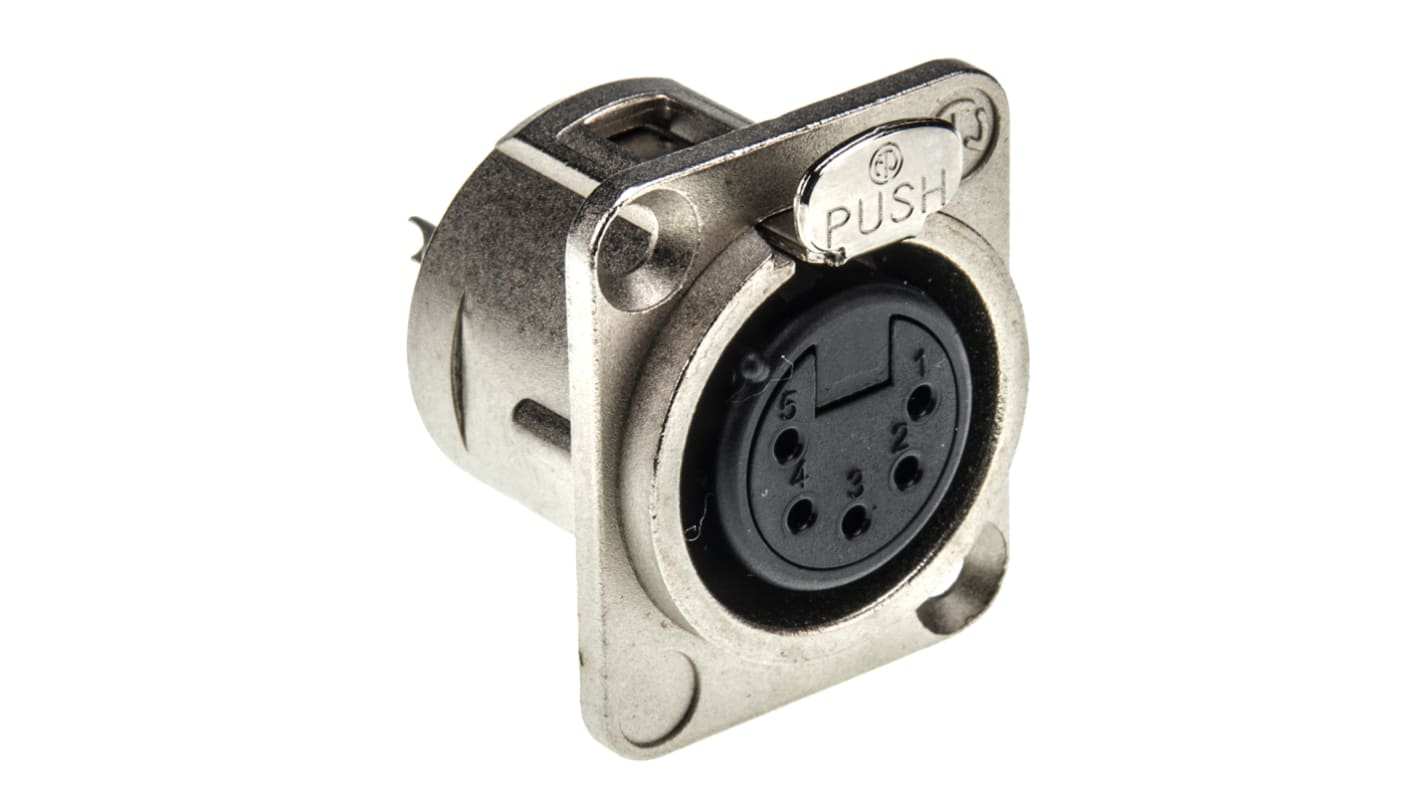

Neutrik XLR Connector
The Neutrik 5-contacts female XLR connector has a voltage rating of 50V and a current rating of 7.5A. This connector has a gold over nickel plating. This panel-mount XLR connector can be mounted in either the front or rear of a panel. With a simple screw mount frame, this XLR connector is easy to install and features a locking mechanism that ensures a reliable mating.
Features and Benefits
Delivers balanced microphone and line-level signals over long distances
Metal shell offers RF protection
Operating temperature ranging between -30°C and +80°C
Robust "D" metal shell
Solder cups for easy termination
Metal shell offers RF protection
Operating temperature ranging between -30°C and +80°C
Robust "D" metal shell
Solder cups for easy termination
Certifications
UL approved
Specifications
Attribute | Value |
---|---|
Number of Contacts | 5 |
Gender | Female |
Mounting Type | Panel Mount |
Body Orientation | Straight |
Contact Plating | Gold over Nickel |
Housing Material | Zinc |
Termination Method | Solder |
Current Rating | 7.5A |
Voltage Rating | 50 V |
Contact Material | Brass |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +80°C |
