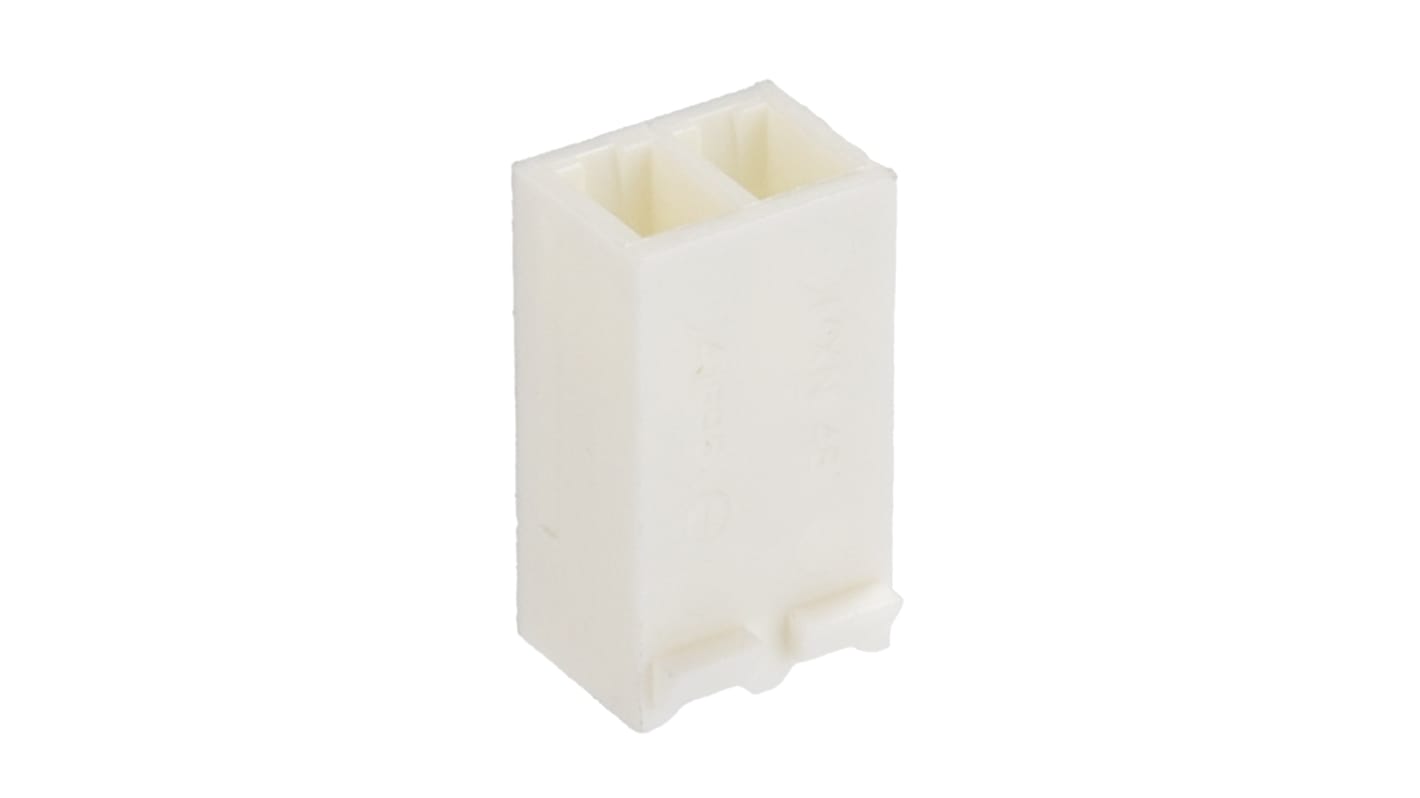

Molex, KK 396 Female Connector Housing, 3.96mm Pitch, 2 Way, 1 Row

RS Stock No.:: 679-5149
Mfr. Part No.:: 09-50-8021
Brand:: Molex

Molex, KK 396 Female Connector Housing, 3.96mm Pitch, 2 Way, 1 Row

Bulk discount available

Subtotal (1 pack of 10 units)**

$1.71

(exc. GST)

$1.88

(inc. GST)

1230 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit	Per Pack**
10 - 240	$0.171	$1.71
250 - 990	$0.164	$1.64
1000 +	$0.157	$1.57

**price indicative

RS Stock No.:: 679-5149
Mfr. Part No.:: 09-50-8021
Brand:: Molex

Molex KK 396 Series Connector Housing, 3.96mm Pitch, PET Housing - 09-50-8021

This connector housing is designed to hold 2 contacts in a compact layout. Its strong construction and adaptability make it suitable for a range of electronic applications. The straight body orientation facilitates smooth integration into existing systems. It is particularly useful for cable mount scenarios, improving connections and enhancing the performance and reliability of electronic systems.

Features & Benefits

• Made from PET, providing durability and resistance to high temperatures
• Supports a pitch of 3.96mm for efficient space utilisation
• Female gender design, compatible with specific connector types
• Tailored for cable mount applications, simplifying the installation process
• Status active, indicating ongoing availability and support
• Locking mechanism to ensure secure connections across various conditions

Applications

• Compatible with KK 396 vertical and right-angle breakaway headers
• Suitable for power and wire-to-board
• Functions effectively with a variety of crimp terminals in the KK series

What types of headers are compatible with this housing?

It can be used with KK 396 vertical and right-angle breakaway headers, offering versatile connection options.

How does the material impact the housing's performance?

The PET material provides excellent resistance to heat and environmental factors, which enhances durability.

Is it easy to install in existing projects?

Yes, the cable mount design enables straightforward installation with minimal modifications required.

Can it be used in high-temperature environments?

Yes, the PET construction is designed to withstand elevated temperatures while retaining its structural integrity.

What ensures a secure connection with mating parts?

The integrated locking mechanism ensures a stable and reliable connection.

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

3.96mm Molex KK Range

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Number of Contacts	2
	Number of Rows	1
	Pitch	3.96mm
	Gender	Female
	Mounting Type	Cable Mount
	Series	KK 396
	For Use With	KK Connector
	Body Orientation	Straight
	Length	8.79mm
	Width	8.07mm
	Housing Material	PET
	Termination Method	Wire Hole

	Select all
	Brand Molex
	Number of Contacts 2
	Number of Rows 1
	Pitch 3.96mm
	Gender Female
	Mounting Type Cable Mount
	Series KK 396
	For Use With KK Connector
	Body Orientation Straight
	Length 8.79mm
	Width 8.07mm
	Housing Material PET
	Termination Method Wire Hole
