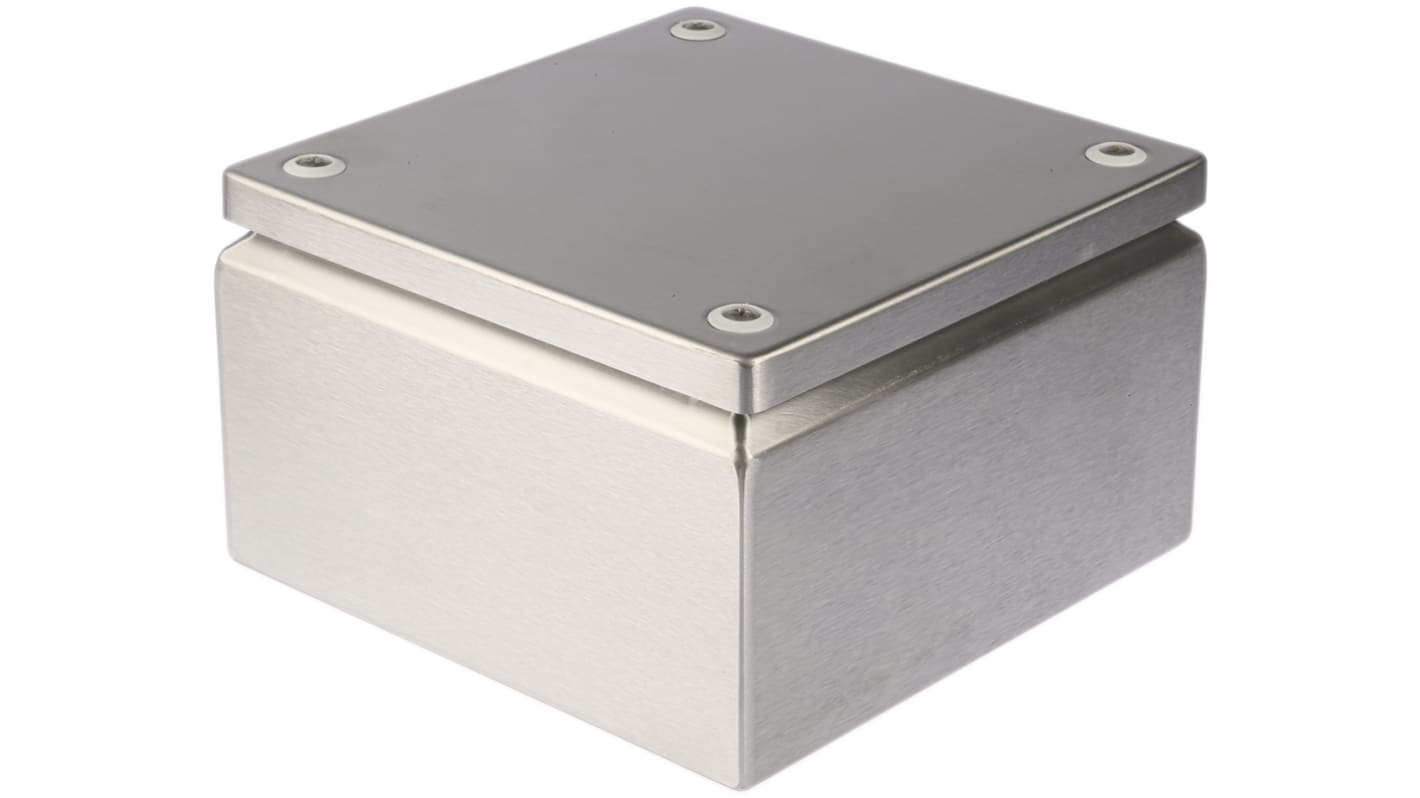

Rittal KL Series 304 Stainless Steel Terminal Box, IP66, 200 mm x 200 mm x 120mm

The KL Series enclosure from Rittal is folded and welded from a single piece of 1.25 mm stainless steel. The cover of the enclosure has a channel with a foamed-in PU seal providing IP66 protection. The inside of the enclosure has profiles with mounting holes for easy installation of a chassis plate or DIN rail.

Retaining cord
Profile strips on both sides of enclosure ensure maximum mounting depth is achieved
Facilities for mounting C rail and 'top hat' DIN rail
Polyurethane sealing gasket
Material 304 / 1.4301 stainless steel

UL, CSA, TUV, VDE

Use this durable terminal box from Rittal to store and protect your sensitive electrical equipment. Thanks to its IP66 (ingress protection) rating, this unit is fully protected against dust and high-pressure water jets. Its strong 304-grade stainless steel body material is also impact and corrosion-resistant, making this box a good choice for use in harsh industrial environments. The door locks in place via four screws that you can manually remove to access the contents of the box. This helps ensure optimal workplace safety and equipment security.

• Pre-drilled mounting holes make it easy to mount onto a chassis plate or DIN rail
• Strong PU (polyurethane) sealing gasket for protection against contaminants and moisture
• Compact dimensions of 200 (height) x 200 (width) x 120mm (depth) to save space when storing small equipment

• Electrical circuitry
• Medical equipment
• Industrial wires and cables

The interior of this terminal box has mounting bosses that allow you to securely screw components into place, ensuring that they stay firmly in position inside the box.
