- RS Stock No.:
- 768-5655
- Mfr. Part No.:
- SRN3315K SR2-SRN3315K
- Brand:
- ABB
3 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$391.01
(exc. GST)
$430.11
(inc. GST)
Units | Per unit |
1 - 5 | $391.01 |
6 + | $381.53 |
- RS Stock No.:
- 768-5655
- Mfr. Part No.:
- SRN3315K SR2-SRN3315K
- Brand:
- ABB
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

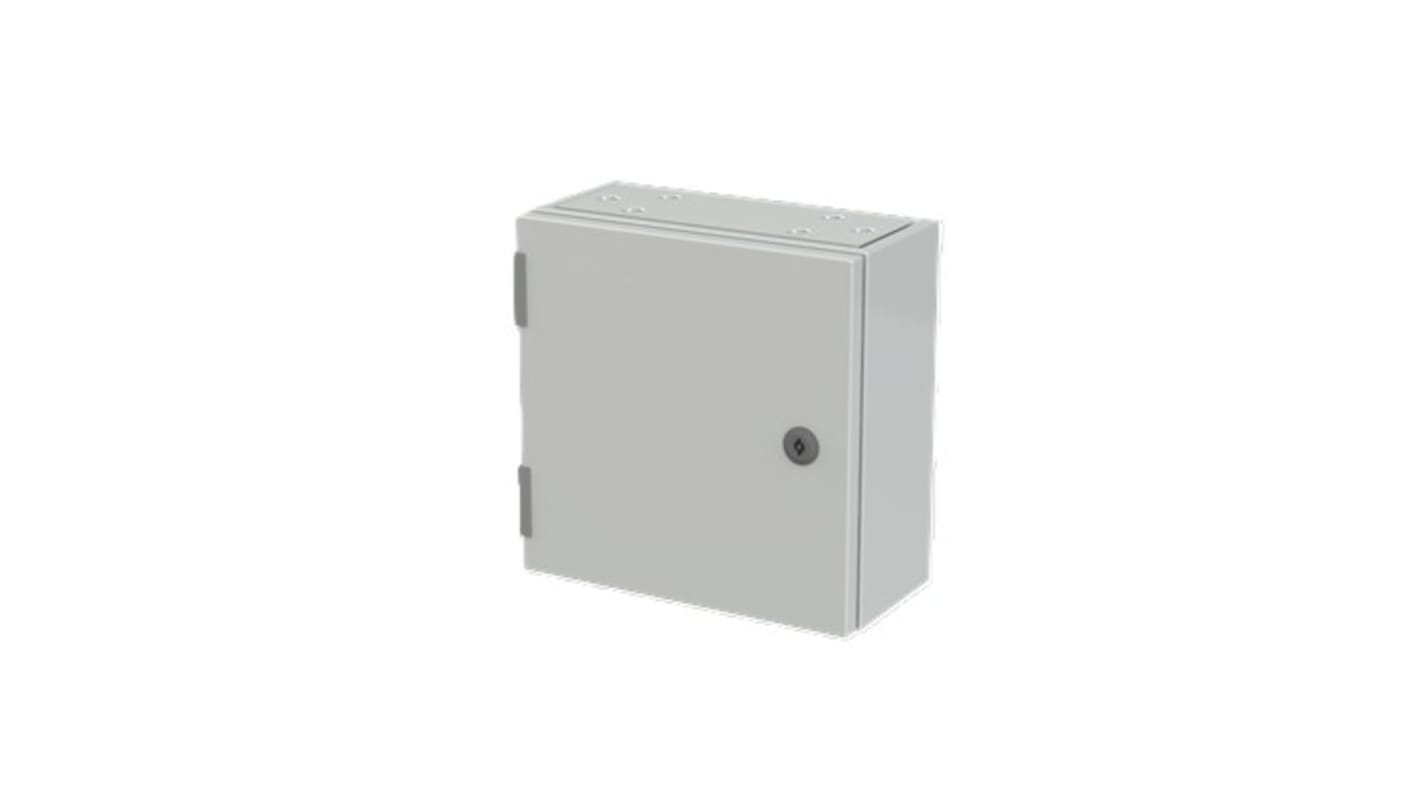

SR2 Monobloc Enclosure
The range of ABB IP65 rated SR2 monobloc enclosures are made from steel. The wall-mounted enclosures are designed to fulfil the typical needs of the builder or installer of control panels.
Features and Benefits
• Can be stacked vertically, allowing two switchboard sections separate from each other to be made inside a single structure. This is done by removing the fairlead plates and inserting an optional IP65 sealing gasket. Assembly is then done by using the same holes used for the fairlead plates
• Supplied with mounting plate
• IP65 means that the wall boxes are protects against dust and powerful water jets
• Fitted with two cable entry flanges (one for the top and one for the bottom side) so that the whole enclosure is made reversible, offering the possibility of having door opening either on the right or left
• Available with a solid door or a glass door
• Wide range of sizes available
• Supplied with mounting plate
• IP65 means that the wall boxes are protects against dust and powerful water jets
• Fitted with two cable entry flanges (one for the top and one for the bottom side) so that the whole enclosure is made reversible, offering the possibility of having door opening either on the right or left
• Available with a solid door or a glass door
• Wide range of sizes available
Features and Benefits
The SR2 Monobloc wall-mounted enclosures are ideal for making switchgear and control gear switchboards for various industrial machines: from large machinery with automated production lines, down to the typical installations of on-board machine switchboards, boilers and heating plants.
Standards
CEI EN 62208, CEI EN 60439-1, IEC61439-1-2.
Approvals
UL (Underwriters Laboratories) and CSA (Canadian Standards Association) Type 12 marks.
Specifications
Attribute | Value |
---|---|
External Height | 300 mm |
External Width | 300 mm |
External Depth | 150mm |
Body Material | Steel |
Transparent Door | No |
IP Rating | IP65 |
Chassis Plate | Yes |
Door Lock Type | Key |
Gland Plate | No |
Colour | Grey |
Series | SR2 Monobloc |
Fixing Kit | No |
External Mounting Type | Bracket |
Internal Mounting Type | Panel |
