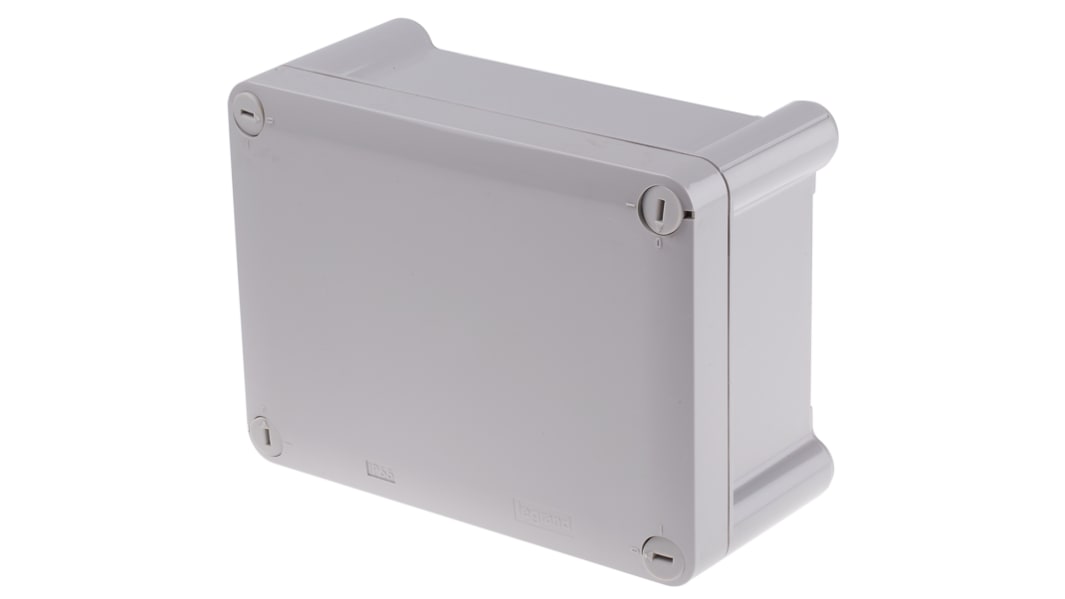

Legrand Atlantic Series Polycarbonate Wall Box, IP66, 175 mm x 130 mm x 81mm

RS Stock No.:: 705-5666
Mfr. Part No.:: 0 350 17
Brand:: Legrand

Legrand Atlantic Series Polycarbonate Wall Box, IP66, 175 mm x 130 mm x 81mm

Stock check temporarily unavailable - call for stock availability

Added

Price (ex. GST) Each

$105.37

(exc. GST)

$115.91

(inc. GST)

Units	Per unit
1 - 9	$105.37
10 - 19	$101.15
20 +	$96.94

RS Stock No.:: 705-5666
Mfr. Part No.:: 0 350 17
Brand:: Legrand

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: PL

Product Details

Legrand Plastic Enclosures

Legrand industrial enclosures are made from self-extinguishing light grey polypropylene and are halogen free. Two versions are available, offering either IP55/IK07 or IP66/IK08 protection. These enclosures conform to EN 60695 2-1.

Features and Benefits

Smooth sided housing
Equipment may be installed on a rail or solid plate
1/4-turn faceplate opening and closing using a flat screwdriver
Light grey RAL 7035
Polypropylene box and cover
Halogen free
Self-extinguishing 750° C
Temperature rating: –25° C to +40° C
IP55/IK07, stock nos. 705-5656, 705-5653, 705-5650 & 705-5669
IP66/IK08, stock nos. 705-5662, 705-5675 & 705-5666
Detachable clip-on cover retainer except stock no. 705-5697

Note

Available separately: set of 4 mounting lugs, stock no. 507-0521 and pair of lid hinges, stock no. 705-5688.

Standards

Conforms to EN 60695 2-1.

Specifications

Attribute	Value
External Height	175 mm
External Width	130 mm
External Depth	81mm
Body Material	Polycarbonate
Transparent Door	No
IP Rating	IP66
Chassis Plate	No
Door Lock Type	Quarter Turn
Gland Plate	No
Colour	Grey
Series	Atlantic
Fixing Kit	No
Internal Mounting Type	Perforated Rail
External Mounting Type	Bracket
