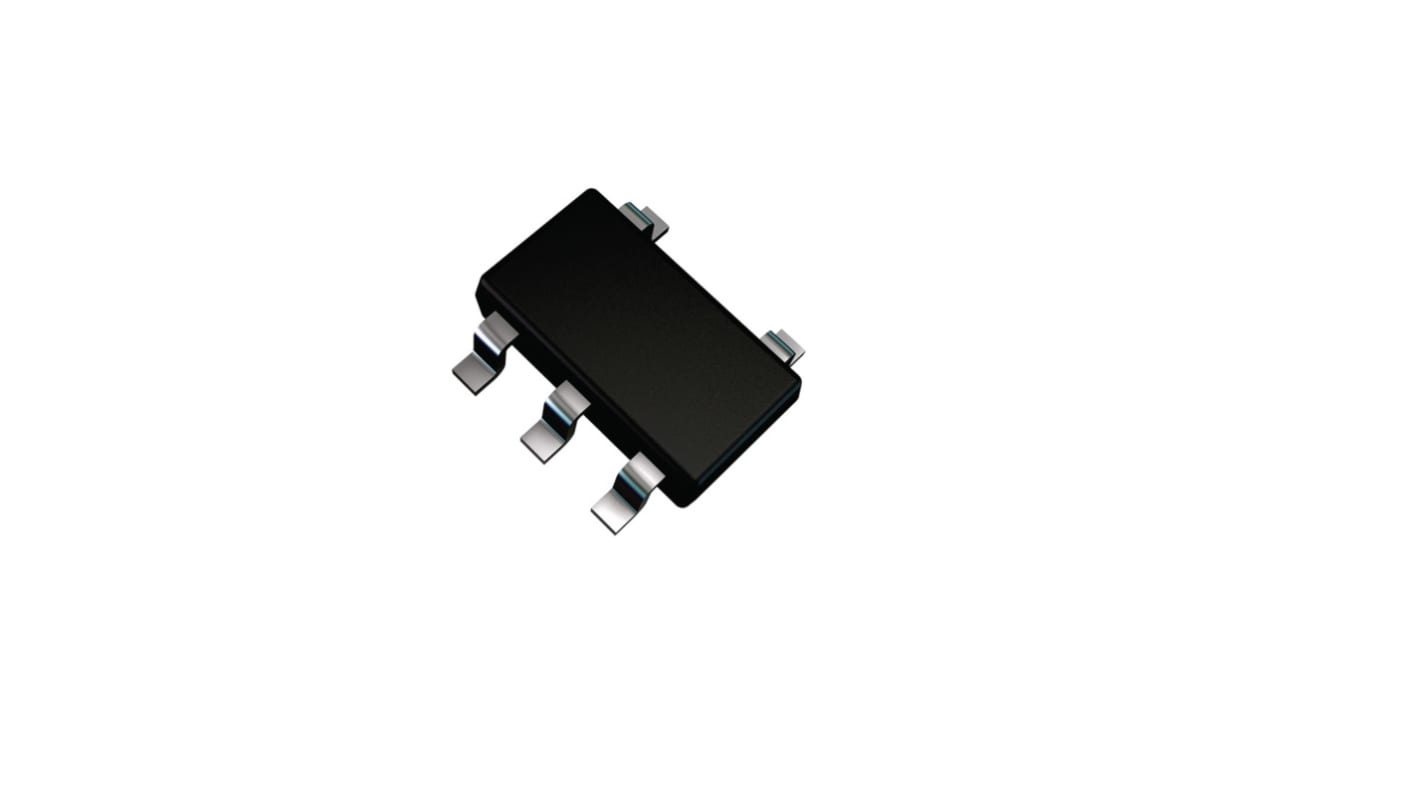

DiodesZetex Voltage Supervisor 5V max. 5-Pin SOT25, APX803L-33W5-7
- RS Stock No.:
- 213-9132
- Mfr. Part No.:
- APX803L-33W5-7
- Brand:
- DiodesZetex
On back order for despatch 10/12/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 3000)
$0.226
(exc. GST)
$0.249
(inc. GST)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | $0.226 | $678.00 |
| 6000 - 9000 | $0.22 | $660.00 |
| 12000 + | $0.217 | $651.00 |
| *price indicative | ||
- RS Stock No.:
- 213-9132
- Mfr. Part No.:
- APX803L-33W5-7
- Brand:
- DiodesZetex
Technical data sheets
Legislation and Compliance
Product Details
The DiodesZetex APX803L series is a micro power voltage detector. It provides wide range of detection voltage level. It is used for microprocessor supervisory circuits to monitor the power supplies in microprocessor and digital systems.
Open-drain output with active low pin
Built-in recovery delay time options
Built-in recovery delay time options
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Voltage Supervisor Type | Microprocessor Supervisory Circuit |
| Number of Supervisors | 1 |
| Manual Reset | Yes |
| Maximum Reset Threshold Voltage | 5V |
| Package Type | SOT25 |
| Pin Count | 5 |
