Renesas Electronics ICL7660CPAZ, 5-Channel Charge Pump, Regulator, 20 mA, 1.5 V 10 kHz, PDIP 8-Pin
- RS Stock No.:
- 921-5551
- Mfr. Part No.:
- ICL7660CPAZ
- Brand:
- Renesas Electronics

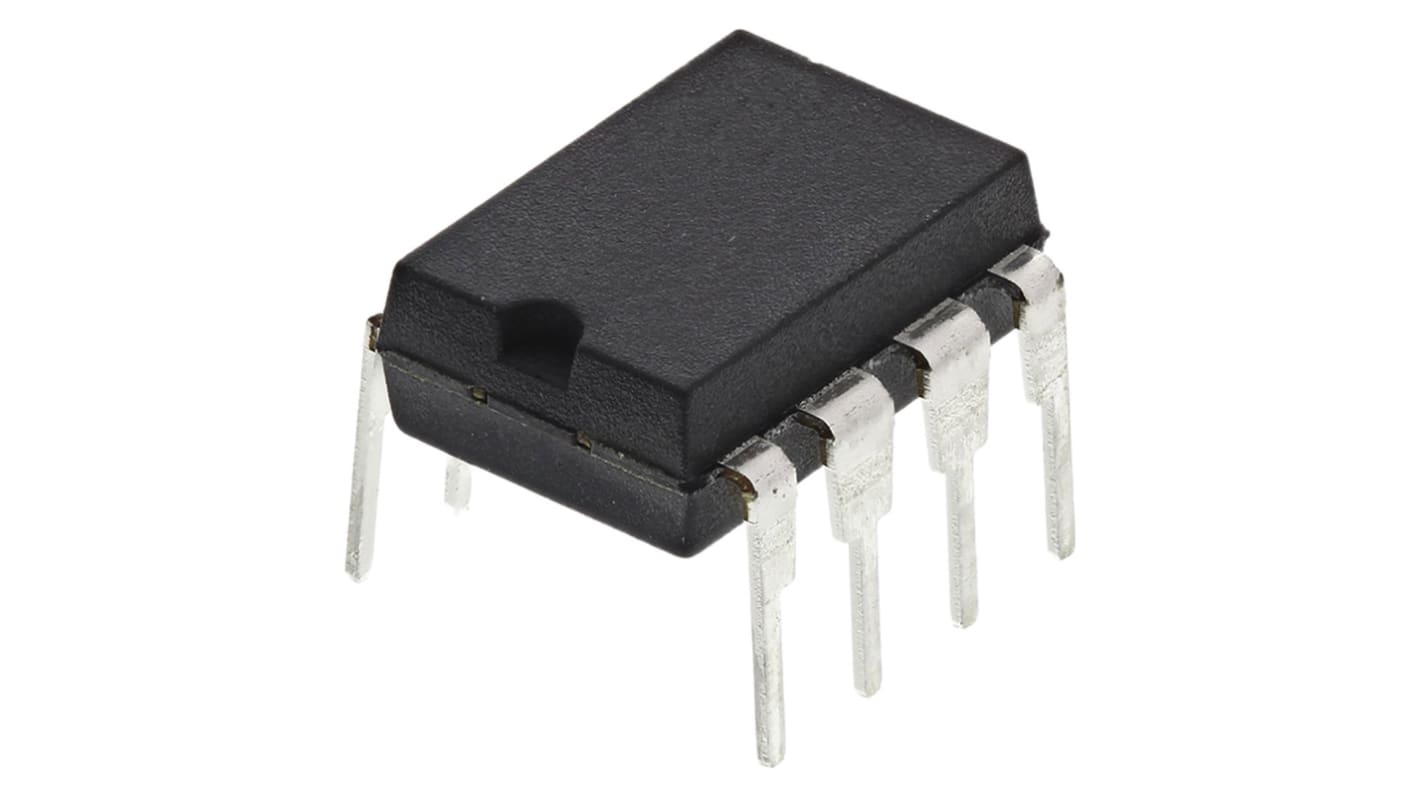

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
$15.29
(exc. GST)
$16.82
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- 920 unit(s) shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 10 | $3.058 | $15.29 |
| 15 - 70 | $3.008 | $15.04 |
| 75 + | $2.472 | $12.36 |
*price indicative
- RS Stock No.:
- 921-5551
- Mfr. Part No.:
- ICL7660CPAZ
- Brand:
- Renesas Electronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Regulator | |
| Regulator Type | Charge Pump | |
| Number of Outputs | 5 | |
| Output Voltage | 1.5 V | |
| Switching Frequency | 10kHz | |
| Mount Type | Through Hole | |
| Polarity | Inverting | |
| Package Type | PDIP | |
| Pin Count | 8 | |
| Output Current | 20mA | |
| Output Type | Adjustable | |
| Switching Regulator | Yes | |
| Length | 10.16mm | |
| Series | ICL7660 | |
| Standards/Approvals | RoHS | |
| Width | 7.11 mm | |
| Height | 4.95mm | |
| Minimum Operating Temperature | 0°C | |
| Minimum Input Voltage | 1.5V | |
| Maximum Input Voltage | 12V | |
| Maximum Operating Temperature | 70°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Regulator | ||
Regulator Type Charge Pump | ||
Number of Outputs 5 | ||
Output Voltage 1.5 V | ||
Switching Frequency 10kHz | ||
Mount Type Through Hole | ||
Polarity Inverting | ||
Package Type PDIP | ||
Pin Count 8 | ||
Output Current 20mA | ||
Output Type Adjustable | ||
Switching Regulator Yes | ||
Length 10.16mm | ||
Series ICL7660 | ||
Standards/Approvals RoHS | ||
Width 7.11 mm | ||
Height 4.95mm | ||
Minimum Operating Temperature 0°C | ||
Minimum Input Voltage 1.5V | ||
Maximum Input Voltage 12V | ||
Maximum Operating Temperature 70°C | ||
Automotive Standard No | ||
Charge Pump Converters, Intersil
Isolated Power Supply, Intersil
