Microchip TC7660EPA, 5-Channel Charge Pump, Regulator, 20 mA, 10V, -1.5 V 10 kHz, PDIP 8-Pin
- RS Stock No.:
- 144-5828
- Mfr. Part No.:
- TC7660EPA
- Brand:
- Microchip

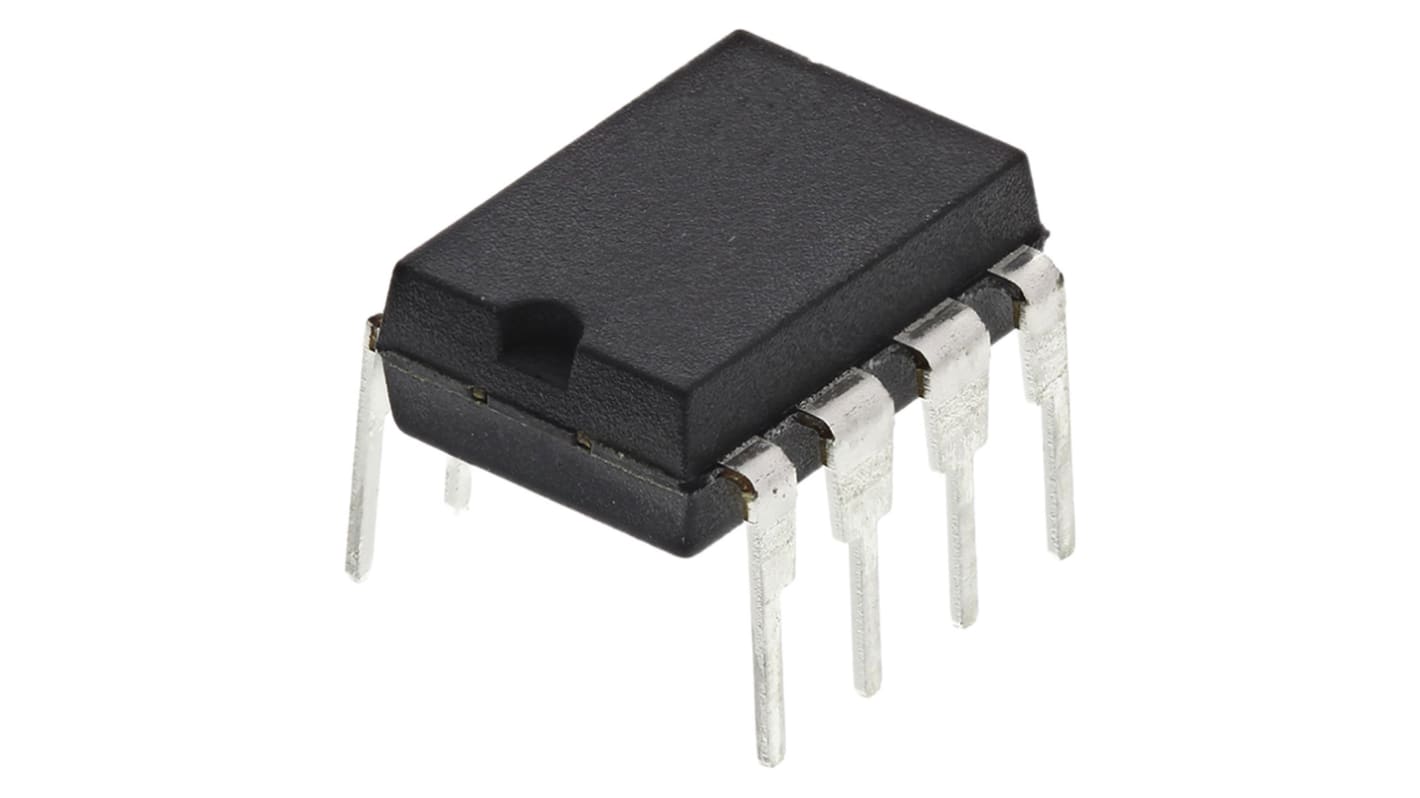

This image is representative of the product range
Stock information currently inaccessible
- RS Stock No.:
- 144-5828
- Mfr. Part No.:
- TC7660EPA
- Brand:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Regulator | |
| Regulator Type | Charge Pump | |
| Switching Frequency | 10kHz | |
| Polarity | Inverting | |
| Mount Type | Through Hole | |
| Quiescent Current | 20μA | |
| Package Type | PDIP | |
| Output Current | 20mA | |
| Pin Count | 8 | |
| Switching Regulator | Yes | |
| Series | TC7660 | |
| Standards/Approvals | No | |
| Height | 4.45mm | |
| Length | 10.16mm | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Input Voltage | 10V | |
| Minimum Input Voltage | 1.5V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Regulator | ||
Regulator Type Charge Pump | ||
Switching Frequency 10kHz | ||
Polarity Inverting | ||
Mount Type Through Hole | ||
Quiescent Current 20μA | ||
Package Type PDIP | ||
Output Current 20mA | ||
Pin Count 8 | ||
Switching Regulator Yes | ||
Series TC7660 | ||
Standards/Approvals No | ||
Height 4.45mm | ||
Length 10.16mm | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Input Voltage 10V | ||
Minimum Input Voltage 1.5V | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
Charge Pump DC-to-DC Converters, Microchip
Charge Pumps, Microchip
