DiodesZetex AP2120N-1.8TRG1, 1 Low Dropout Voltage, Voltage Regulator, 1.8 V 3-Pin, SOT-23

RS Stock No.:: 828-3521
Mfr. Part No.:: AP2120N-1.8TRG1
Brand:: DiodesZetex

DiodesZetex AP2120N-1.8TRG1, 1 Low Dropout Voltage, Voltage Regulator, 1.8 V 3-Pin, SOT-23

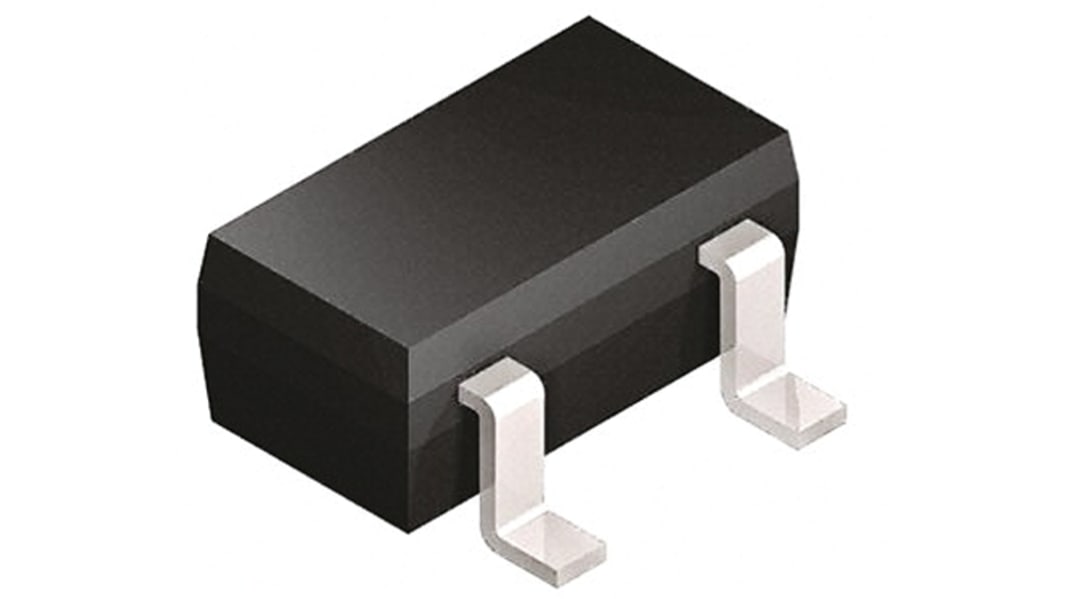

This image is representative of the product range

68600 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (In a Pack of 100)

$0.165

(exc. GST)

$0.181

(inc. GST)

Units	Per unit	Per Pack*
100 - 700	$0.165	$16.50
800 - 1400	$0.165	$16.50
1500 +	$0.158	$15.80
*price indicative

RS Stock No.:: 828-3521
Mfr. Part No.:: AP2120N-1.8TRG1
Brand:: DiodesZetex

AP2120 HIGH SPEED, EXTREMELY LOW NOISE LDO REGULATOR
ESD Control Selection Guide V1

Attribute	Value
Regulator Type	Low Dropout Voltage
Output Voltage	1.8 V
Number of Outputs	1
Line Regulation	16 mV
Load Regulation	40 mV
Accuracy	±2%
Mounting Type	Surface Mount
Polarity	Positive
Quiescent Current	50µA
Package Type	SOT-23
Pin Count	3
Output Type	Fixed
Dimensions	3 x 1.4 x 1.1mm
Height	1.1mm
Maximum Operating Temperature	+85 °C
Minimum Input Voltage	2 V
Minimum Operating Temperature	-40 °C
Maximum Input Voltage	6 V
Width	1.4mm
Length	3mm

DiodesZetex AP2120N-1.8TRG1, 1 Low Dropout Voltage, Voltage Regulator, 1.8 V 3-Pin, SOT-23

LDO (Low Dropout) Linear Voltage Regulators, 1.8V Output, Diodes Inc
