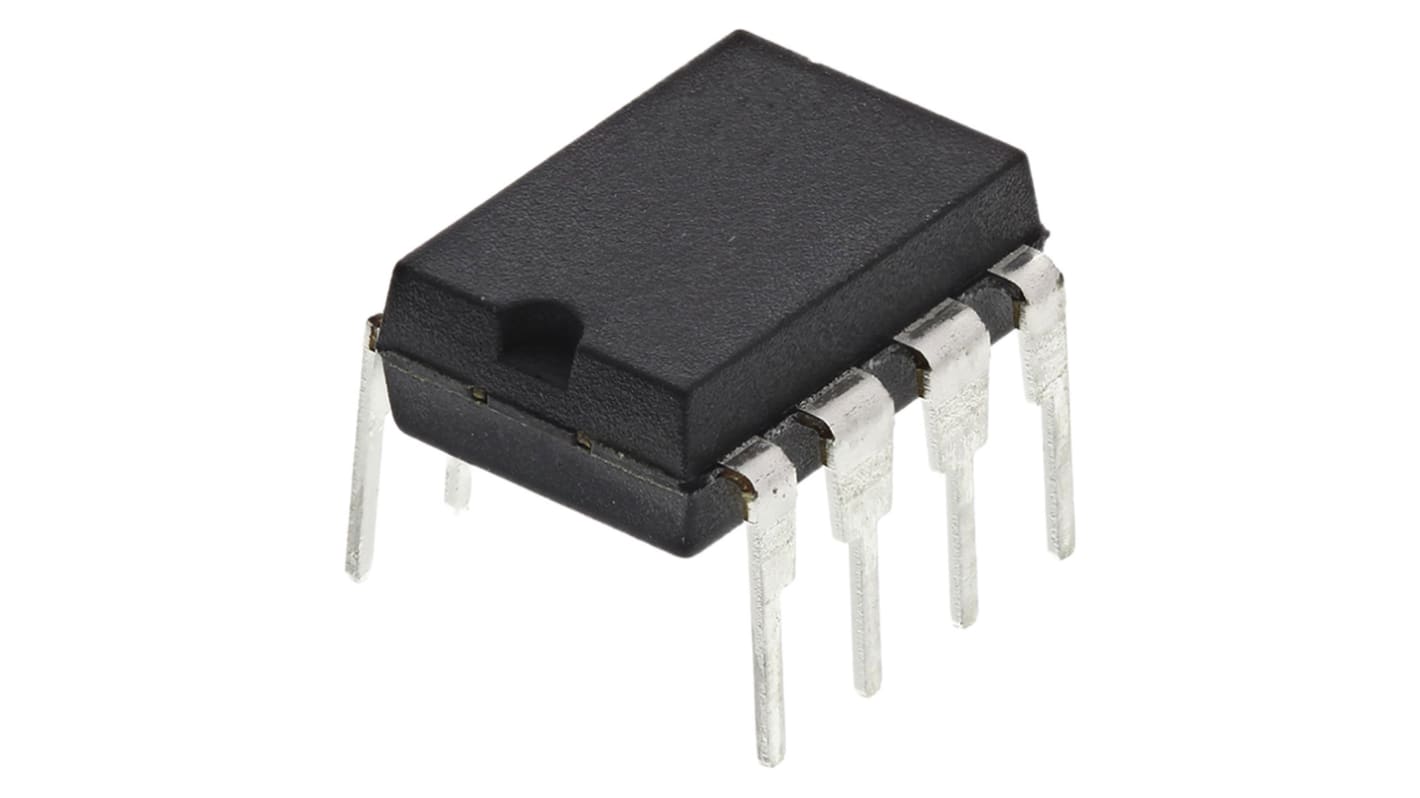

Microchip TC7660SEPA Charge Pump, Regulator 20mA, -1.5 → -12 V, 45 kHz 8-Pin, PDIP
- RS Stock No.:
- 774-7882
- Mfr. Part No.:
- TC7660SEPA
- Brand:
- Microchip
On back order for despatch 18/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Bag of 5)
$1.998
(exc. GST)
$2.198
(inc. GST)
| Units | Per unit | Per Bag* |
| 5 - 10 | $1.998 | $9.99 |
| 15 - 25 | $1.966 | $9.83 |
| 30 + | $1.934 | $9.67 |
| *price indicative | ||
- RS Stock No.:
- 774-7882
- Mfr. Part No.:
- TC7660SEPA
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
Charge Pump DC-to-DC Converters, Microchip
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Charge Pumps, Microchip
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 20mA |
| Regulator Type | Charge Pump |
| Output Voltage | -1.5 → -12 V |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 8 |
| Maximum Switching Frequency | 45 kHz |
| Dimensions | 10.16 x 6.6 x 4.06mm |
| Height | 4.06mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 6.6mm |
| Length | 10.16mm |
