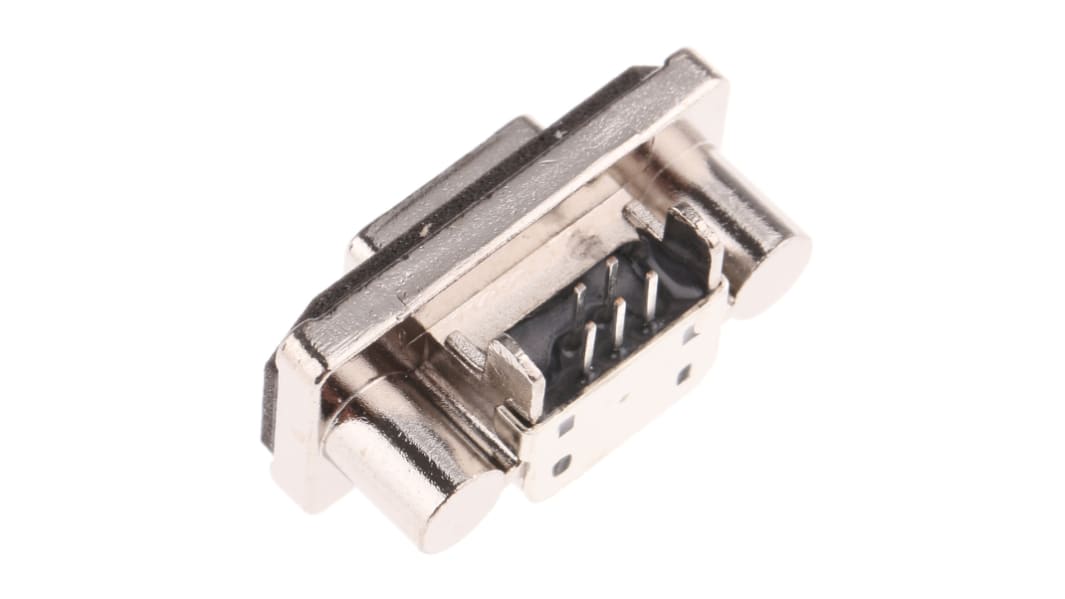

Amphenol ICC Right Angle, Through Hole, Socket Type Micro AB 2.0 USB Connector

RS Stock No.:: 725-6017
Mfr. Part No.:: MUSBE15134
Brand:: Amphenol ICC

Amphenol ICC Right Angle, Through Hole, Socket Type Micro AB 2.0 USB Connector

This image is representative of the product range

Stock check temporarily unavailable - call for stock availability

Added

Price (ex. GST) Each

$21.08

(exc. GST)

$23.19

(inc. GST)

Units	Per unit
1 - 19	$21.08
20 - 39	$20.72
40 +	$20.25

RS Stock No.:: 725-6017
Mfr. Part No.:: MUSBE15134
Brand:: Amphenol ICC

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

USB Connectors, Harsh Environment - MUSB Series

Amphenol MUSB series USB connectors provide the ideal solution for data transfer in harsh environments that demand a robust and reliable connector . These USB connectors are underwater submersible rather than just water resistant in both mated and unmated conditions. Suitable for industrial, military communications, mobile and other demanding connector situations.

Features and Benefits:
• IP67 sealed in mated and unmated conditions
• Die cast connector shell with nickel plated finish
• UL94V-0 Black Housing
• Contact plating gold
• Current rating 1.5 Amps
• Voltage rating 100 Vdc @ -25°C → +85°C
• Dielectric withstanding voltage 500Vac, RMS, 60Hz 1 minute
• Operating temperature range -40°C → +105°C

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Amphenol USB & RJ45 Connectors, Harsh Environment

Specifications

Attribute	Value
Gender	Female
Mounting Type	Through Hole
USB Type	Micro AB
Termination Method	Solder
USB Version	2.0
Body Orientation	Right Angle
Series	MUSB
Contact Material	Phosphor Bronze
Minimum Operating Temperature	-40.0°C
Maximum Operating Temperature	+85°C
