Samtec Right Angle, Through Hole Female- 1 Port Type Mini USB Type B IP68 USB Connector USB 2.0
- RS Stock No.:
- 208-1565
- Mfr. Part No.:
- SPM-05-S-B-RA-PF
- Brand:
- Samtec

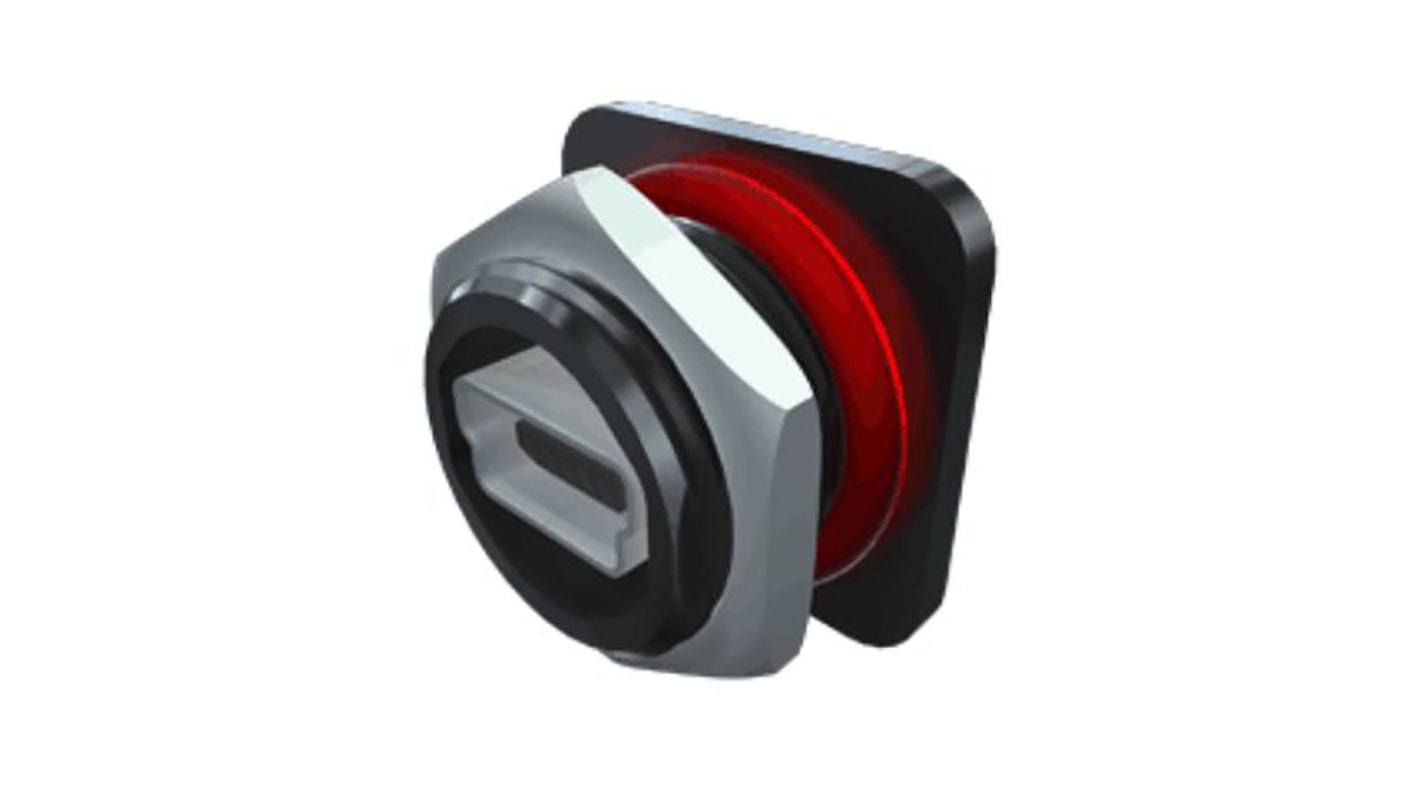

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 35 units)*
$249.165
(exc. GST)
$274.085
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tube* |
|---|---|---|
| 35 - 35 | $7.119 | $249.17 |
| 70 - 105 | $6.941 | $242.94 |
| 140 + | $6.834 | $239.19 |
*price indicative
- RS Stock No.:
- 208-1565
- Mfr. Part No.:
- SPM-05-S-B-RA-PF
- Brand:
- Samtec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | USB Connector | |
| USB Type | Mini USB Type B | |
| Mount Type | Through Hole | |
| Current | 2A | |
| USB Specification | USB 2.0 | |
| IP Rating | IP68 | |
| Orientation | Right Angle | |
| Connector Gender | Female | |
| Number of Ports | 1 | |
| Voltage | 30V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Contact Material | Phosphor Bronze | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Series | SPM | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type USB Connector | ||
USB Type Mini USB Type B | ||
Mount Type Through Hole | ||
Current 2A | ||
USB Specification USB 2.0 | ||
IP Rating IP68 | ||
Orientation Right Angle | ||
Connector Gender Female | ||
Number of Ports 1 | ||
Voltage 30V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Contact Material Phosphor Bronze | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Series SPM | ||
The Samtec IP68 sealed mini USB port has 5 pins using with right angle termination.
Operating temperature range -55 °C to +125 °C
Black LCP insulator material
