Lapp Round Data Cable, 0.75 mm2, 28 Cores, 18, Screened, 100m, Grey Sheath
- RS Stock No.:
- 280-2815
- Mfr. Part No.:
- 11139535
- Brand:
- Lapp
On back order for despatch 02/07/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) 1 Reel of 100 Metre(s)
$6,360.03
(exc. GST)
$6,996.03
(inc. GST)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | $6,360.03 | $63.60 |
| *price indicative | ||
- RS Stock No.:
- 280-2815
- Mfr. Part No.:
- 11139535
- Brand:
- Lapp
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

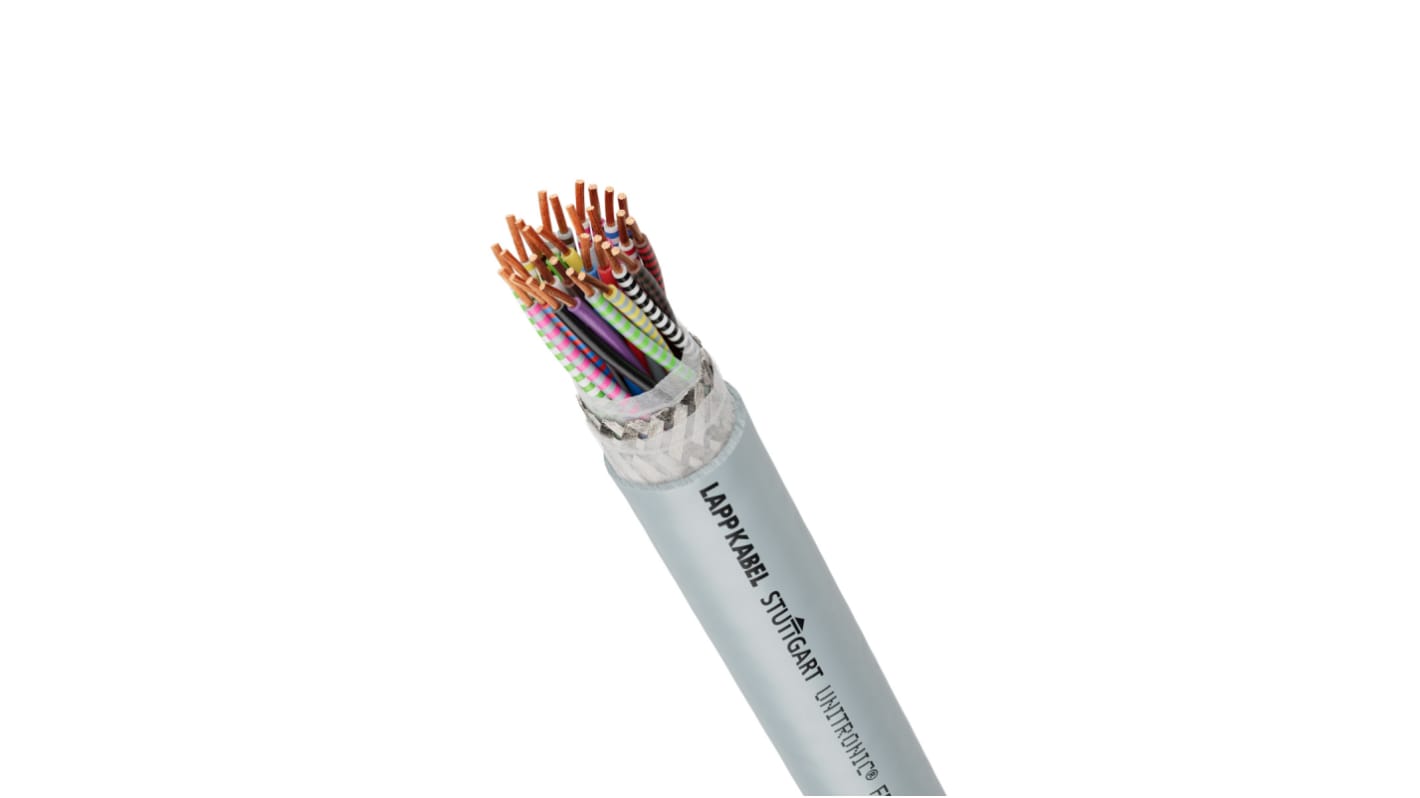

The Lapp data cable is Suitable for use in measuring, control and regulating circuits, Linear robots, automated handling equipment. It has Sophisticated design for high-performance chain/ track use. It is used in chain or carrier. It is suitable for torsional applications which are typical for the loop in wind turbine generators (WTG).
Extra fine wire strand made of bare copper wires
Core insulation based on Polyolefin
TP structure
Non woven wrapping
Tinned copper braiding
Outer sheath made of special PUR compound
Outer sheath colour grey
Core insulation based on Polyolefin
TP structure
Non woven wrapping
Tinned copper braiding
Outer sheath made of special PUR compound
Outer sheath colour grey
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.75 mm2 |
| Number of Cores | 28 |
| American Wire Gauge | 18 |
| Screened/Unscreened | Screened |
| Length | 100m |
| Sheath Colour | Grey |
| Cable Type | Data |
| Cable Shape | Round |
