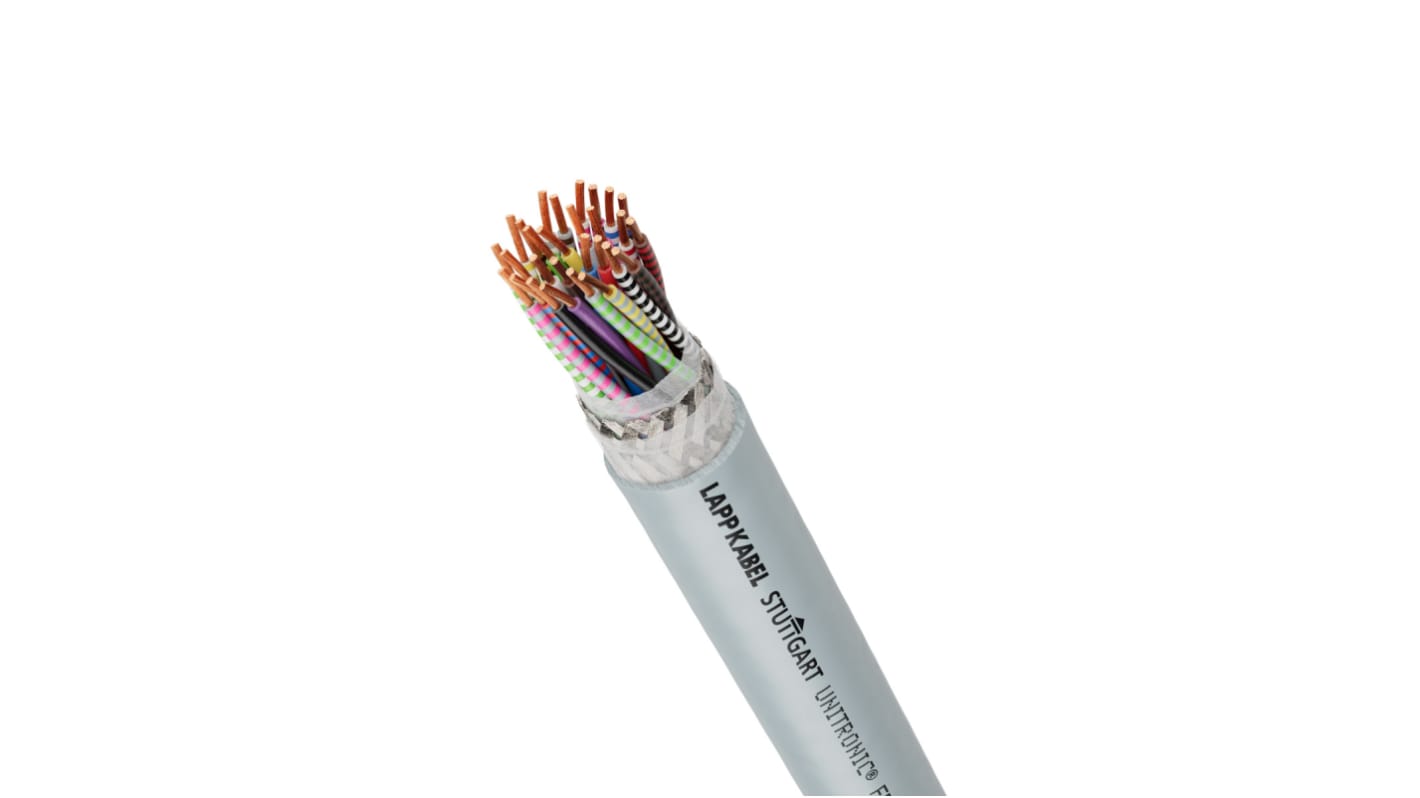

Lapp UNITRONIC FD CP (TP) plus A Series Data Cable 14 Pairs 28 Cores 0.50 mm² 100 m Grey Sheath Polyurethane

RS Stock No.:: 280-2812
Mfr. Part No.:: 11139528
Brand:: Lapp

Lapp UNITRONIC FD CP (TP) plus A Series Data Cable 14 Pairs 28 Cores 0.50 mm² 100 m Grey Sheath Polyurethane

Subtotal (1 reel of 100 metres)*

$6,968.08

(exc. GST)

$7,664.89

(inc. GST)

FREE delivery for orders over $80.00 ex GST

In Stock

1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	$6,968.08	$69.681

*price indicative

RS Stock No.:: 280-2812
Mfr. Part No.:: 11139528
Brand:: Lapp

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Product Type	Data Cable
	Number of Pairs	14
	Cross Sectional Area	0.50mm²
	Number of Cores	28
	Cable Length	100m
	Jacket Colour	Grey
	Outside Diameter	15.50mm
	Jacket Material	Polyurethane
	Conductor Type	Extra Fine
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	80°C
	Standards/Approvals	UL AWM Style 21576 (File No. E63634), UL 758 AWM I/II A/B (File No. E63634)
	Screened/Unscreened	Screened
	Series	UNITRONIC FD CP (TP) plus A
	Conductor Material	Bare Copper
	Fire Behaviour	Flame Retardant
	Voltage	500V

	Select all
	Brand Lapp
	Product Type Data Cable
	Number of Pairs 14
	Cross Sectional Area 0.50mm²
	Number of Cores 28
	Cable Length 100m
	Jacket Colour Grey
	Outside Diameter 15.50mm
	Jacket Material Polyurethane
	Conductor Type Extra Fine
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 80°C
	Standards/Approvals UL AWM Style 21576 (File No. E63634), UL 758 AWM I/II A/B (File No. E63634)
	Screened/Unscreened Screened
	Series UNITRONIC FD CP (TP) plus A
	Conductor Material Bare Copper
	Fire Behaviour Flame Retardant
	Voltage 500V

Datasheet - 11139528

COO (Country of Origin):: IT

LAPP UNITRONIC FD CP (TP) Plus A Series Data Cable, 28 Cores, 0.50mm² Cross Sectional Area - 11139528

This screened data cable is designed for industrial communication and control applications where durable, flexible signal transmission is required. It combines multiple pairs of fine conductors with a protective screen and a polyurethane outer sheath to operate across a wide temperature range in automated and harsh environments.

Features and Benefits:

• 28 cores enabling high-density signal distribution
• 14 pairs providing balanced twisted-pair signalling
• Extra fine conductors allowing enhanced Flex performance
• Bare copper conductors ensuring effective electrical continuity
• Flame-retardant jacket reducing fire propagation risk

Applications

• Suitable for factory automation communication links
• Used for multi-channel control cabinet wiring
• Ideal for signal distribution in robotics harnesses
• Can be used for industrial fieldbus and sensor networks
• Used with mobile machinery requiring flexible cabling

What temperature range can it operate within?

It functions reliably from -40°C up to a maximum of 80°C.

How is electrical screening implemented?

A continuous screen surrounds the pairs to reduce electromagnetic interference.

What is the outer sheath material and its benefit?

The jacket is polyurethane which provides enhanced flexibility and abrasion resistance.

What voltage rating is the cable designed for?

It is rated for operation at 500V.

Which recognised wiring approvals does it hold?

It meets UL AWM Style 21576 (File No. E63634) and UL 758 AWM I/II A/B (File No. E63634).
