- RS Stock No.:
- 171-4260
- Mfr. Part No.:
- SMF12A
- Brand:
- Littelfuse
Available for back order.
Added
Price (ex. GST) Each (In a Pack of 25)
$0.554
(exc. GST)
$0.609
(inc. GST)
Units | Per unit | Per Pack* |
25 - 725 | $0.554 | $13.85 |
750 - 1475 | $0.541 | $13.525 |
1500 + | $0.532 | $13.30 |
*price indicative |
- RS Stock No.:
- 171-4260
- Mfr. Part No.:
- SMF12A
- Brand:
- Littelfuse
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN

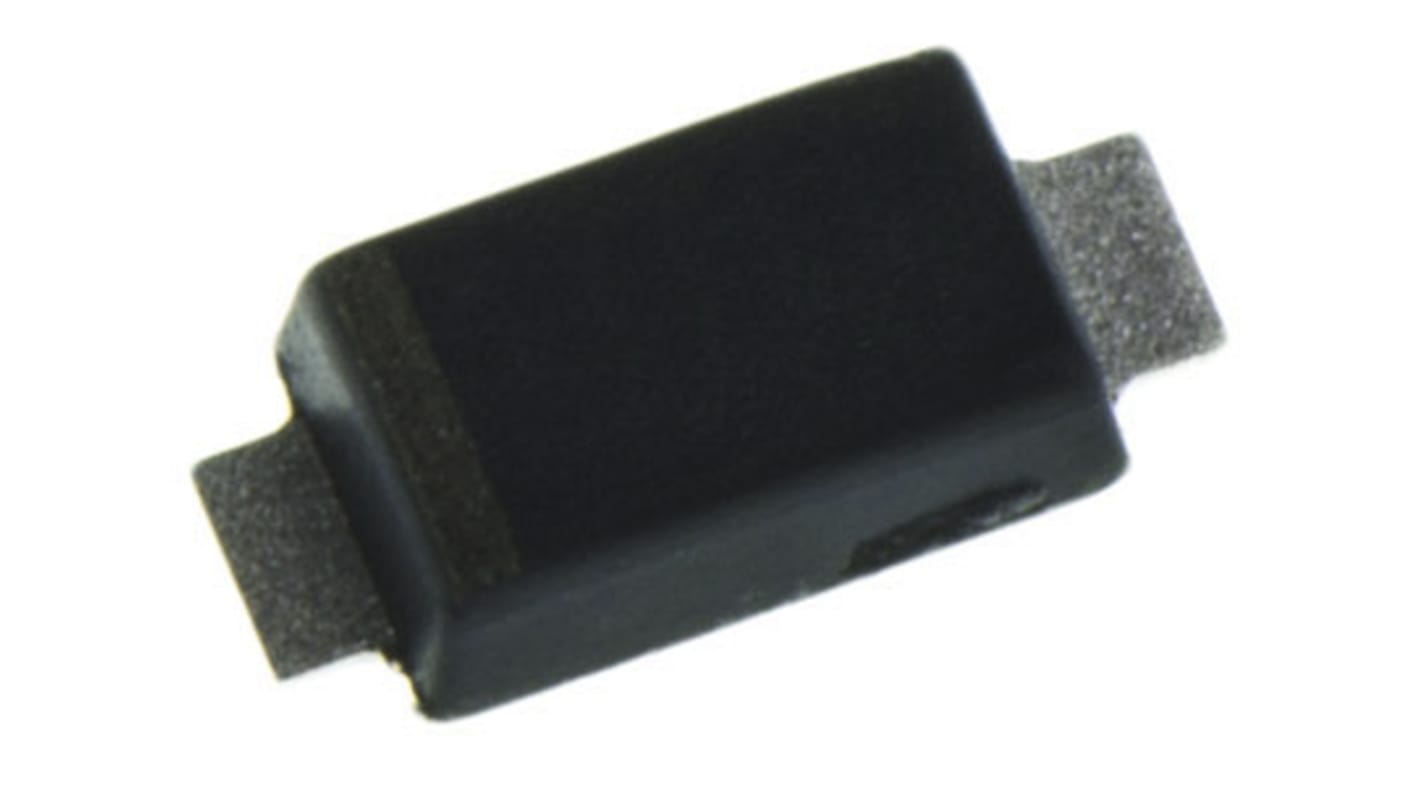

Product Details
The SMF series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. SMF package is 50% smaller in footprint when compare to SMA package and delivering one of the lowest height profiles (1.1mm) in the industry.
Compatible with industrial standard package SOD-123
Low profile: maximum height of 1.1mm
For surface mounted applications to optimize board space
Typical failure mode is short from over-specified voltage or current
200W peak pulse power capability at 10x1000μs waveform, repetition rate (duty cycle):0.01%
Low inductance, excellent clamping capability
Fast response time:typically less than 1.0ns from 0 Volts to VBR min
Built-in strain relief
Glass passivated junction
High temperature soldering: 260°C/40 seconds at terminals
Matte tin lead–free plated
Halogen free
Low profile: maximum height of 1.1mm
For surface mounted applications to optimize board space
Typical failure mode is short from over-specified voltage or current
200W peak pulse power capability at 10x1000μs waveform, repetition rate (duty cycle):0.01%
Low inductance, excellent clamping capability
Fast response time:typically less than 1.0ns from 0 Volts to VBR min
Built-in strain relief
Glass passivated junction
High temperature soldering: 260°C/40 seconds at terminals
Matte tin lead–free plated
Halogen free
Specifications
Attribute | Value |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 19.9V |
Minimum Breakdown Voltage | 13.3V |
Mounting Type | Surface Mount |
Package Type | SOD-123FL |
Maximum Reverse Stand-off Voltage | 12V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 200W |
Maximum Peak Pulse Current | 10.1A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +150 °C |
Dimensions | 2.9 x 2 x 1mm |
Height | 1mm |
Maximum Reverse Leakage Current | 2.5µA |
Length | 2.9mm |
ESD Voltage | 30kV |
Width | 2mm |
Test Current | 1mA |
