Texas Instruments TXS0102DQER, Voltage Level Translator Voltage Level Translator 1 Bi-Directional, 8-Pin X2SON

RS Stock No.:: 825-5450
Mfr. Part No.:: TXS0102DQER
Brand:: Texas Instruments

Texas Instruments TXS0102DQER, Voltage Level Translator Voltage Level Translator 1 Bi-Directional, 8-Pin X2SON

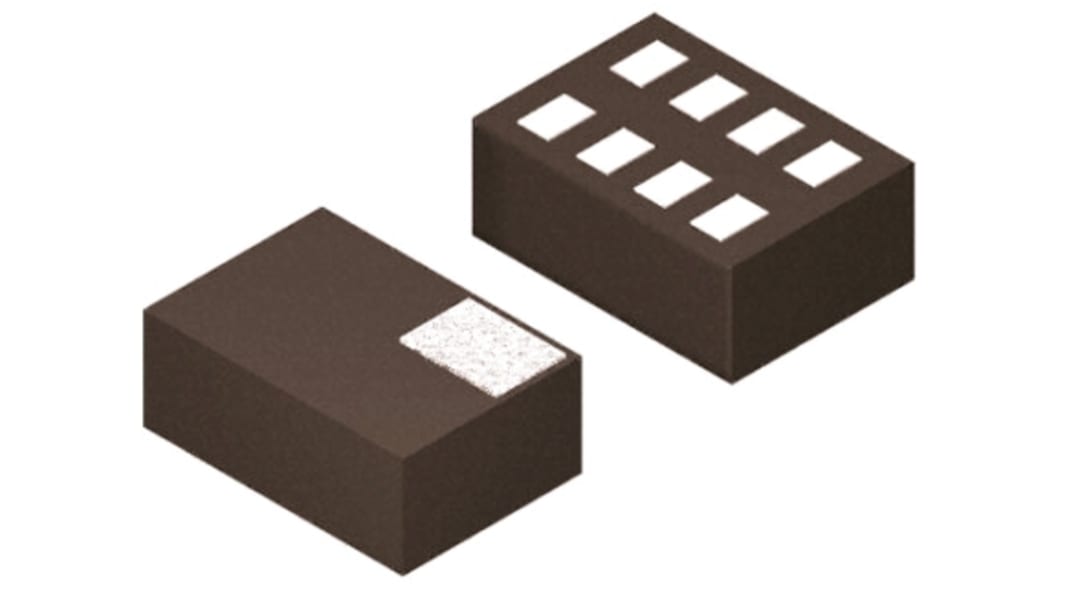

This image is representative of the product range

18880 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (In a Pack of 10)

$1.009

(exc. GST)

$1.11

(inc. GST)

Units	Per unit	Per Pack*
10 - 1240	$1.009	$10.09
1250 - 2490	$0.991	$9.91
2500 +	$0.973	$9.73

*price indicative

RS Stock No.:: 825-5450
Mfr. Part No.:: TXS0102DQER
Brand:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Mounting Type	Surface Mount
Number of Elements per Chip	1
Package Type	X2SON
Output Type	Open Drain, Push-Pull
Pin Count	8
Dimensions	1.45 x 1.05 x 0.35mm
Logic Function	Voltage Level Translator
Maximum Low Level Output Current	1mA
Maximum High Level Output Current	-20µA
Translation	Bi-Directional
Maximum Operating Supply Voltage	3.6 V, 5.5 V
Maximum Operating Temperature	+85 °C
Minimum Operating Supply Voltage	1.65 V, 2.3 V
Minimum Operating Temperature	-40 °C

Texas Instruments TXS0102DQER, Voltage Level Translator Voltage Level Translator 1 Bi-Directional, 8-Pin X2SON

Voltage-Level Translators, Texas Instruments
