Maxim Integrated MAX3371EXT+T, Logic Level Translator Voltage Level Translator 2 Logic Level, 6-Pin SCT0
- RS Stock No.:
- 190-6009
- Mfr. Part No.:
- MAX3371EXT+T
- Brand:
- Maxim Integrated

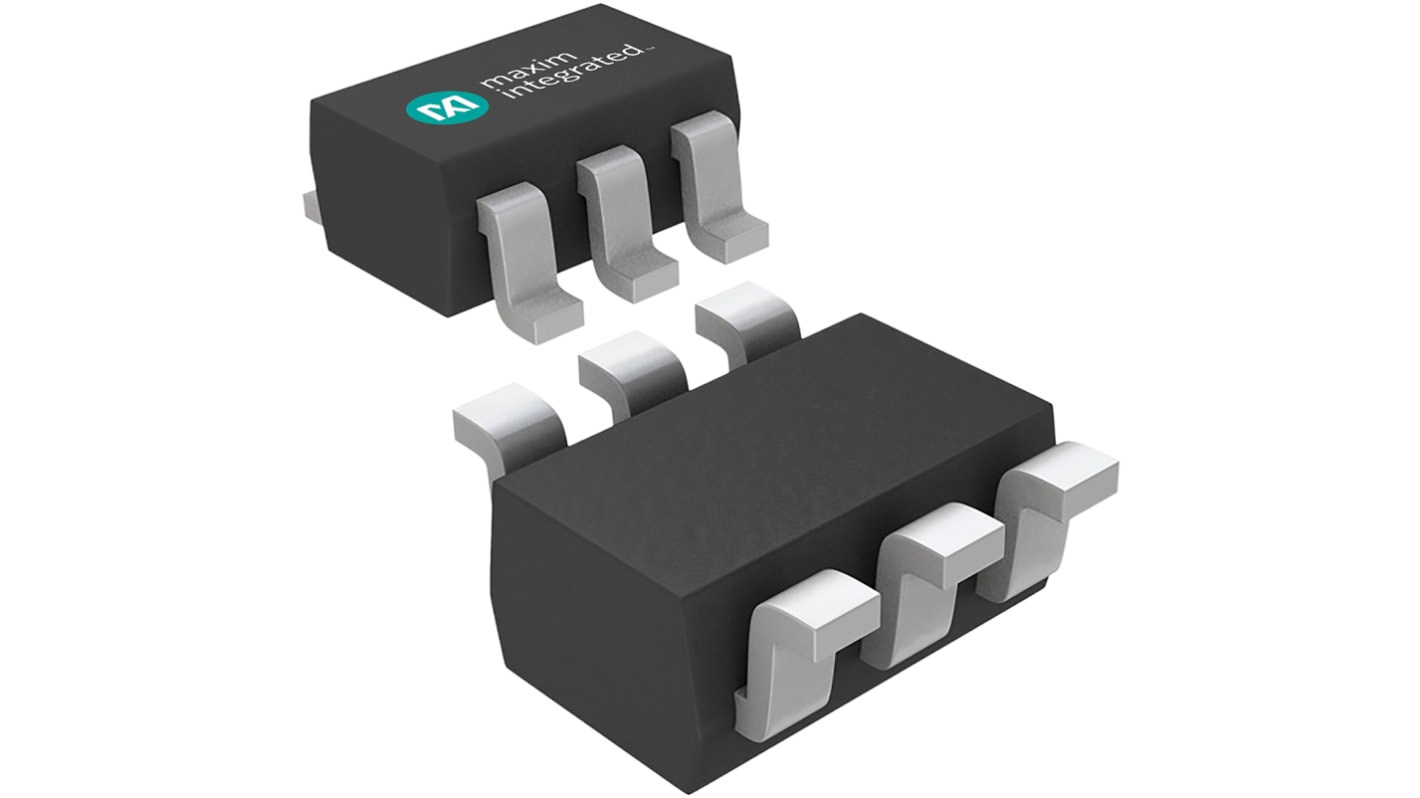

This image is representative of the product range
Subtotal (1 pack of 5 units)*
$46.16
(exc. GST)
$50.775
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 660 unit(s), ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | $9.232 | $46.16 |
*price indicative
- RS Stock No.:
- 190-6009
- Mfr. Part No.:
- MAX3371EXT+T
- Brand:
- Maxim Integrated
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Product Type | Logic Level Translator | |
| Direction Type | Bi-Directional | |
| Logic Family | BiCMOS | |
| Maximum Propagation Delay Time @ CL | 400ns | |
| Mount Type | Surface | |
| Number of Elements per Chip | 2 | |
| Package Type | SCT0 | |
| Output Type | Open Drain, 3 State | |
| Pin Count | 6 | |
| Logic Function | Voltage Level Translator | |
| Maximum Low Level Output Current | 1mA | |
| Maximum High Level Output Current | 20μA | |
| Minimum Supply Voltage | 2.5V | |
| Translation | Logic Level | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 1.35 mm | |
| Height | 1mm | |
| Standards/Approvals | No | |
| Series | MAX3371 | |
| Length | 2.15mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Product Type Logic Level Translator | ||
Direction Type Bi-Directional | ||
Logic Family BiCMOS | ||
Maximum Propagation Delay Time @ CL 400ns | ||
Mount Type Surface | ||
Number of Elements per Chip 2 | ||
Package Type SCT0 | ||
Output Type Open Drain, 3 State | ||
Pin Count 6 | ||
Logic Function Voltage Level Translator | ||
Maximum Low Level Output Current 1mA | ||
Maximum High Level Output Current 20μA | ||
Minimum Supply Voltage 2.5V | ||
Translation Logic Level | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 1.35 mm | ||
Height 1mm | ||
Standards/Approvals No | ||
Series MAX3371 | ||
Length 2.15mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
Allow Bidirectional Level Translation
Miniature μDFN (1mm x 1.5mm) and SC70 Packages
Operational Down to 1.6V
Low Quiescent Current (< 100μA)
Ultra-Low (< 1μA) Shutdown Supply Current (MAX3371)
Three-State Outputs in Shutdown (MAX3371)
2Mbps (10pF Load) Push-Pull Driving
1Mbps (50pF Load) Push-Pull Driving
500kbps (30pF Load) Open-Drain Driving
Applications
Cell Phone Cradles
Cell Phone Hands-Free Kits
Low-Voltage ASIC Level Translation
Portable Communication Devices
Portable POS Systems
RS-232-Compatible Translation
Smart Card Readers
SPI™, MICROWIRE™, and I²C Level Translation
