Texas Instruments SN74AVCH4T245D, Voltage Level Translator Bus Transceiver 1, 16-Pin SOIC

RS Stock No.:: 145-1148
Mfr. Part No.:: SN74AVCH4T245D
Brand:: Texas Instruments

Texas Instruments SN74AVCH4T245D, Voltage Level Translator Bus Transceiver 1, 16-Pin SOIC

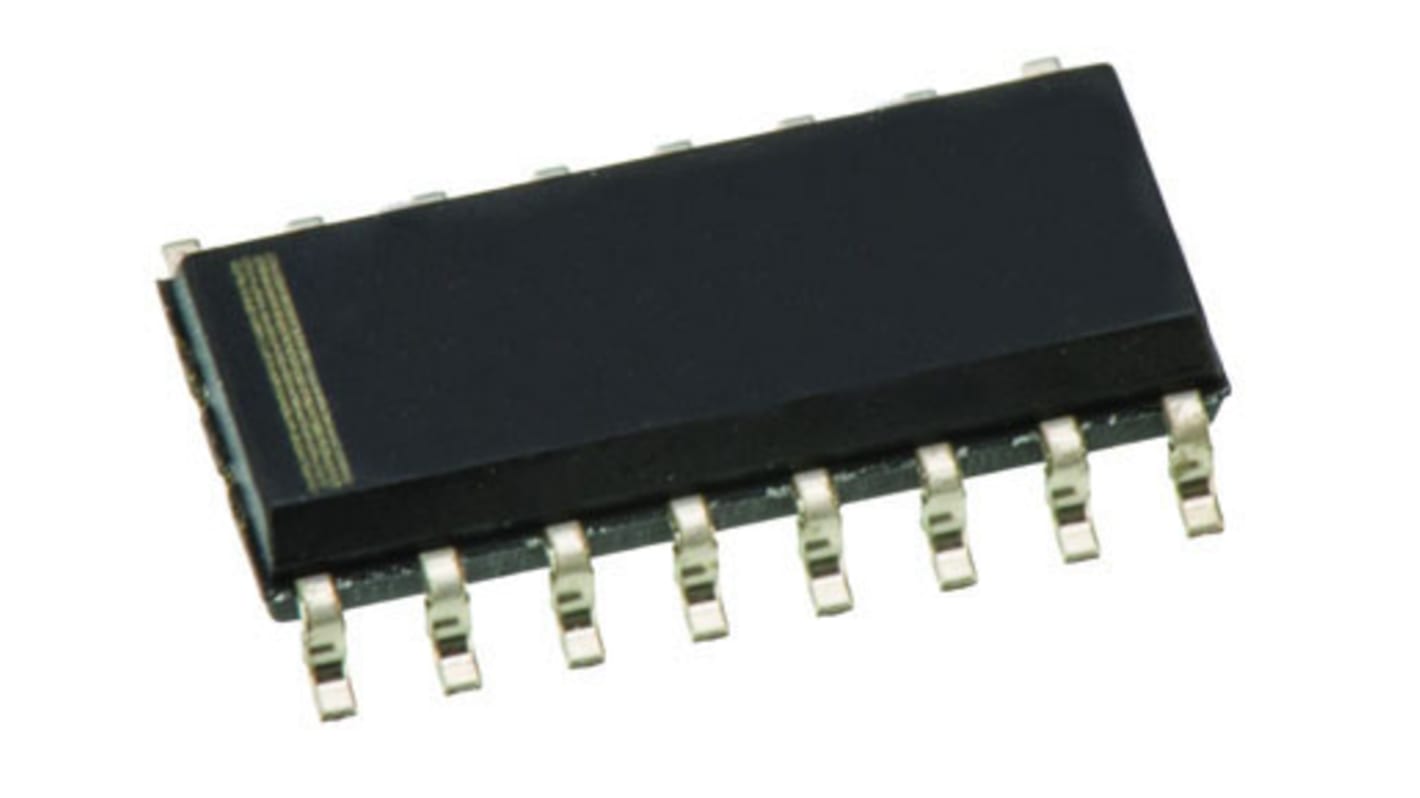

This image is representative of the product range

Discontinued product

RS Stock No.:: 145-1148
Mfr. Part No.:: SN74AVCH4T245D
Brand:: Texas Instruments

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	AVCH
	Mounting Type	Surface Mount
	Package Type	SOIC
	Number of Elements per Chip	1
	Pin Count	16
	Output Type	3 State
	Dimensions	10 x 4 x 1.5mm
	Logic Function	Bus Transceiver
	Maximum Low Level Output Current	12mA
	Maximum High Level Output Current	-12mA
	Propagation Delay Test Condition	15pF
	Maximum Propagation Delay Time @ Maximum CL	10.3 ns @ 15 pF
	Maximum Operating Supply Voltage	3.6 V
	Maximum Operating Temperature	+85 °C
	Minimum Operating Supply Voltage	1.2 V
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Texas Instruments
	Logic Family AVCH
	Mounting Type Surface Mount
	Package Type SOIC
	Number of Elements per Chip 1
	Pin Count 16
	Output Type 3 State
	Dimensions 10 x 4 x 1.5mm
	Logic Function Bus Transceiver
	Maximum Low Level Output Current 12mA
	Maximum High Level Output Current -12mA
	Propagation Delay Test Condition 15pF
	Maximum Propagation Delay Time @ Maximum CL 10.3 ns @ 15 pF
	Maximum Operating Supply Voltage 3.6 V
	Maximum Operating Temperature +85 °C
	Minimum Operating Supply Voltage 1.2 V
	Minimum Operating Temperature -40 °C

Texas Instruments SN74AVCH4T245D, Voltage Level Translator Bus Transceiver 1, 16-Pin SOIC

74AVCH Family, Texas Instruments
