RS PRO 2 x 115 V ac 2 x 9 V Toroidal Transformer, RoHS, REACH

RS Stock No.:: 124-3874
Brand:: RS PRO

RS PRO 2 x 115 V ac 2 x 9 V Toroidal Transformer, RoHS, REACH

This image is representative of the product range

Bulk discount available

Subtotal (1 unit)*

$45.56

(exc. GST)

$50.12

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Limited stock

13 left, ready to ship from another location
Plus 141 left, shipping from 27 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	$45.56
5 - 24	$45.03
25 +	$37.04

*price indicative

RS Stock No.:: 124-3874
Brand:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Primary Voltage	2 x 115 V ac
	Product Type	Toroidal Transformer
	Secondary Voltage	2 x 9 V
	Secondary Current	1785 mA
	Weight	435g
	Winding Type	Dual Primary
	Maximum Operating Frequency	50Hz
	Maximum Operating Temperature	60°C
	Mount Type	Through Hole
	Height	37.5mm
	Standards/Approvals	RoHS, REACH

	Select all
	Brand RS PRO
	Primary Voltage 2 x 115 V ac
	Product Type Toroidal Transformer
	Secondary Voltage 2 x 9 V
	Secondary Current 1785 mA
	Weight 435g
	Winding Type Dual Primary
	Maximum Operating Frequency 50Hz
	Maximum Operating Temperature 60°C
	Mount Type Through Hole
	Height 37.5mm
	Standards/Approvals RoHS, REACH

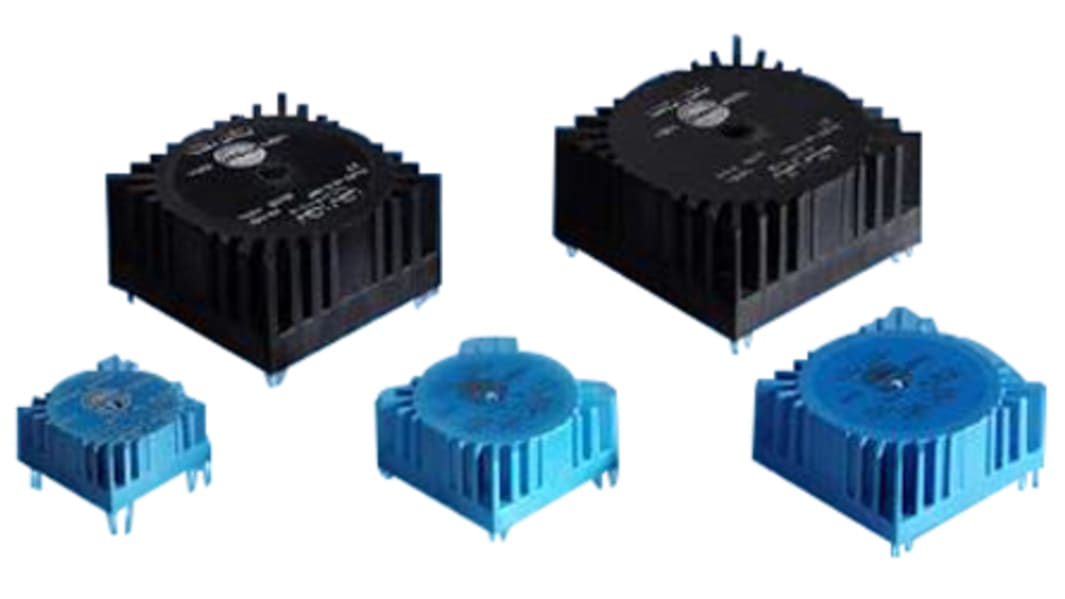

RS Pro Toroidal PC Transformer 1.6VA- 25VA

RS Pro toroidal PC transformers are high efficiency and low profile being a small size and low weight. These Toroidal transformers have low iron loss and low induced noise. Dual 115 V primaries for parallel or series connections.

Features

Lower stray field

Reduced standby current

Test voltage primary- secondary 4.0 KV

Ease of mounting- M4 Centre bush

Ambient operating temperature: +60°C Max

Fully RoHS & REACH compliant

Encapsulated – Toroidal

Note

Fixing screws not provided
