- RS Stock No.:
- 464-4711
- Mfr. Part No.:
- D2-2022P
- Brand:
- NKK Switches
On back order for despatch 05/07/2024, delivery within 5 working days from despatch date.
Added
Price (ex. GST) Each
$15.79
(exc. GST)
$17.37
(inc. GST)
Units | Per unit |
1 - 49 | $15.79 |
50 - 99 | $15.62 |
100 - 249 | $15.27 |
250 - 499 | $14.85 |
500 + | $14.44 |
- RS Stock No.:
- 464-4711
- Mfr. Part No.:
- D2-2022P
- Brand:
- NKK Switches
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

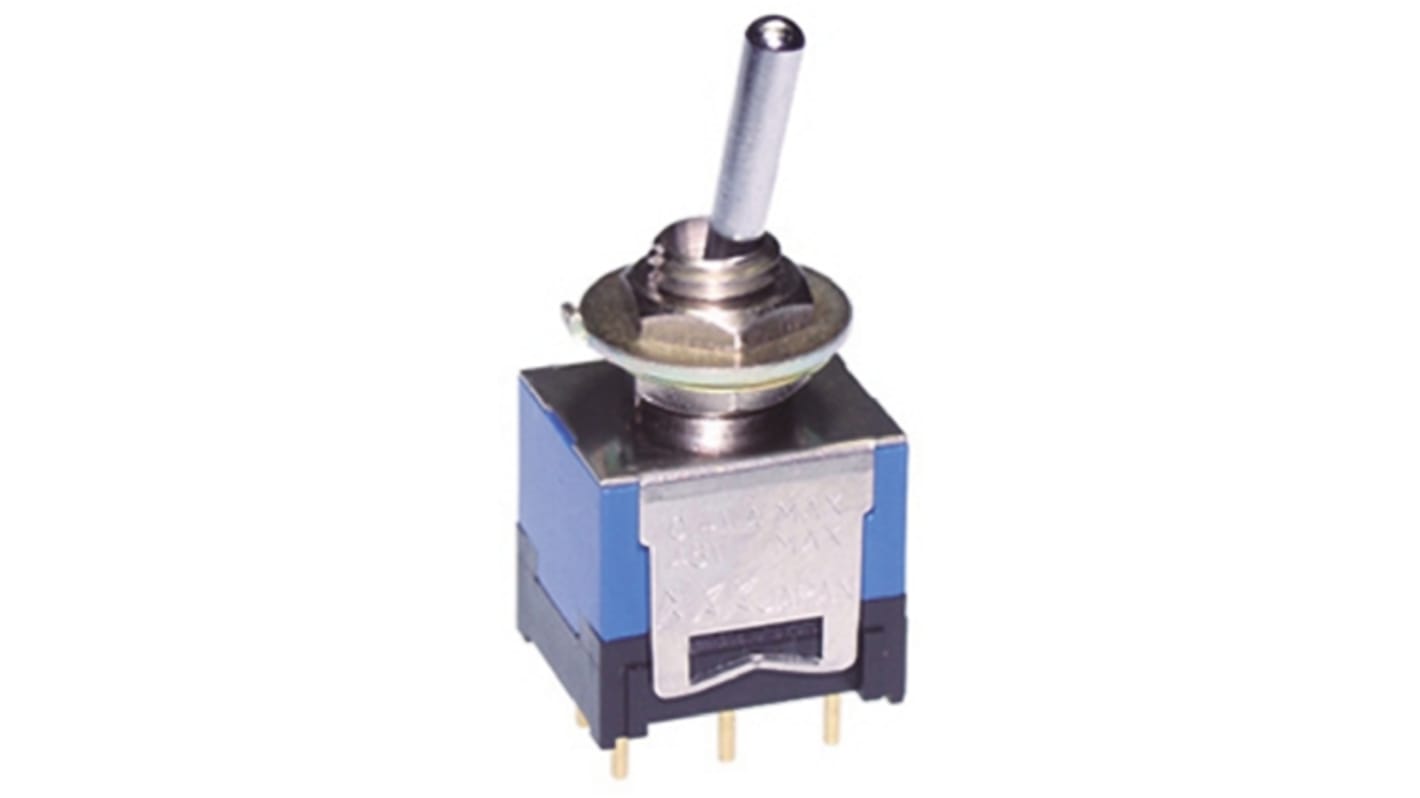

Toggle Switch (D2 Series)
Utilises high contact reliability sliding twin crossbar contact mechanism
External dimensions are interchangeable with D series
High reliability operating mechanism lever lock on certain types
External dimensions are interchangeable with D series
High reliability operating mechanism lever lock on certain types
Specifications
Attribute | Value |
---|---|
Contact Configuration | Double Pole Double Throw (DPDT) |
Switch Operation | Latching |
Contact Current Rating | 100 mA @ 48 V ac/dc |
Mounting Type | PCB |
Terminal Type | Through Hole |
Actuator Length | 10.5mm |
Actuator Material | Brass |
Contact Resistance | 50mΩ |
Contact Material | Gold Plated Phosphor Bronze |
Minimum Operating Temperature | -10°C |
Mechanical Life | 100000Operations |
Operating Temperature Range | -10 → +70°C |
Maximum Operating Temperature | +70°C |
