- RS Stock No.:
- 236-1458
- Mfr. Part No.:
- H3YN-41 AC200-230
- Brand:
- Omron
On back order for despatch 02/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$179.70
(exc. GST)
$197.67
(inc. GST)
Units | Per unit |
1 - 2 | $179.70 |
3 - 4 | $176.54 |
5 + | $172.15 |
- RS Stock No.:
- 236-1458
- Mfr. Part No.:
- H3YN-41 AC200-230
- Brand:
- Omron
Technical data sheets
Legislation and Compliance

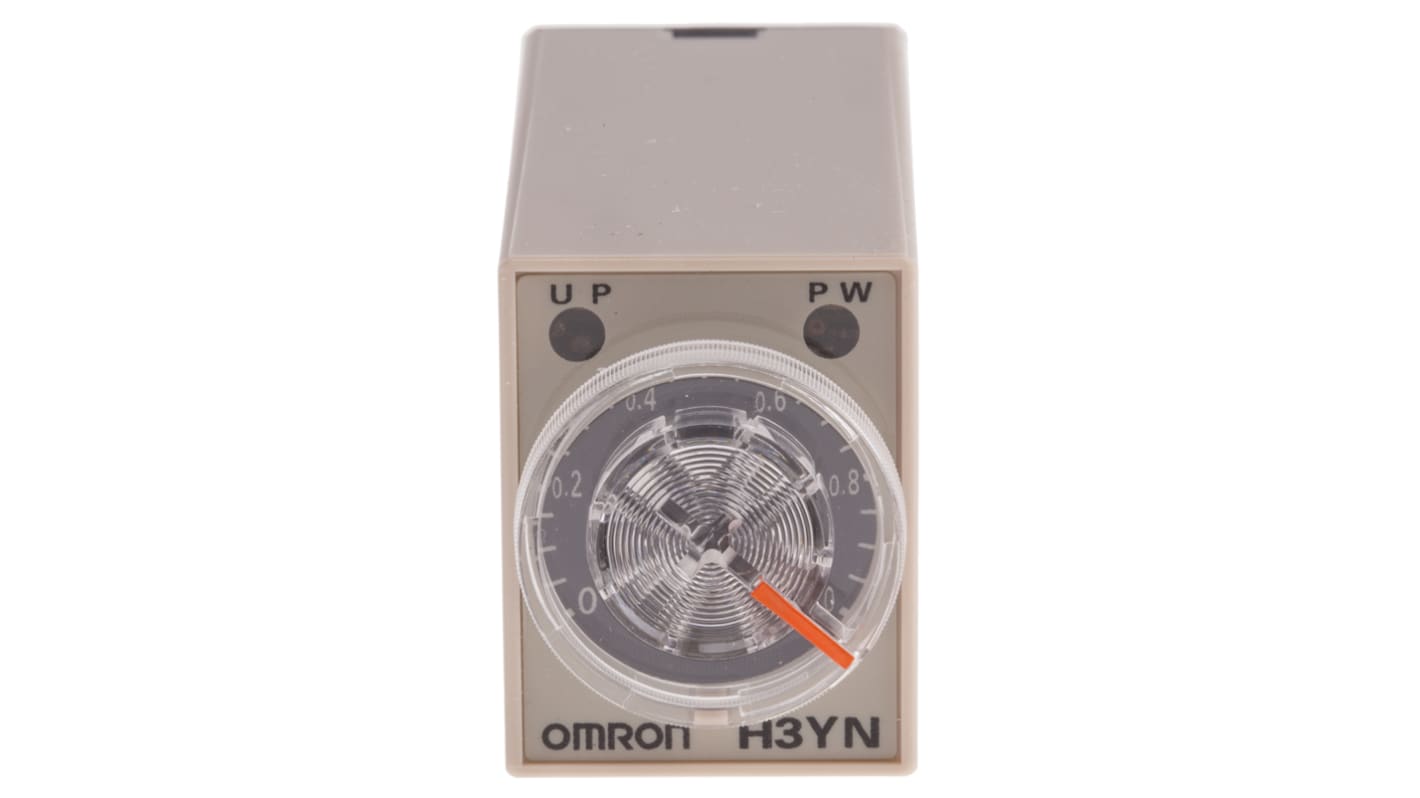

Product Details
H3YN - 4PDT
Functions - 143,453,611,612
Multiple functions, multiple time ranges
Electrical life: 200000 operations at rated load
Multiple functions, multiple time ranges
Electrical life: 200000 operations at rated load
Standards
VDE0435/P2021, EN 50081-2, EN 50082-2
Approvals
UL, CSA
Specifications
Attribute | Value |
---|---|
Supply Voltage | 200 → 230V ac |
Mounting Type | DIN Rail, Panel Mount |
Mode of Operation | Flicker OFF Start, Flicker ON Start, Interval, ON Delay |
Time Range | 0.1 min → 10h |
Number of Contacts | 4 |
Number of Timer Functions | Multi Function |
Time Increment | Hours, Minutes |
Maximum Current | 3A |
Maximum Voltage | 250V ac |
Switch Configuration | 4PDT |
Terminal Type | Socket |
Power Supply | External |
Width | 21.5mm |
Maximum Operating Temperature | +50°C |
Length | 28mm |
Series | H3YN |
Depth | 63mm |
Minimum Operating Temperature | -10°C |
Time Delay | 0.1s |
