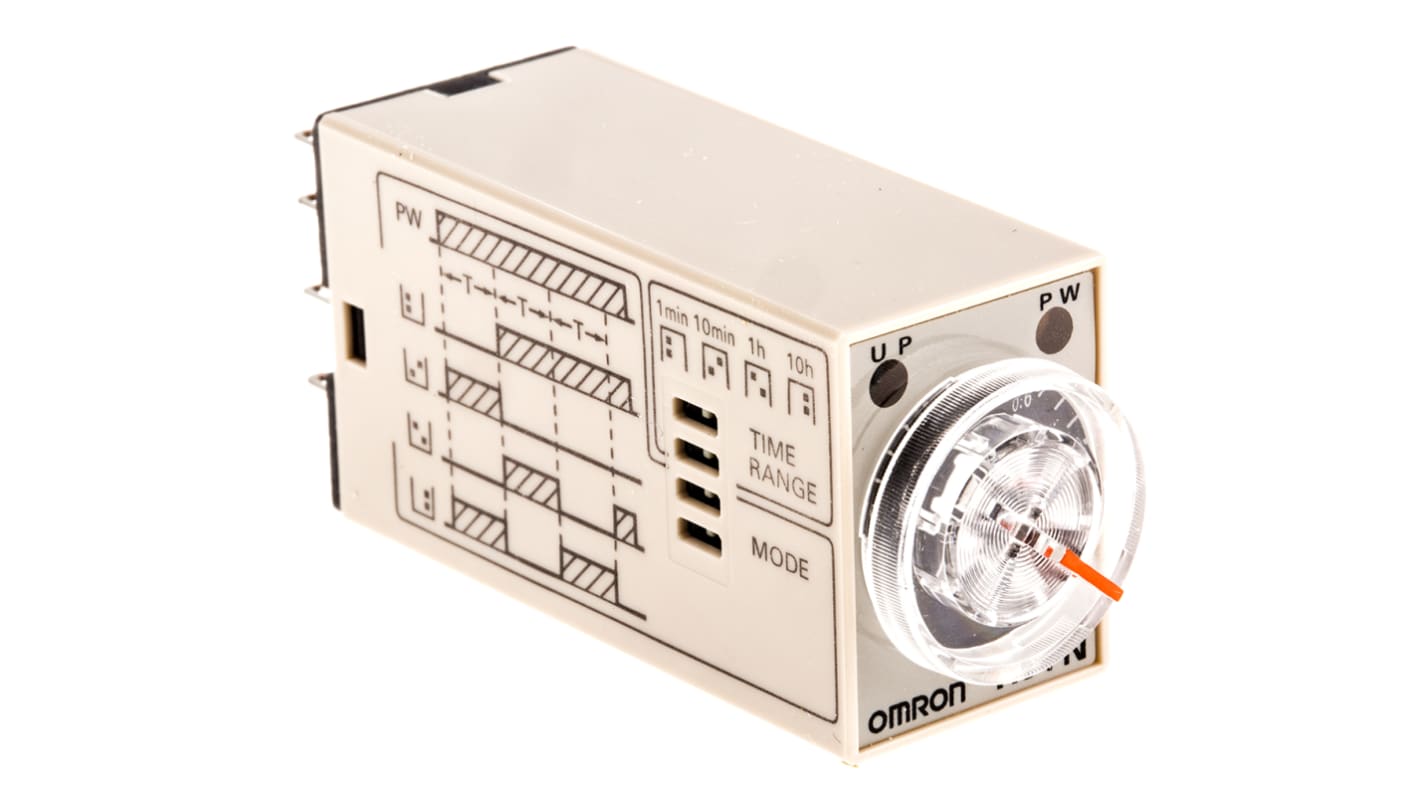

Omron H3YN Series DIN Rail Timer Relay, 2-Contact, 200 to 230 V ac 200/230 V ac, 0.1 min to 10 h,

RS Stock No.:: 236-1357
Mfr. Part No.:: H3YN-21 AC200-230
Brand:: Omron

Omron H3YN Series DIN Rail Timer Relay, 2-Contact, 200 to 230 V ac 200/230 V ac, 0.1 min to 10 h,

Bulk discount available

Subtotal (1 unit)*

$195.32

(exc. GST)

$214.85

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

58 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 2	$195.32
3 - 4	$187.49
5 +	$179.67

*price indicative

RS Stock No.:: 236-1357
Mfr. Part No.:: H3YN-21 AC200-230
Brand:: Omron

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Timer Relay
	Mount Type	DIN Rail
	Time Range	0.1 min to 10 h
	Number of Contacts	2
	Number of Timer Functions	Multifunction
	Contact Configuration	DPDT
	IP Rating	IP40
	Supply DC Voltage	200 to 230 V ac
	Minimum Operating Temperature	-10°C
	Supply AC Voltage	200/230 V ac
	Contact Current	5A
	Maximum Operating Temperature	50°C
	Terminal Type	Plug-In
	Width	21.5 mm
	Standards/Approvals	UR, EN, CSA
	Length	28mm
	Height	63mm
	Series	H3YN

	Select all
	Brand Omron
	Product Type Timer Relay
	Mount Type DIN Rail
	Time Range 0.1 min to 10 h
	Number of Contacts 2
	Number of Timer Functions Multifunction
	Contact Configuration DPDT
	IP Rating IP40
	Supply DC Voltage 200 to 230 V ac
	Minimum Operating Temperature -10°C
	Supply AC Voltage 200/230 V ac
	Contact Current 5A
	Maximum Operating Temperature 50°C
	Terminal Type Plug-In
	Width 21.5 mm
	Standards/Approvals UR, EN, CSA
	Length 28mm
	Height 63mm
	Series H3YN

Omron H3YN Series Timer Relay, DPDT Contact Configuration, 200 to 230V AC Supply Voltage - H3YN-21 AC200-230

This timer relay is designed for efficiency in various automation tasks. Its compact dimensions of 63mm depth and 28mm length make it suitable for DIN rail and panel mounting. With a supply voltage range of 200 to 230V AC, it provides versatility across different electrical configurations. Key features include a DPDT contact configuration and multiple operating modes.

Features & Benefits

• Multiple operational modes enhance application flexibility

• User-selectable time ranges from 0.1s to 10min or 1min to 10hr

• External power supply ensures stable performance

• Plug-in design simplifies installation and maintenance

• Operating temperature range of -10 to +50°C for consistent performance

• Conforms to EN 61812-1 for safety and quality assurance

Applications

• Utilised in industrial automation systems

• Ideal for controlling machinery and equipment timing

• Employed in process control to manage intervals

• Suitable for electrical panel with space constraints

• Used in production lines requiring precise timing adjustments

Can it operate under extreme temperatures?

Yes, it functions well from -10°C to +50°C.

Will it support various contact types?

Yes, it features a DPDT contact configuration.

Is it easy to install and maintain?

The plug-in design facilitates quick installation and maintenance.

Can the user adjust the timer settings?

Yes, it offers user-selectable time ranges through DIP switches.
