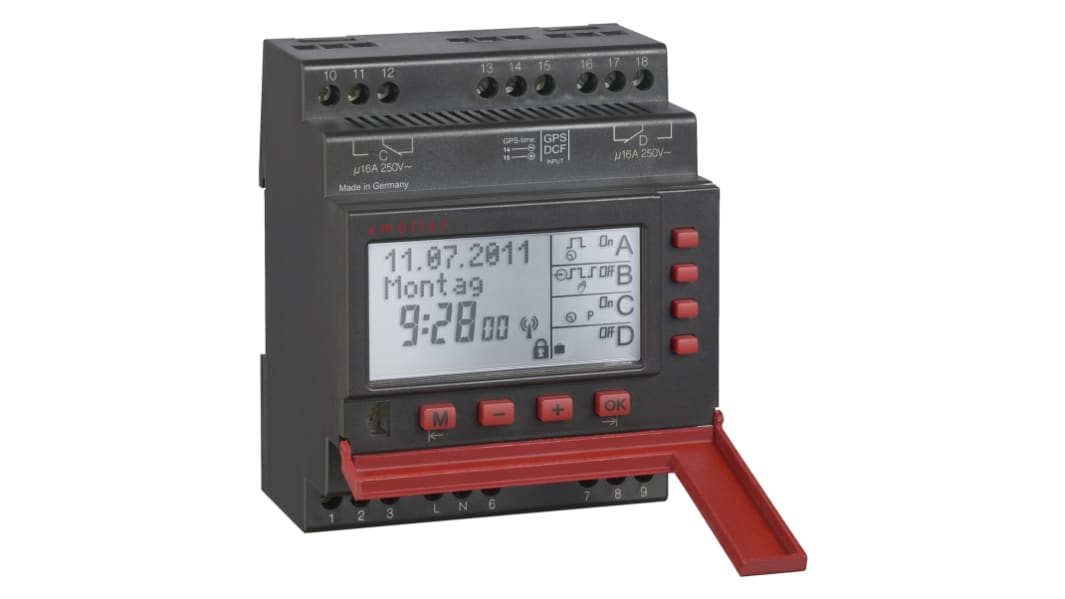

Muller Digital SC DIN Rail Time Switch, 2-Channel 230V ac

RS Stock No.:: 386-8483
Distrelec Article No.:: 136-61-951
Mfr. Part No.:: SC 98.20 PRO 230V 50-60HZ
Brand:: Muller

Muller Digital SC DIN Rail Time Switch, 2-Channel 230V ac

Currently unavailable

Sorry, we don't know when this will be back in stock.

Alternative

This product is not currently available. Here is our alternative recommendation.

Muller Digital SC Time Switch, 2-Channel 230V ac

RS Stock No.: 222-9461

Each

$752.19

(exc. GST)

$827.41

(inc. GST)

RS Stock No.:: 386-8483
Distrelec Article No.:: 136-61-951
Mfr. Part No.:: SC 98.20 PRO 230V 50-60HZ
Brand:: Muller

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Muller
	Product Type	DIN Rail Time Switch
	Sub Type	Digital
	Number of Channels	2
	Units Measured	Minutes
	Segment Length	1min
	Terminal Type	Pull up
	Contact Configuration	SPDT
	Maximum Supply Voltage	230V ac
	Memory Spaces	300
	Battery Life	10year
	Height	90mm
	Depth	63mm
	Standards/Approvals	RoHS, DIN EN 60730-1/DIN EN 60730-2-7, ISO 15693
	Series	SC

	Select all
	Brand Muller
	Product Type DIN Rail Time Switch
	Sub Type Digital
	Number of Channels 2
	Units Measured Minutes
	Segment Length 1min
	Terminal Type Pull up
	Contact Configuration SPDT
	Maximum Supply Voltage 230V ac
	Memory Spaces 300
	Battery Life 10year
	Height 90mm
	Depth 63mm
	Standards/Approvals RoHS, DIN EN 60730-1/DIN EN 60730-2-7, ISO 15693
	Series SC

COO (Country of Origin):: DE

Muller Time switch

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 24VDC coil and an SPNO contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

• DIN rail mounting

• Minimum interval 1 minute

• Time base is quartz/DCF

• Switching capacity 16A per channel

• Manual permanent mode

• Manual override

• Can be programmed with supply disconnected

• Permanent ON/OFF switch, manual override, and holiday switching

• Automatic sorting of switching times on readout

• Unrestricted block programming

• Fully automatic daylight saving time

• Elapsed time and pulse counter

• Security by PIN-code

• Data key function

• Screw terminal connection

• Operating temperatures ranging between -30°C and 55°C

Applications

• Ideal for outdoor and street lighting

• Control of lighting, heating and ventilation

Certifications

• IP20 rated

• DIN EN 6052

• VDE approved
