RS PRO Type K Thermocouple Cable/Wire, 10m, Unscreened, PFA Insulation, +260°C Max, 7/0.2mm

RS Stock No.:: 239-4641
Brand:: RS PRO

RS PRO Type K Thermocouple Cable/Wire, 10m, Unscreened, PFA Insulation, +260°C Max, 7/0.2mm

5 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$83.04

(exc. GST)

$91.34

(inc. GST)

Units	Per unit
1 - 4	$83.04
5 +	$68.34

RS Stock No.:: 239-4641
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

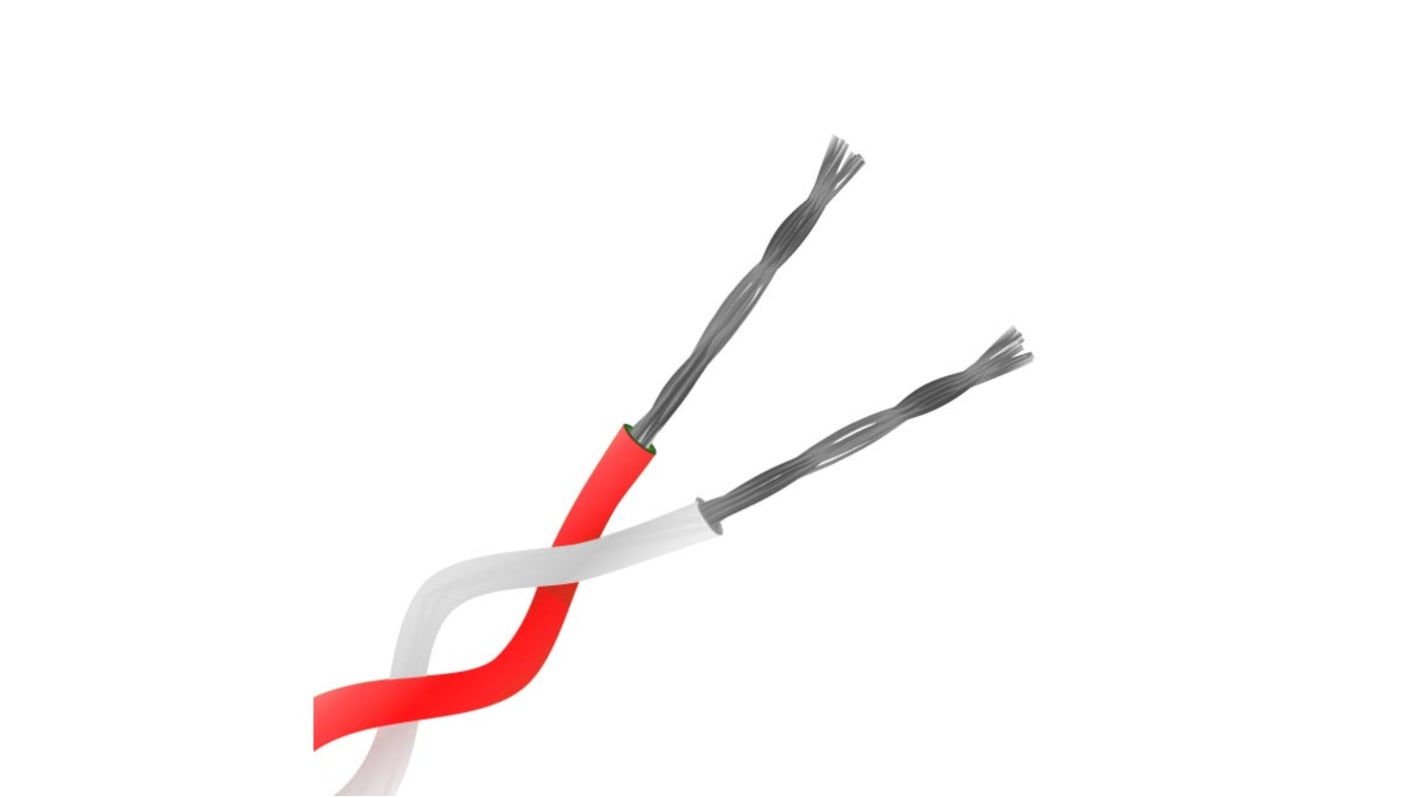

RS PRO Thermocouple Extension Wire – Twin Twisted

Introducing the range of RS PRO PFA Insulated Thermocouple Cables, ideal for use as general-purpose extension wire in high-temperature environments. The cable consists of a twin pair of PFA insulated conductors, twisted with a PFA jacket for optimum protection and insulation of the wires, and high reliability, especially when being used for a long period of time in challenging environments.

Features and benefits

Maximum operating temperature of up to +260 °C

Twin Twisted conductors

Insulated with high quality PFA

Unscreened construction

2 cores

Colour: Red & White with blue tracer

Stranded conductors: 1/0.2 mm,1/0.3 mm,7/0.2 mm

Available in 10 m, 25 m, 50 m 100 m and 200 m lengths

Thermocouple Type: Type K

RoHS (Restriction of Hazardous Substances Directive)

Key Benefits

This range of RS PRO PFA insulated Thermocouple cabling is suitable for use as extension cable in high-temperature environments

The extension cable has an excellent temperature range, from -75°C up to +260°C, meaning it can perform in high temperature and cryogenic environments, making it incredibly versatile

The PFA material offers high resistance to chemicals, oils and fluids, making the cables ideal for industrial applications where the cabling may be exposed to harsh and adverse fluids from machinery and more

In addition to this, the extruded form of the PFA cabling allows it to be steam, gas and watertight, making them suitable for use in applications where sterilisers or autoclaves may be in use

Available in a range of variations dependant on requirements

Applications

Thermocouple extension wires or cabling is an ideal accessory when working with thermocouple installation. This type of cable can add additional flexibility and versatility to an existing thermocouple and are offered in a wide range of constructions from simple twisted pairs to screened cables to suit any combination and application they are needed for. Thermocouple extension cables can often be found in:

Research and development

Transportation

Manufacturing, engineering and production environments

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Specifications

Attribute	Value
Insulation Material	PFA
Length	10m
Thermocouple Type	K
Maximum Operating Temperature	+260°C
Screened/Unscreened	Unscreened
Core Strands	7/0.2mm
Cable Shape	Twin Twisted
Number of Strands	2
Standards Met	JIS
