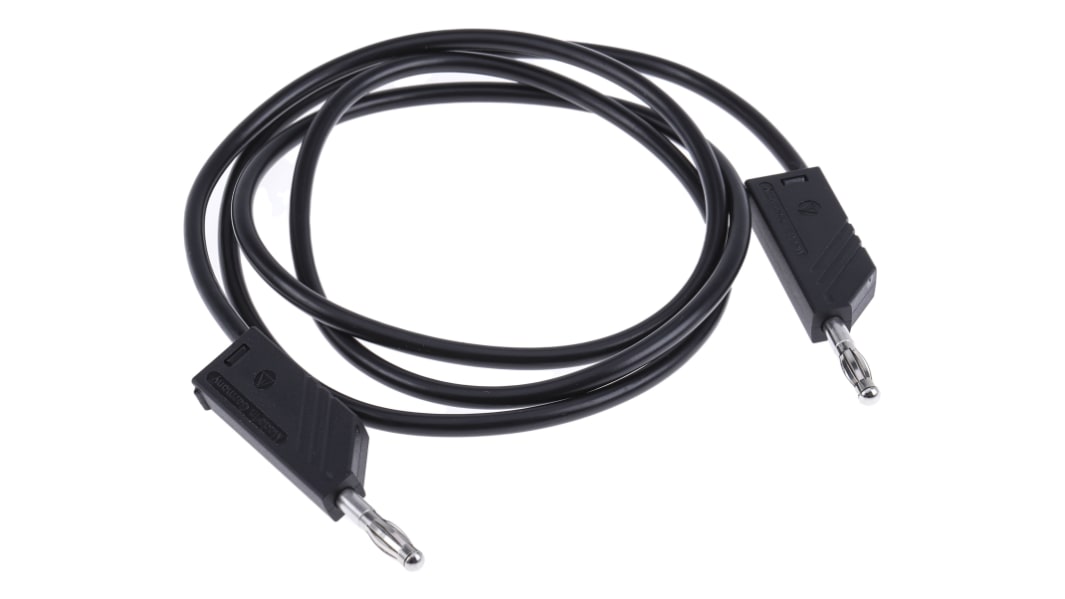

Hirschmann Test & Measurement Test Lead 32A, 60 V, Black, 1 m Lead Length

This image is representative of the product range

View all Test Leads
Bulk discount available

Subtotal (1 unit)*

$12.88

(exc. GST)

$14.17

(inc. GST)

Add to Basket
Select or type quantity
Limited stock
  • 81 left, ready to ship
  • Plus 241 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 49$12.88
50 - 99$12.75
100 +$12.41

*price indicative

RS Stock No.:
343-3481
Mfr. Part No.:
934063100
Brand:
Hirschmann Test & Measurement
Find similar products by selecting one or more attributes.
Select all

Brand

Hirschmann Test & Measurement

Lead Length

1m

Product Type

Test Lead

Test Lead Type

4 mm Connector Test Lead

Current

32A

Connector Orientation A

Straight

Colour

Black

Voltage

60 V

Connector Orientation B

Straight

Connector Gender A

Male

Connector Gender B

Male

Standards/Approvals

No

Contact Material

Brass, Beryllium Copper Alloy

Insulation Material

Polyvinyl Chloride

Maximum Operating Temperature

70°C

Minimum Operating Temperature

-15°C

COO (Country of Origin):
DE

MLN 2.5 Stackable 4mm Measuring Leads


Hirschmann Test and Measurement MLN 2.5, 4mm measuring leads have at either end a 4mm diameter plug with caged spring and 4mm diameter socket for tower construction. These measuring and test leads have a nickel or gold plated, copper beryllium contact spring, highly flexible,double insulated stranded lead and a shatter-proof sleeve. The test lead cable has a built in colour indicator for easy identification of insulation damage by means of a different coloured inner core of insulation.

Rated voltage 30 VAC / 60 VDC

Rated current 32A

CAT I

PVC Insulated

Wire stranding 320 x 0.10mm

Contact resistance 12mΩ (100cm) 20mΩ (200cm)

Note

All manufacturing part numbers ending in 7** are gold plated variants.
