Schutzinger 4mm Black Terminal Post, 1kV, 100A, M8 x 0.75 Thread

RS Stock No.:: 753-1775
Mfr. Part No.:: POL 102 / SW
Brand:: Schutzinger

Schutzinger 4mm Black Terminal Post, 1kV, 100A, M8 x 0.75 Thread

54 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$29.61

(exc. GST)

$32.57

(inc. GST)

Units	Per unit
1 - 4	$29.61
5 - 9	$28.87
10 - 24	$28.15
25 +	$27.45

RS Stock No.:: 753-1775
Mfr. Part No.:: POL 102 / SW
Brand:: Schutzinger

Technical data sheets

POL 102/201 Data Sheet

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

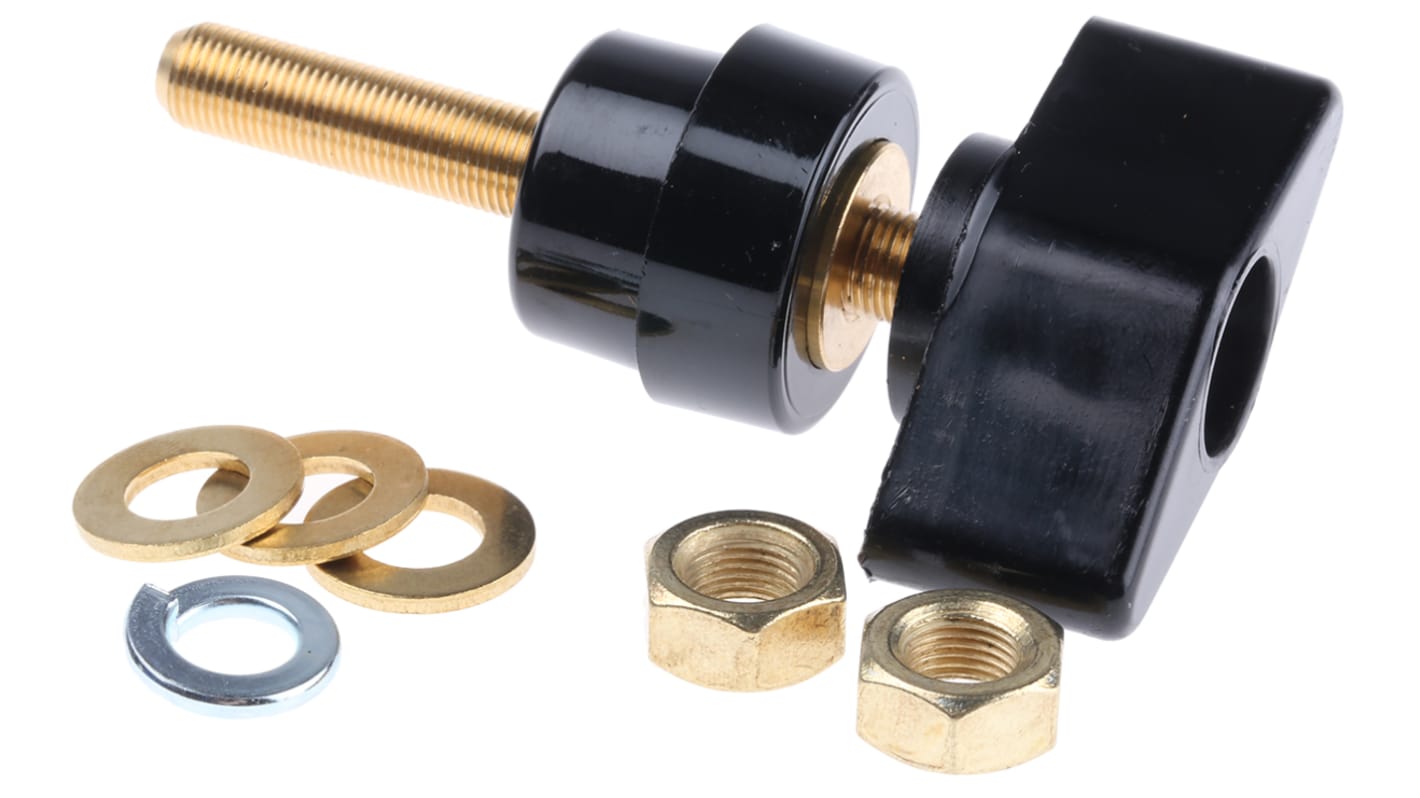

Schutzinger Terminal Post

The Schutzinger black terminal post is a panel-mount connector pin with a single pole. The post is made of brass material. It is used for the transmission and testing of voltages and currents. The length of the pin is 81mm and the diameter is 4mm. Its voltage rating is 1kV and the current rating is 100A.
Note:
For associated SDK 502 connectors see: 753-1674 , 753-1677, 753-1671, 753-1665 , 753-1661.
Schutzinger 4mm programme range:
A comprehensive range of Schutzinger terminal posts, quick release connectors and crocodile clips that are suitable for many applications, including testbeds, testing tools and various electronic devices utilising the 4 mm diameter programme and safety programme ranges.

Features and Benefits

Thread size is M8 x 0.75
Non-detachable toggle head
Polycarbonate insulating ring
Panel thickness is 4mm maximum
Transition resistance is 0.4mohm
Opearting temperature ranges between -25°C and 115°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Colour	Black
Hole Diameter	4mm
Current Rating	100A
Thread Size	M8 x 0.75
Voltage Rating	1kV
Insulated	Yes
Body Material	Brass
Maximum Panel Thickness	4mm
Height Above Panel	43mm
