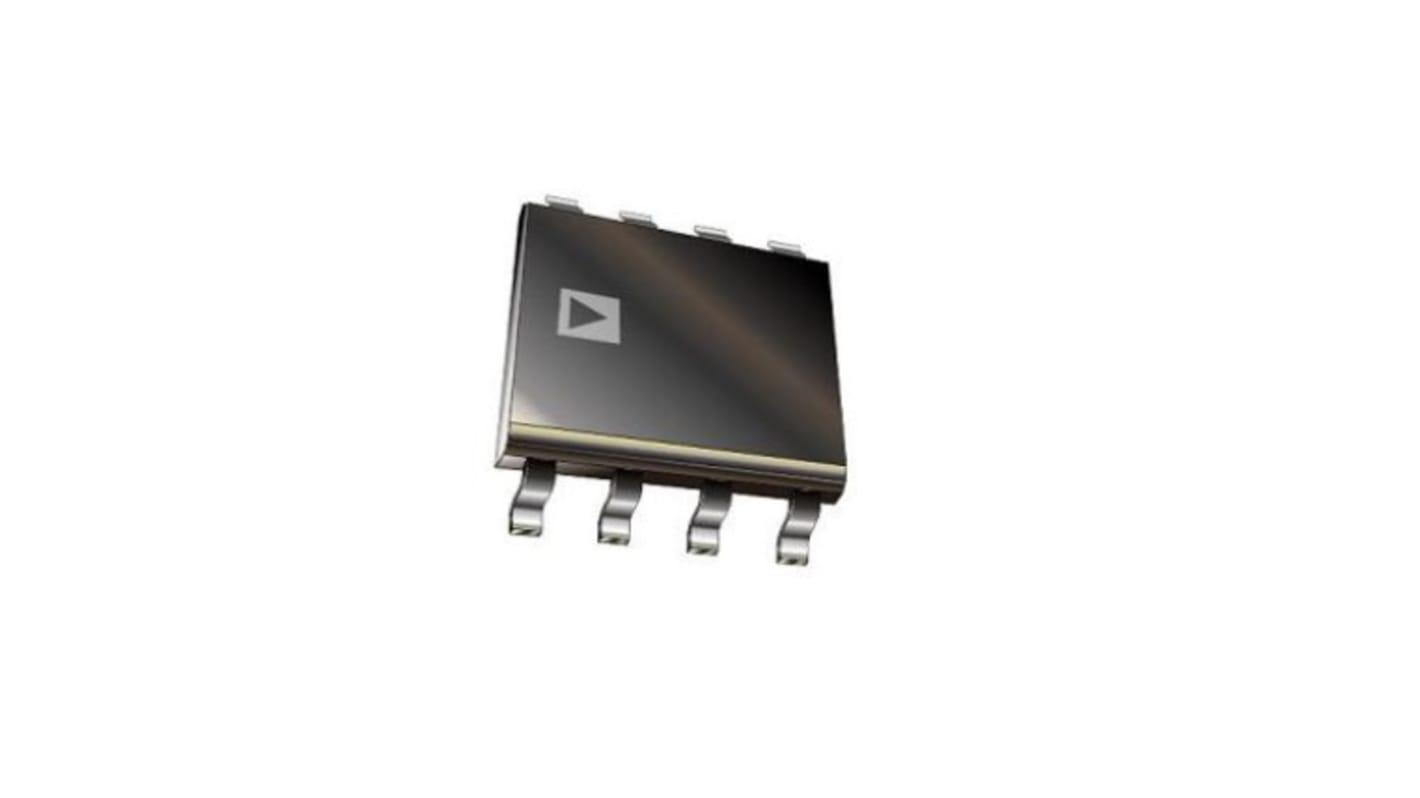

Analog Devices Thermostat Switch, Open Collector Output, Surface Mount, ±2.0°C, 8 Pins
- RS Stock No.:
- 231-7214
- Mfr. Part No.:
- AD22105ARZ-REEL7
- Brand:
- Analog Devices
388 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 2)
$8.295
(exc. GST)
$9.125
(inc. GST)
| Units | Per unit | Per Pack* |
| 2 + | $8.295 | $16.59 |
| *price indicative | ||
- RS Stock No.:
- 231-7214
- Mfr. Part No.:
- AD22105ARZ-REEL7
- Brand:
- Analog Devices
Technical data sheets
Legislation and Compliance
Product Details
The Analog Devices solid state thermostatic switch requires only one external programming resistor. it asserts an open-collector output when the ambient temperature exceeds the user-programmed set point temperature.
User-programmable temperature set point
4.1°C typical hysteresis
Low power dissipation
4.1°C typical hysteresis
Low power dissipation
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Sensor Function | Temperature |
| Output Type | Open Collector |
| Accuracy | ±2.0°C |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Operating Temperature Range | -40 → 150°C °C |
| Package Type | SOIC |
