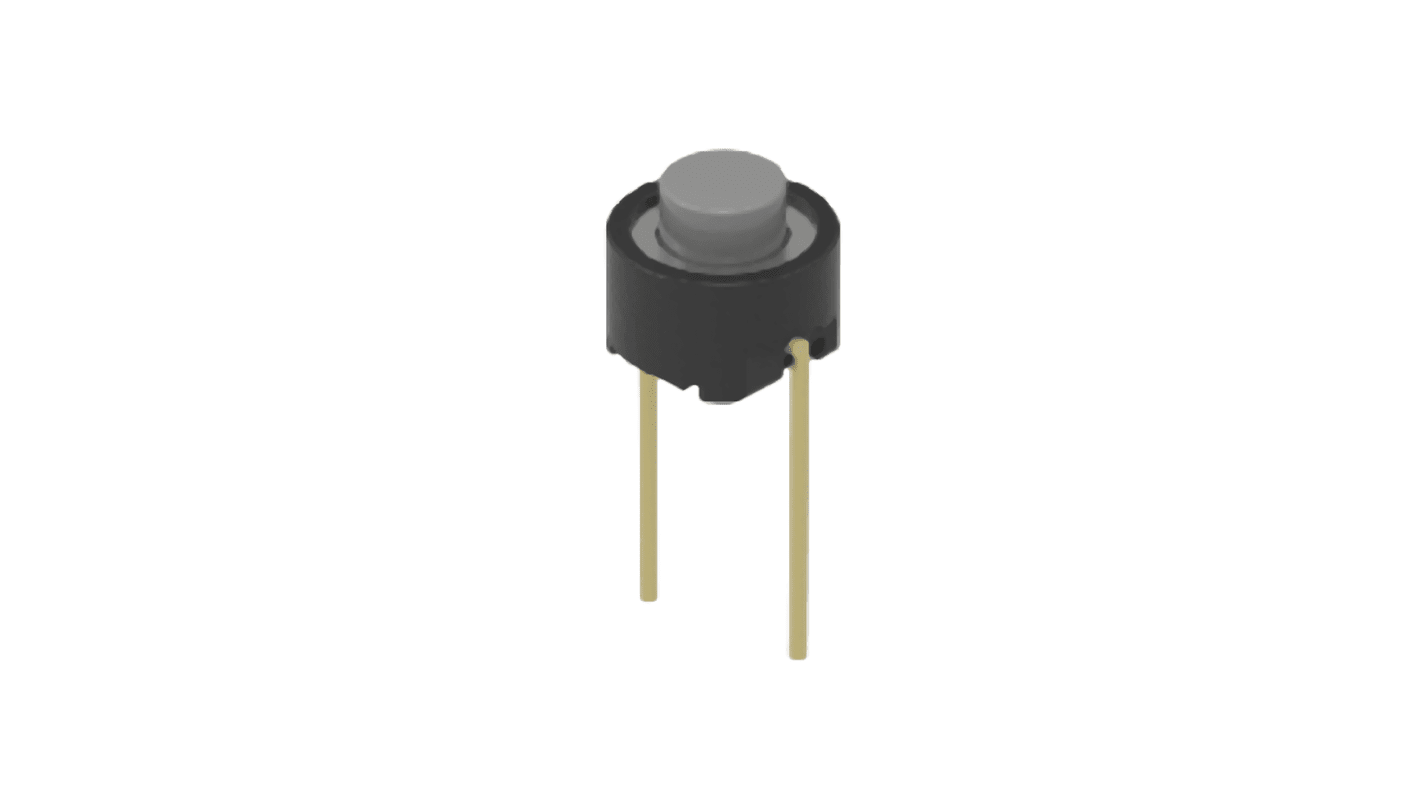

Grey Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 1.4mm Through Hole

  • RS Stock No. 917-4144
  • Mfr. Part No. SKRGAFD010
  • Manufacturer Alps Alpine
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Alps SKRG Series Tactile Switch

Alps Tactile or Tact switches are SPST snap action switches to be used with small currents. This series also provide a minimum rating of 10 μA at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels.

Suitable for use in a wide variety of applications, such as audio & visual equipment and automotive applications.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.

Tactile

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Pc Pin
Switch Operation Momentary
Actuator Length 1.4mm
Actuator Colour Grey
Actuator Type Button
Width 6.2 (Dia.)mm
Dimensions 6.2 (Dia.)mm
Mounting Type Through Hole
Contact Current Rating 50 mA
Operating Force 2.55 N
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +90°C
Voltage Rating 12V dc
Maximum Operating Temperature +90°C
530 : Next working day (AU stock)
290 : 5 working days (Global stock)
Price (ex. GST) Each (In a Bag of 10)
$ 0.275
(exc. GST)
$ 0.303
(inc. GST)
units
Per unit
Per Bag*
10 - 40
$0.275
$2.75
50 - 90
$0.226
$2.26
100 - 240
$0.221
$2.21
250 - 490
$0.217
$2.17
500 +
$0.213
$2.13
*price indicative
