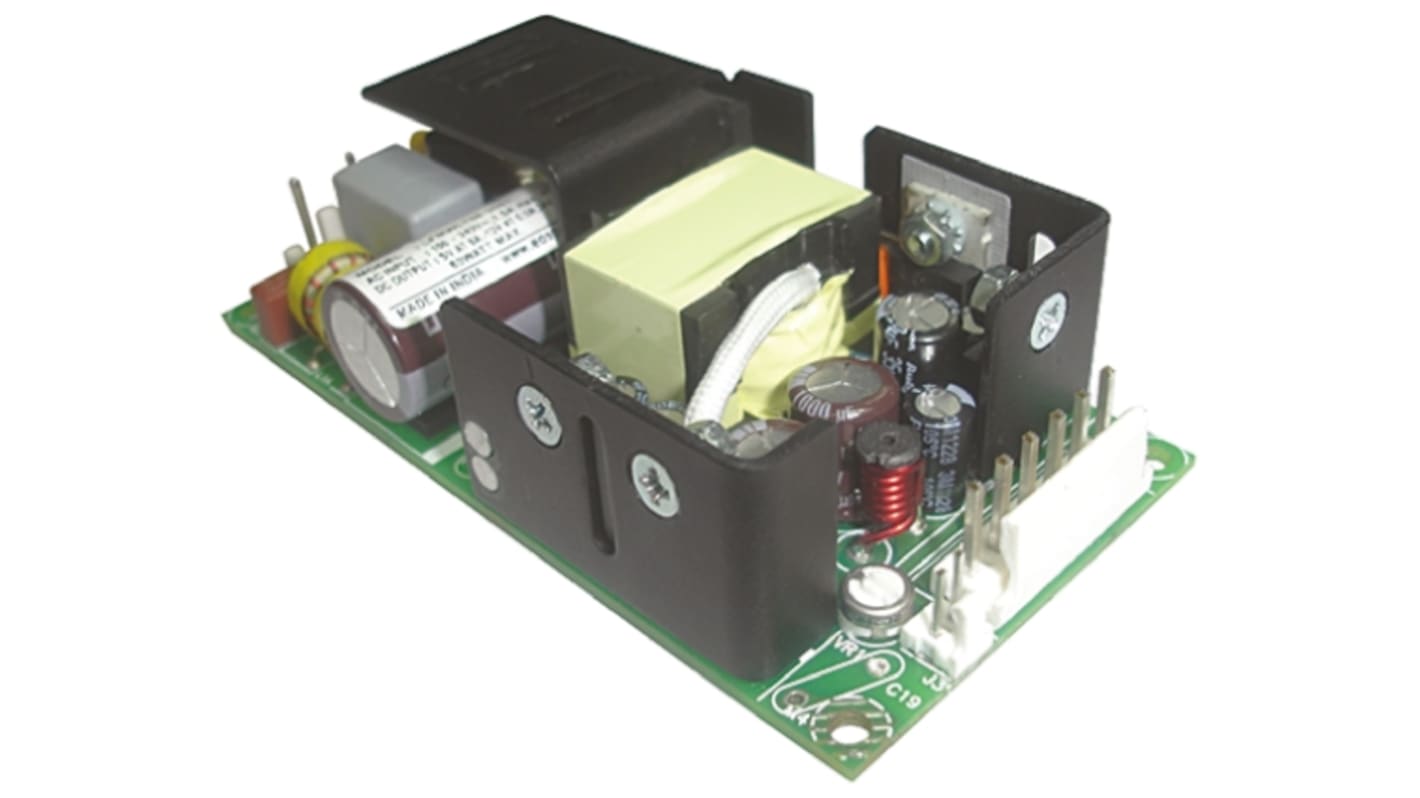

EOS Switching Power Supply, LFWLT40-3001, 5.2 V dc, 23.8 V dc, 1 A, 6 A, 500 mA, 40W, Triple Output, 90 → 264V
- RS Stock No.:
- 771-0717
- Mfr. Part No.:
- LFWLT40-3001
- Brand:
- EOS
On back order for despatch 24/01/2025, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$148.87
(exc. GST)
$163.76
(inc. GST)
| Units | Per unit |
| 1 - 9 | $148.87 |
| 10 - 49 | $143.70 |
| 50 + | $136.96 |
- RS Stock No.:
- 771-0717
- Mfr. Part No.:
- LFWLT40-3001
- Brand:
- EOS
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
40W to 60W Switch Mode Power Supplies, WLT40 and WLT60 Series
The Eos Power WLT40 and WLT60 series are 40 W and 60 W, open frame, switch mode power supplies with universal inputs. They are compact in size (4x2 inches, 100x50mm) and offer high efficiency of up to 85%. The WLT40 and WLT60 are suitable for industrial and automation applications.
4 x 2 x 1.2 inches
Ultra high efficiency up to 85%
Low conducted and radiated noise
No load power <0.3 W
Cover kit accessory available, RS Stock no 771-0818
Ultra high efficiency up to 85%
Low conducted and radiated noise
No load power <0.3 W
Cover kit accessory available, RS Stock no 771-0818
Standards
IEC60950-1, EN60950-1, UL60950-1, CSA C22.2 No. 60950-1, Class 1 SELV
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5.2 V dc, 23.8 V dc |
| Output Current | 1 A, 6 A, 500 mA |
| Power Rating | 40W |
| Number of Outputs | 3 |
| Input Voltage | 90 → 264V ac |
| Mounting Type | Chassis Mount |
| Package Type | Open Frame |
| Length | 101.6mm |
| Width | 50.8mm |
| Depth | 30.48mm |
| Efficiency | 85% |
| Maximum Temperature | +70°C |
| Minimum Temperature | -20°C |
| Weight | 150g |
