Vox Power Switching Power Supply, Nevo+600S-2-2-2-2, 12V dc, 15A, 600W, Quad Output, 120 → 370 V dc, 85 →
- RS Stock No.:
- 753-8098
- Mfr. Part No.:
- Nevo+600S-2-2-2-2
- Brand:
- Vox Power
View all Switching Power Supplies
16 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$1,387.55
(exc. GST)
$1,526.31
(inc. GST)
units | Per unit |
1 - 9 | $1,387.55 |
10 - 49 | $1,338.96 |
50 + | $1,276.55 |
- RS Stock No.:
- 753-8098
- Mfr. Part No.:
- Nevo+600S-2-2-2-2
- Brand:
- Vox Power
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

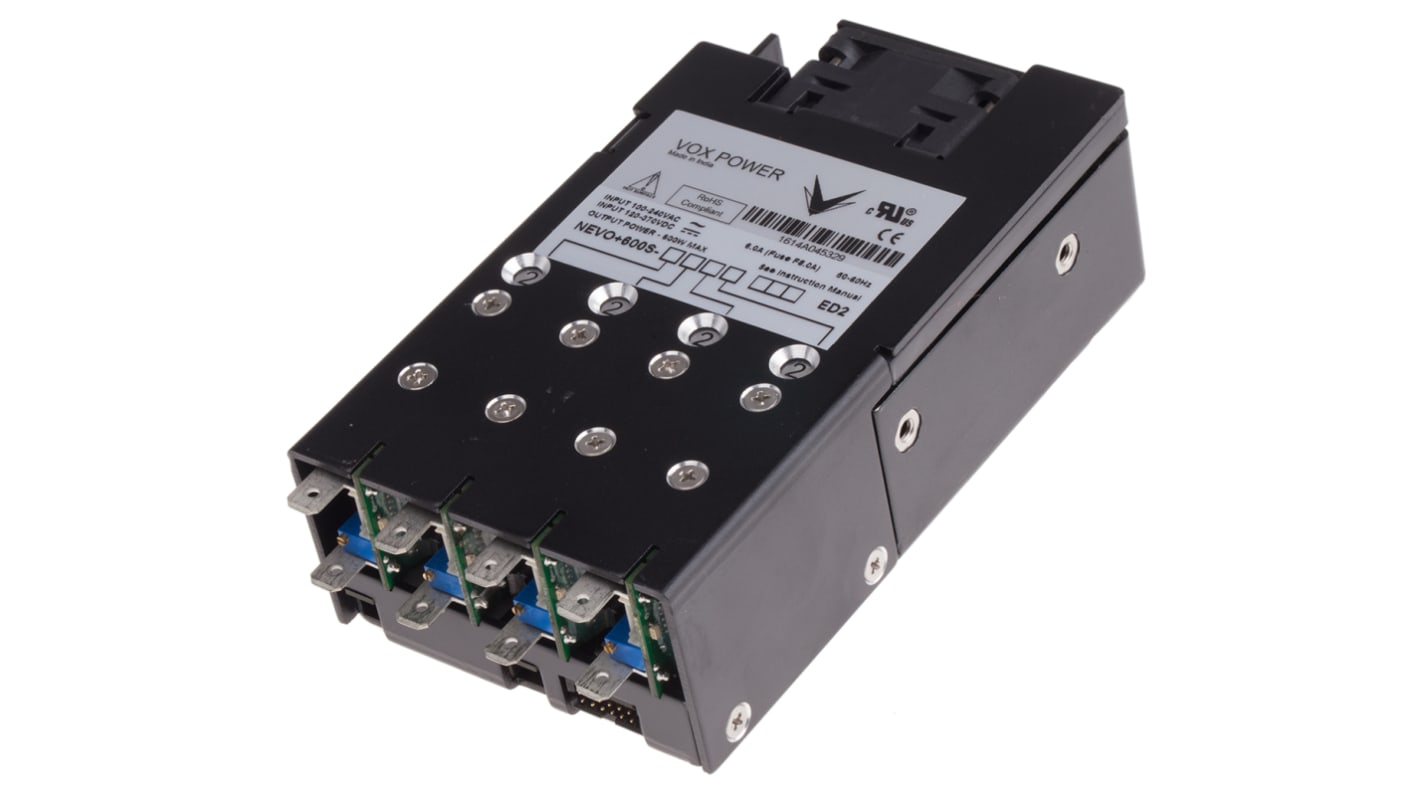

Vox Power 600 W Pre-Configured Modular AC-DC Power Supply - NEVO+600S-2-2-2-2
NEVO+600S 600 W pre‐configured enclosed modular power supply with a compact 5 x 3 inches x 1 U footprint. Delivering a full 600 W at line voltages of ≥ 120 V ac. Each of these 600 W modular power supplies consists of an input module together with four isolated output modules. They can be connected in series or in parallel to provide higher voltage or current outputs (see table for details). The NEVO+600S module utilises a noise reduction fan through the implementation of a control circuit. The fan speeds up and slows down with variations in temperature and loading which is critical in many applications.
Typical applications supplies include test and measurement, LED lighting, factory automation, Broadcast equipment, industrial lasers and optical inspection.
Typical applications supplies include test and measurement, LED lighting, factory automation, Broadcast equipment, industrial lasers and optical inspection.
Features and benefits
Vox Power Configured Product Solution
Total Output Power: 600 Watts
Number of Outputs: 4
Voltage Range (Each Output): 4.5V To 15V
AC Range: 85VAC To 264VAC
Output Power of each module: 150W
Use Accessory Par4Link (753-8072) To Parallel Connect Modules
Total Output Power: 600 Watts
Number of Outputs: 4
Voltage Range (Each Output): 4.5V To 15V
AC Range: 85VAC To 264VAC
Output Power of each module: 150W
Use Accessory Par4Link (753-8072) To Parallel Connect Modules
Note
Derate power above 50°C
Derate power below 120 V ac line voltage
For series links see stock number 753-8076
For parallel links see stock numbers 753-8060, 753-8079 and 753-8072
For cable sets see stock numbers 753-8082 and 753-8091
For I2C interface see stock number 753-8066
For S-Track interface see stock number 753-8063
For module blanking plate see stock number 753-8038
Derate power below 120 V ac line voltage
For series links see stock number 753-8076
For parallel links see stock numbers 753-8060, 753-8079 and 753-8072
For cable sets see stock numbers 753-8082 and 753-8091
For I2C interface see stock number 753-8066
For S-Track interface see stock number 753-8063
For module blanking plate see stock number 753-8038
Standards
IEC 60950-1(ed.2), IEC 60950-1(ed.2); am1, IEC 60950-1(ed.2); am2
Switch Mode - Vox Power 600W, NEVO600 Series
Specifications
Attribute | Value |
Output Voltage | 12V dc |
Output Current | 15A |
Power Rating | 600W |
Number of Outputs | 4 |
Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
Mounting Type | Chassis Mount |
Package Type | Enclosed |
Length | 129.7mm |
Width | 77.7mm |
Depth | 41mm |
Efficiency | 89% |
Weight | 600g |
Maximum Temperature | +85°C |
Minimum Temperature | -40°C |
