    Vox Power Switching Power Supply, NEVO+1200S, 1.5 → 7.5V dc, 1A, 1200W, 8 Output, 120 → 370 V dc, 85

    Vox Power
    RS Stock No.:
    816-0169
    Mfr. Part No.:
    NEVO+1200S
    Brand:
    Vox Power
    View all Switching Power Supplies
    4 In Global stock for delivery within 10 working day(s)
    Add to Basket
    units

    Added

    Price (ex. GST) Each

    $1,122.10

    (exc. GST)

    $1,234.31

    (inc. GST)

    unitsPer unit
    1 - 9$1,122.10
    10 - 49$1,082.81
    50 +$1,032.33
    RS Stock No.:
    816-0169
    Mfr. Part No.:
    NEVO+1200S
    Brand:
    Vox Power

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    CN

    Product Details

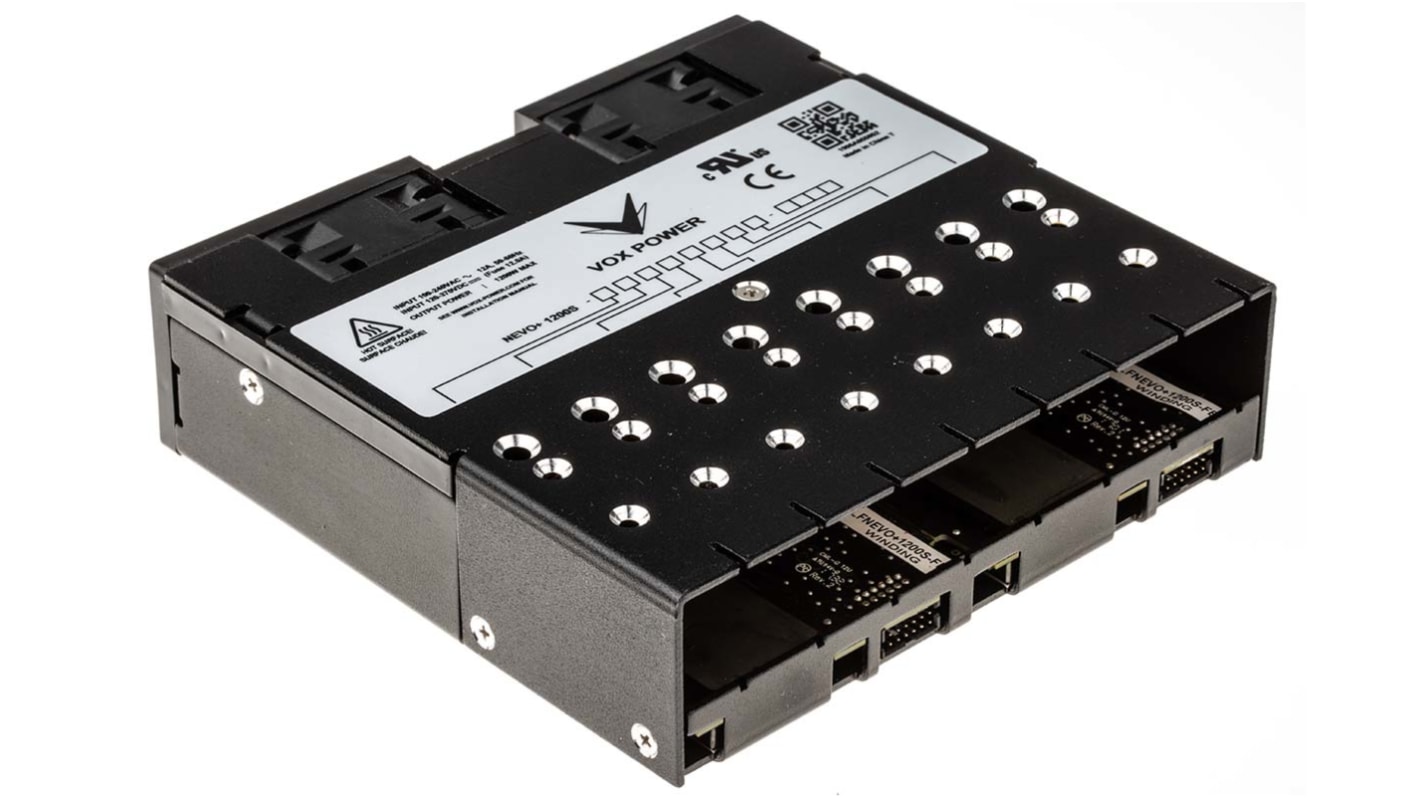

    Vox Power AC To DC Power Supply


    The Vox NEVO+1200S series 1200W octa output isolated modular power supply has an output current rating of 1A at 4.8VDC to 5.2VDC. It has a universal input supply voltage rating from 85VAC to 264VAC. It is an ideal power solution for applications where size and weight are essential aspects. The power supply consists of an input module with 8 slots, where any combination of outputs can be fitted to create a power solution with up to 16 isolated outputs. It boasts maximum power for its minimum size packaged in an amazing 6 x 6in profile. The power supply delivers more than 22W per cubic inch.

    Features and Benefits


    Accurate current sharing
    Current output signal
    Field configurable
    High power density
    Primary side remote ON/OFF
    Remote current/voltage programming
    Use any combination of modules 1,2,3,4,5 and 8 in slots A through H

    Certifications


    EN550022-B EMC
    EN61000-3
    EN61000-4
    IEC 60950-1(ed.2)
    IEC 60950-1(ed.2)

    am1
    IEC 60950-1(ed.2)

    am2


    Specifications

    AttributeValue
    Output Voltage1.5 → 7.5V dc
    Output Current1A
    Power Rating1200W
    Number of Outputs8
    Input Voltage120 → 370 V dc, 85 → 264V ac
    Mounting TypeRack Mount
    Package TypeFront End
    Length152.4mm
    Width41mm
    Depth146.75mm
    Maximum Temperature+50°C
    Minimum Temperature-20°C
    Weight720g
