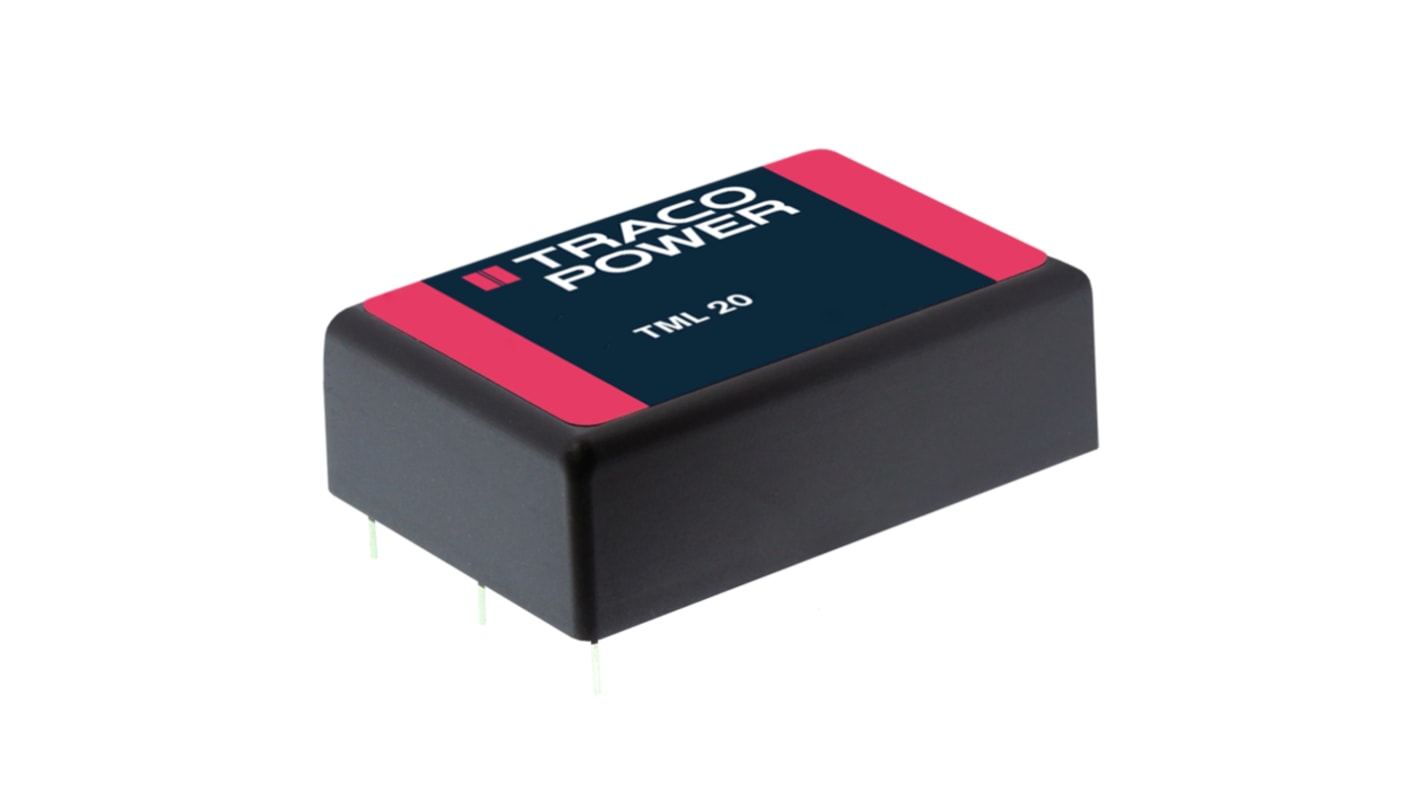

TRACOPOWER Switching Power Supply, TML 20515, 5 V dc, ±15 V dc, 2.8 A, 200mA, 20W, Triple Output, 100 → 375 V

RS Stock No.:: 706-6088
Mfr. Part No.:: TML 20515
Brand:: TRACOPOWER

TRACOPOWER Switching Power Supply, TML 20515, 5 V dc, ±15 V dc, 2.8 A, 200mA, 20W, Triple Output, 100 → 375 V

Bulk discount available

Price (ex. GST) Each

$101.53

(exc. GST)

$111.68

(inc. GST)

Stock check temporarily unavailable - call for stock availability

FREE delivery for orders over $80.00 ex GST

Units	Per unit
1 - 9	$101.53
10 - 49	$97.99
50 +	$93.45

RS Stock No.:: 706-6088
Mfr. Part No.:: TML 20515
Brand:: TRACOPOWER

Traco 14.9W to 40W, PCB/Chassis Mount, Encapsulated, Switch Mode AC-DC Power Supply - TML Series

Ultra compact fully encapsulated power supplies with increased power density
PCB mount with solder pins or chassis mount with screw terminals
EMI meets EN 55022, class B and FCC, level B
Safety Class I (Class II, TML40 models only)
Short circuit and overload protection

Note

Chassis mounting types available, see Manufacturer Part numbers with a 'C' suffix.
Power derating above 50°C is 3% per °C.
MTBF to MIL-HDBK-217F (25°C).

Standards

UL 60950-1, IEC 60950-1, EN 60950-1

Approvals

UL Recognised Component for Canada & US

TRACOPOWER TML Series Switching Power Supply, 2.8A/200 mA Output Current, 20W Power Rating - TML 20515

This compact switching power supply ensures efficient power conversion for diverse electronic applications. Its encapsulated design allows for PCB mount and chassis installations while maintaining high efficiency and performance across a broad voltage range, making it suitable for automation and industrial projects.

Features & Benefits

• Accommodates a wide input voltage range for versatile applications
• Delivers an output of 5 V DC with various current options
• Energy-efficient design with up to 84% conversion performance
• Encapsulated construction enhances durability and reliability
• Incorporates overvoltage and short-circuit protection for added safety
• Provides dual output capability for flexible power distribution

Applications

• Suitable for PCB mounted designs in automation systems
• Ideal for dual output use in industrial equipment
• Applicable for various electronic devices needing compact power solutions
• Useful in a range of needing high-density power supply

What input voltages are compatible with this power supply?

It accepts input voltages from 100 to 375 V DC and 90 to 264 V AC.

How does this device handle overloading conditions?

It features short-circuit protection that allows automatic recovery after faults.

Can it be installed in confined spaces?

Yes, its compact design enables installation in space-restricted areas.

What are the operational temperature limits for this unit?

It operates effectively between -25°C and +60°C, ensuring reliability in diverse conditions.

Is it suitable for sensitive electronic applications?

Yes, it complies with EMI standards, ensuring minimal interference with sensitive electronics.

Attribute	Value
Output Voltage	5 V dc, ±15 V dc
Output Current	2.8 A, 200mA
Power Rating	20W
Number of Outputs	3
Input Voltage	100 → 375 V dc, 90 → 264 V ac
Mounting Type	PCB Mount
Package Type	Encapsulated
Length	70mm
Width	48mm
Depth	22mm
Efficiency	74 → 84%
Series	TML
Weight	110g
Maximum Temperature	+70°C
Minimum Temperature	-25°C
