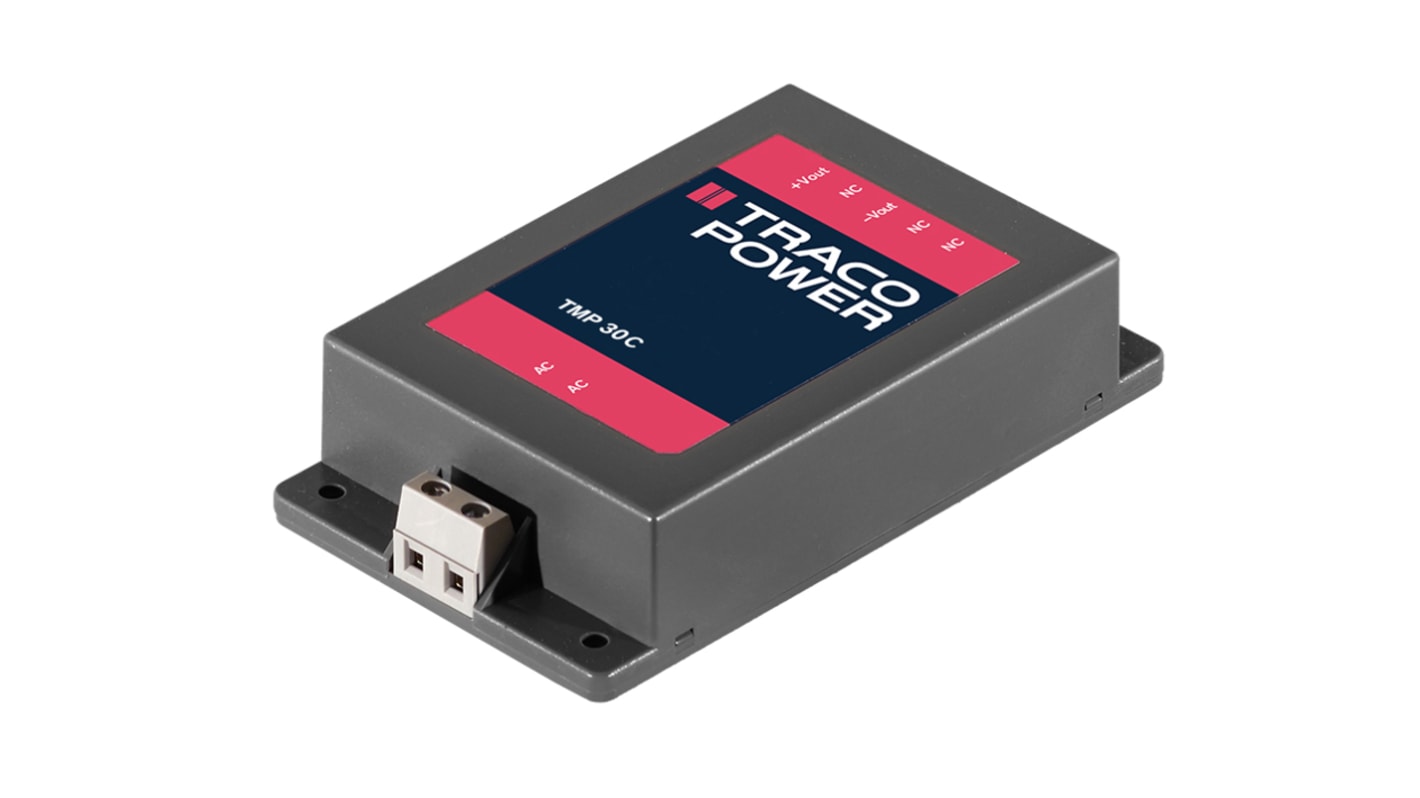

TRACOPOWER Switching Power Supply, TMP 30515C, 5 V dc, ±15 V dc, 3 A, 500mA, 30W, Triple Output, 120 → 370 V dc,
- RS Stock No.:
- 664-1519
- Mfr. Part No.:
- TMP 30515C
- Brand:
- TRACOPOWER
84 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$150.64
(exc. GST)
$165.70
(inc. GST)
Units | Per unit |
1 - 4 | $150.64 |
5 - 9 | $148.05 |
10 - 24 | $144.14 |
25 - 49 | $140.26 |
50 + | $136.64 |
- RS Stock No.:
- 664-1519
- Mfr. Part No.:
- TMP 30515C
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco Power Switching Power Supply, 440 Hz Maximum Input Frequency, 76% Efficiency - TMP-C Series - TMP 30515C
Need to adapt your electricity source to suit your equipment? This encapsulated switching power supply from Traco Power acts as the middleman between your input and a device. It converts universal voltages between 85 and 264V AC into reliably regulated DC outputs. Thanks to the unit's three feeds, you can activate three separate circuits at once using 5, +15 and -15V DC voltages. Because the first output is isolated from the other two, you get safe and precise control over your setup.
Features & Benefits
• Turns on in just 400ms, giving you a lightning-fast response
• Chassis-mount design with a screw terminal block connection for speedy installation
• Performs in demanding conditions thanks to its wide -25°C to +60°C operating temperature range
• Chassis-mount design with a screw terminal block connection for speedy installation
• Performs in demanding conditions thanks to its wide -25°C to +60°C operating temperature range
Applications
• Telecommunication networks
• Audiovisual systems
• Medical sector
• Automotive industry
• Audiovisual systems
• Medical sector
• Automotive industry
Can I mount this power supply onto a DIN rail?
Yes, if you want to mount the supply on a rail, you can quickly adapt it with a kit (666-2780).
How big is this power supply?
This switching power supply has dimensions of 112 (L) x 63.8 (W) x 25.6mm (D), so it's a good option for compact setups.
Switch Mode - Traco, TMP and TMPM Series
Specifications
Attribute | Value |
---|---|
Output Voltage | 5 V dc, ±15 V dc |
Output Current | 3 A, 500mA |
Power Rating | 30W |
Number of Outputs | 3 |
Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
Mounting Type | Chassis Mount |
Package Type | Encapsulated |
Length | 112mm |
Width | 63.8mm |
Depth | 25.6mm |
Efficiency | 76% |
Series | TMP |
Weight | 208g |
Minimum Temperature | -25°C |
Maximum Temperature | +70°C |
