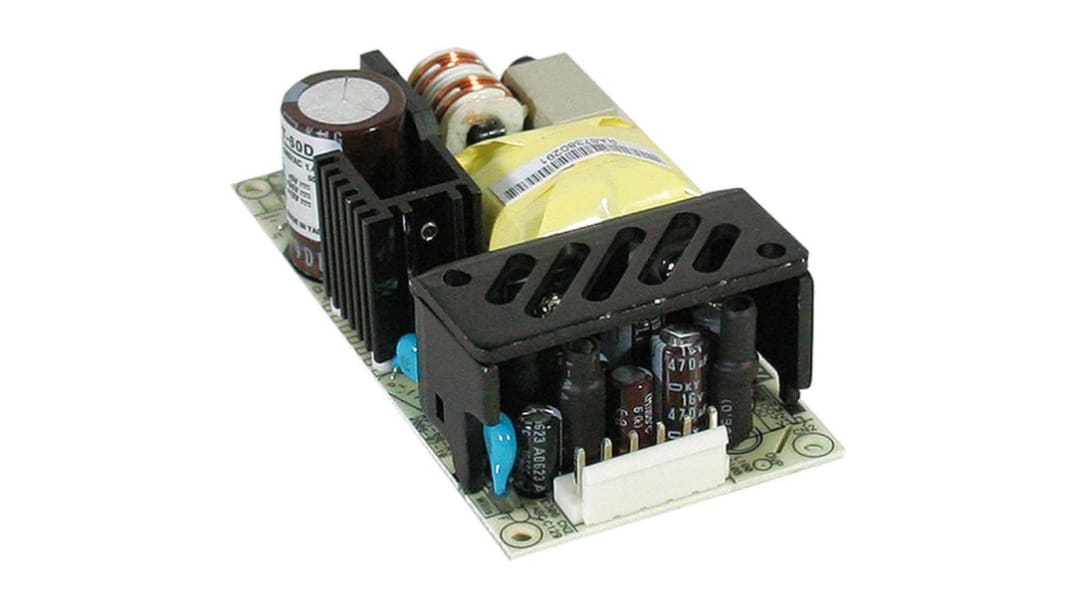

MEAN WELL Switching Power Supply, RPT-60A, ±5 V dc, ±12 V dc, 2 A, 4 A, 500mA, 46.5W, Triple Output, 127 → 370 V
- RS Stock No.:
- 644-7196
- Mfr. Part No.:
- RPT-60A
- Brand:
- MEAN WELL
11 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$35.84
(exc. GST)
$39.42
(inc. GST)
| Units | Per unit |
| 1 - 9 | $35.84 |
| 10 - 49 | $35.40 |
| 50 + | $34.57 |
- RS Stock No.:
- 644-7196
- Mfr. Part No.:
- RPT-60A
- Brand:
- MEAN WELL
Technical data sheets
Legislation and Compliance
Product Details
RPT-60 Series, Universal Input, 2x4inch, Triple Output
Miniature size 2x4 inch, high power density
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Medical safety approved
Low leakage current <200μA
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, overload and overvoltage protection
10% extra 'peak current' rating for 10 seconds, on all outputs
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Medical safety approved
Low leakage current <200μA
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, overload and overvoltage protection
10% extra 'peak current' rating for 10 seconds, on all outputs
Note
De-rating 2% per°C above 40°C.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
Approvals
TUV, CB, UL recognised component for Canada & US
Standards
EN 60601-1, UL 60601-1
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±5 V dc, ±12 V dc |
| Output Current | 2 A, 4 A, 500mA |
| Power Rating | 46.5W |
| Number of Outputs | 3 |
| Input Voltage | 127 → 370 V dc, 90 → 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Open Frame |
| Length | 101.6mm |
| Width | 50.8mm |
| Medical Approved | Yes |
| Depth | 29mm |
| Weight | 150g |
| Minimum Temperature | -20°C |
| Maximum Temperature | +65°C |
