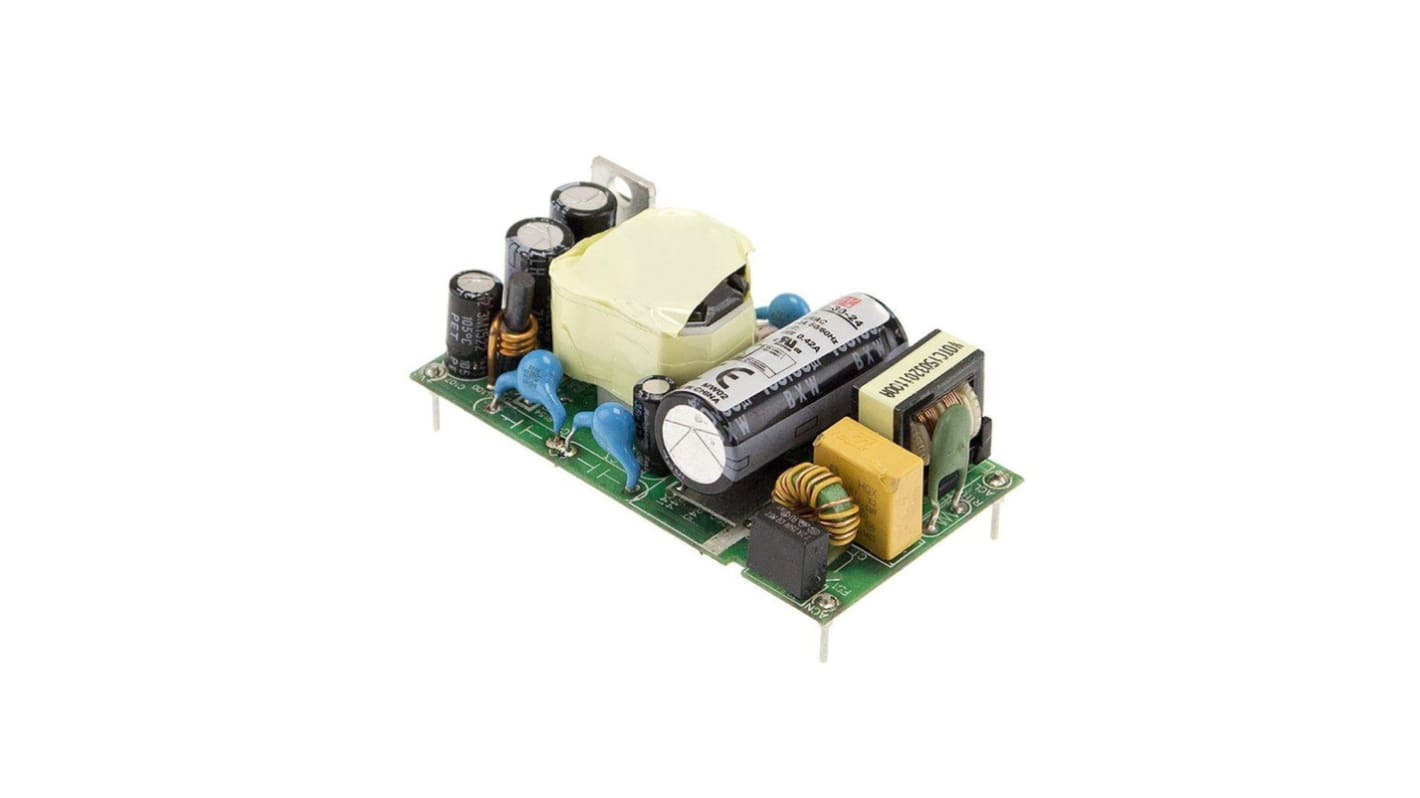

MEAN WELL Switching Power Supply, MFM-30-3.3, 3.3V dc, 6A, 19.8W, 1 Output, 80 → 264V ac Input Voltage
- RS Stock No.:
- 174-8042
- Mfr. Part No.:
- MFM-30-3.3
- Brand:
- MEAN WELL
On back order for despatch 19/09/2024, delivery within 10 working days from despatch date.
Price (ex. GST) Each
$30.60
(exc. GST)
$33.66
(inc. GST)
Units | Per unit |
1 - 9 | $30.60 |
10 - 49 | $29.94 |
50 + | $29.05 |
- RS Stock No.:
- 174-8042
- Mfr. Part No.:
- MFM-30-3.3
- Brand:
- MEAN WELL
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
2.58"x1.38" compact size
Suitable for BF application with appropriate system consideration
No load power consumption<0.075W
Extremely low leakage current
Wide operating temp. Range -40 ∼ +85℃
EMI class B for class Ⅱ configuration
Protections:
Short circuit / Overload / Over voltage / Over temperature
No minimum load required
3 years warranty
Suitable for BF application with appropriate system consideration
No load power consumption<0.075W
Extremely low leakage current
Wide operating temp. Range -40 ∼ +85℃
EMI class B for class Ⅱ configuration
Protections:
Short circuit / Overload / Over voltage / Over temperature
No minimum load required
3 years warranty
AC-DC Single output Medical Open frame power supply. Output 3.3Vdc at 6A, PCB mount, 2xMOPP
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Output Voltage | 3.3V dc |
Output Current | 6A |
Power Rating | 19.8W |
Number of Outputs | 1 |
Input Voltage | 80 → 264V ac |
Mounting Type | PCB Mount |
Length | 65.5mm |
Width | 35mm |
Medical Approved | Yes |
Depth | 18.5mm |
Maximum Temperature | +85°C |
Weight | 53g |
Minimum Temperature | -40°C |
