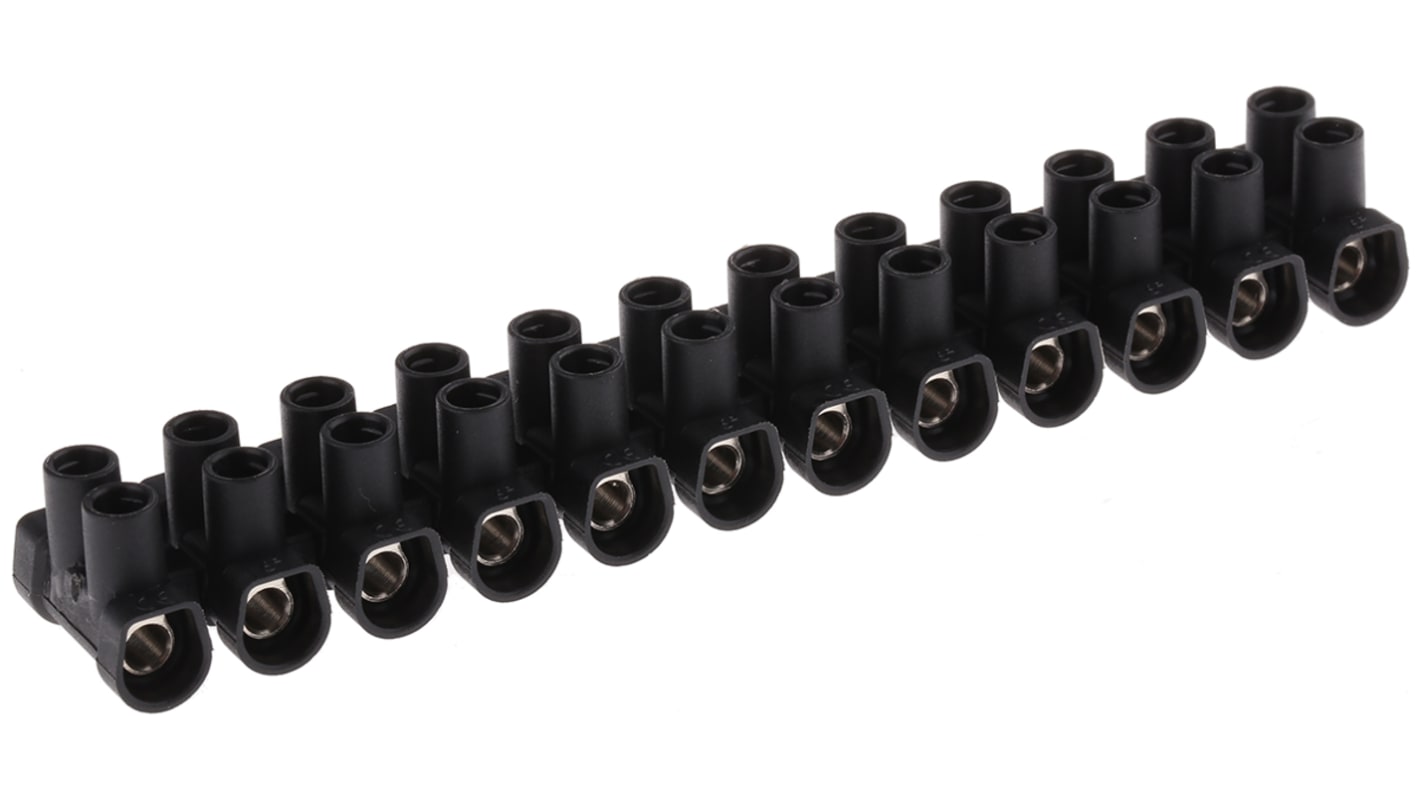

CAMDENBOSS Terminal Strip, 41A, 6 mm² Wire, Screw Termination
- RS Stock No.:
- 716-7349
- Mfr. Part No.:
- CTSOS433/12BK/RS
- Brand:
- CAMDENBOSS
21 In AU stock for next working day delivery
385 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$3.16
(exc. GST)
$3.48
(inc. GST)
Units | Per unit |
|---|---|
| 1 - 9 | $3.16 |
| 10 - 49 | $3.12 |
| 50 + | $3.08 |
- RS Stock No.:
- 716-7349
- Mfr. Part No.:
- CTSOS433/12BK/RS
- Brand:
- CAMDENBOSS
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- ES
Product Details
Easy Break Terminal Strip
Easily snapped to required numbered of poles
No remaining burrs
No tools needed to cut to length
Moulded in black
UL94-V2 self-extinguishing PA6
Supplied with screws in raised position
12 poles
Halogen-free
No remaining burrs
No tools needed to cut to length
Moulded in black
UL94-V2 self-extinguishing PA6
Supplied with screws in raised position
12 poles
Halogen-free
Specifications
Attribute | Value |
|---|---|
| Current Rating | 41A |
| Wire Size | 6 mm² |
| Termination Method | Screw |
| Fused | No |
| Material | POLYPROPYLENE |
| Pitch | 10mm |
| Voltage Rating | 450 V ac |
| Cable CSA | 6mm² |
| Colour | Black |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +110°C |
