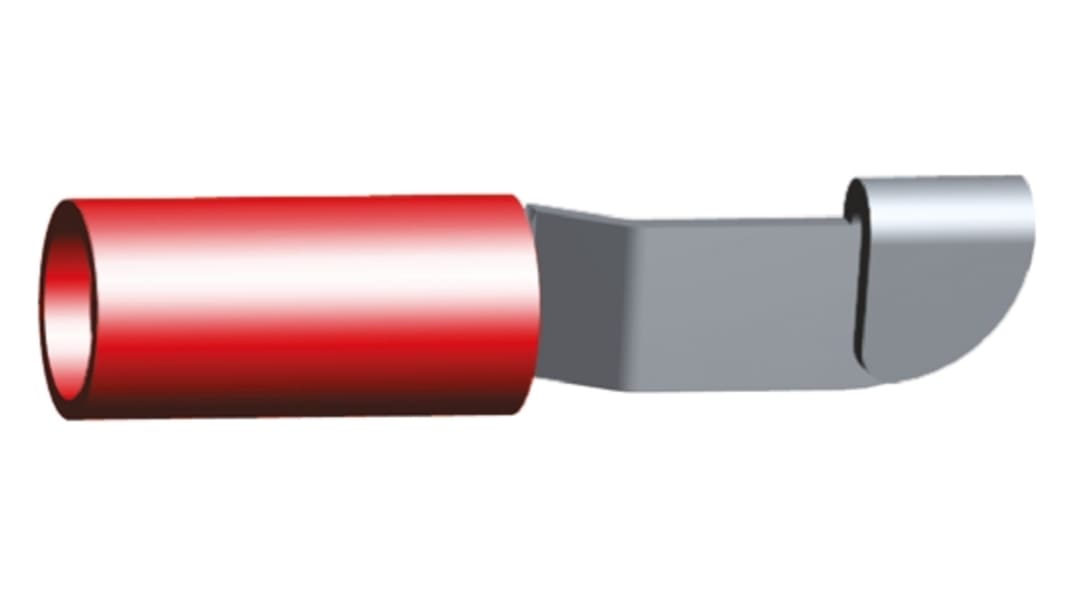

TE Connectivity Knife Disconnect Splice Connector, Red, Insulated, Tin 22 → 16 AWG
- RS Stock No.:
- 669-2337
- Mfr. Part No.:
- 32446
- Brand:
- TE Connectivity
100 In stock for delivery within 1 working day(s)
Added
Price (ex. GST) Each (In a Pack of 50)
$1.315
(exc. GST)
$1.447
(inc. GST)
| Units | Per unit | Per Pack* |
| 50 - 200 | $1.315 | $65.75 |
| 250 - 1200 | $1.292 | $64.60 |
| 1250 + | $1.063 | $53.15 |
| *price indicative | ||
- RS Stock No.:
- 669-2337
- Mfr. Part No.:
- 32446
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
TE Connectivity PIDG Knife Disconnect Wire Crimp Terminal
PIDG knife disconnect wire crimp terminals consisting of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG knife disconnect wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
Red 0.3 - 1.4 mm²
Blue 1.25 - 2.50 mm²
Yellow 3 - 6 mm²
Blue 1.25 - 2.50 mm²
Yellow 3 - 6 mm²
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
TE Connectivity PIDG Terminals
Specifications
Attribute | Value |
|---|---|
| Splice Type | Knife Disconnect |
| Wire Size | 22 → 16 AWG |
| Overall Length | 22.3mm |
| Insulation | Insulated |
| Colour | Red |
| Insulation Material | Nylon |
| Contact Material | Copper |
| Contact Plating | Tin |
