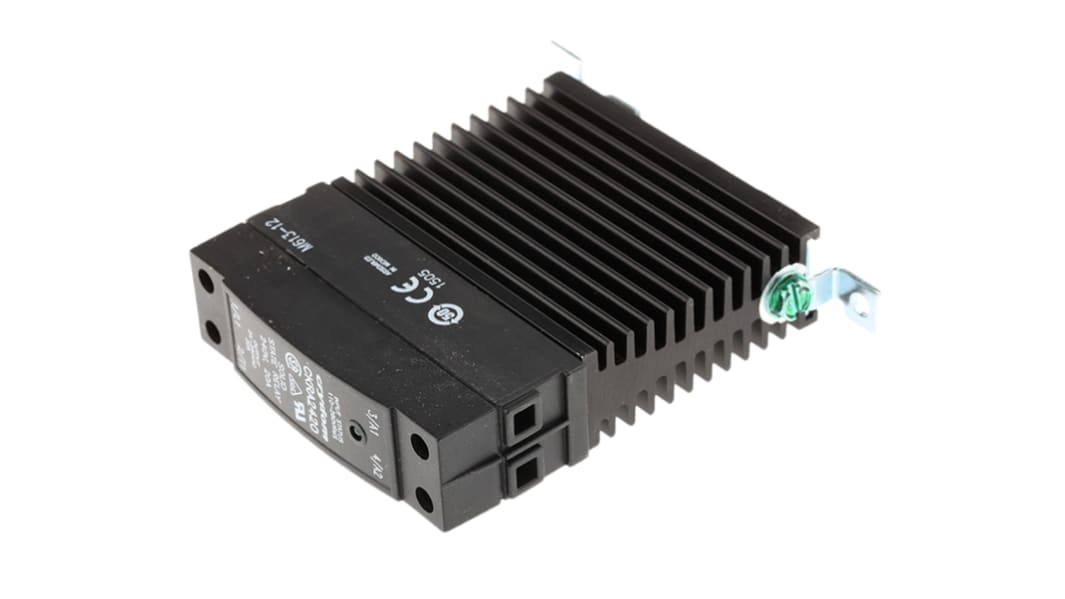

Sensata / Crydom CKR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 280 V rms Load, 280 V rms Control

RS Stock No.:: 361-7819
Mfr. Part No.:: CKRA2420
Brand:: Sensata / Crydom

Sensata / Crydom CKR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 280 V rms Load, 280 V rms Control

Stock check temporarily unavailable - call for stock availability

Added

Price (ex. GST) Each

$158.06

(exc. GST)

$173.87

(inc. GST)

Units	Per unit
1 - 11	$158.06
12 - 24	$156.10
25 +	$153.08

RS Stock No.:: 361-7819
Mfr. Part No.:: CKRA2420
Brand:: Sensata / Crydom

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: MX

Product Details

Sensata | Crydom Solid-State Relay, 10ms Turn-On Time, DIN Rail Mounting - CKR Series - CKRA2420

Make or break your circuit with lighting speed using this solid-state relay from Sensata | Crydom. Thanks to its maximum turn-on time of 10ms and turn-off time of 40ms, you can rest assured that it swiftly switches power to your device. As it converts an electrical signal to an optical one, this unit doesn't have any moving parts, reducing the risk of mechanical wear for a longer lifespan. Its thermally conductive epoxy case means it can stand the heat in demanding conditions. Use it in data centres or medical equipment.

• Wide operating temperature range between -40°C and +80°C for use in harsh industrial environments
• Designed for mounting on a DIN rail for tool-free installation
• Box clamp terminals for secure wiring

What's the control voltage range of this relay?

This relay has a wide control voltage range between 110 and 280V AC, so it's compatible with many electrical systems.

How do I check the operating status of this relay?

A built-in LED indicator gives the green light when your SSR is on for easy status monitoring.

Approvals

UL E116950; CSA LR81689; VDE 129156UG; CE; ISO

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Specifications

Attribute	Value
Maximum Load Current	20 A rms
Mounting Type	DIN Rail
Maximum Load Voltage	280 V rms
Maximum Control Voltage	280 V rms
Minimum Control Voltage	110 V ac
Switching Type	Zero Cross
Control Voltage Range	90 → 280 V ac
Minimum Load Current	0.15 A
Terminal Type	Box Clamp
Output Device	SCR
Maximum Turn On Time	1/2 Cycle
Load Voltage Range	24 → 280V ac
Series	CKR
Dimensions	81.9 x 22.5 x 99mm
Depth	22.5mm
Off State Leakage Current	10 mArms
Length	81.9mm
Operating Temperature Range	-40 → +80°C
Minimum Operating Temperature	-40°C
Height	99mm
Standards Met	CE
Capacitance	8pF
Maximum Operating Temperature	+80°C
