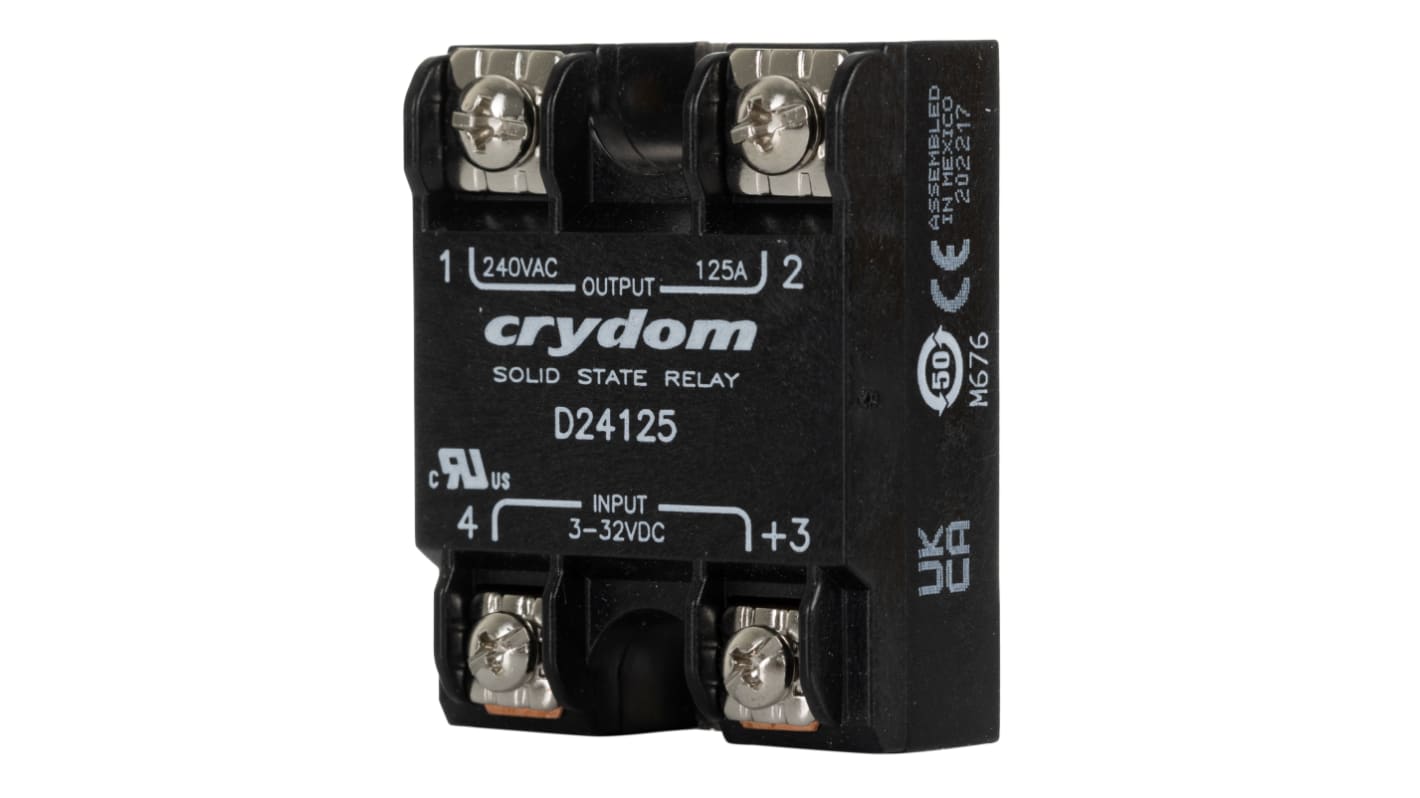

Sensata / Crydom SERIES 1 Series Solid State Relay, 125 A rms Load, Surface Mount, 280 V rms Load, 32 V Control
- RS Stock No.:
- 244-9053
- Mfr. Part No.:
- D24125
- Brand:
- Sensata / Crydom
14 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$213.10
(exc. GST)
$234.41
(inc. GST)
| Units | Per unit |
| 1 - 5 | $213.10 |
| 6 - 11 | $208.86 |
| 12 + | $204.13 |
- RS Stock No.:
- 244-9053
- Mfr. Part No.:
- D24125
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Sensata | Crydom Solid-State Relay, 4 to 32V DC Control Voltage Range, 150mA to 125A Load Current Range - Series 1 - D24125
Be sure of robust performance with this solid-state relay from Sensata | Crydom. The device automatically switches circuits on or off, helping to streamline your operations. As there are no moving parts, the unit experiences minimal wear, so you can rely on it to last. It features zero-cross switching, so it keeps noise to a minimum by switching on when the voltage is close to 0V. The SCR output can stand up to the demands of heavy-duty loads. Use this component with consumer electronics and medical equipment.
• Broad control voltage range between 4 and 32V DC for versatility
• Rated load current of 125A for use in high-power applications
• Wide operating temperature range between -40°C and +80°C for use in harsh conditions
• Turn-on and turn-off time of half a cycle for switching in a flash
• Rated load current of 125A for use in high-power applications
• Wide operating temperature range between -40°C and +80°C for use in harsh conditions
• Turn-on and turn-off time of half a cycle for switching in a flash
How do I install this SSR?
It's designed for mounting on a panel and has anti-rotation barriers that help to ensure it stays in place in the event of heavy vibrations.
Approvals
UL; CSA; VDE
Crydom Solid State Relay and Accessories
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 125 A rms |
| Mounting Type | Surface Mount |
| Maximum Load Voltage | 280 V rms |
| Maximum Control Voltage | 32 V |
| Minimum Control Voltage | 3 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 150 mA |
| Terminal Type | Faston |
| Output Device | SCR |
| Relay Type | Solid State Relay |
| Series | SERIES 1 |
| Maximum Turn On Time | 1/2 Cycle |
| Load Voltage Range | 24 → 280V ac |
| Dimensions | 58.4 x 45.7 x 23mm |
| Standards Met | CE |
| Off State Leakage Current | 1 mArms |
| Length | 58.4mm |
| Operating Temperature Range | -40 → +80°C |
| Capacitance | 8pF |
| Height | 23mm |
| Depth | 45.7mm |
