- RS Stock No.:
- 789-7555
- Mfr. Part No.:

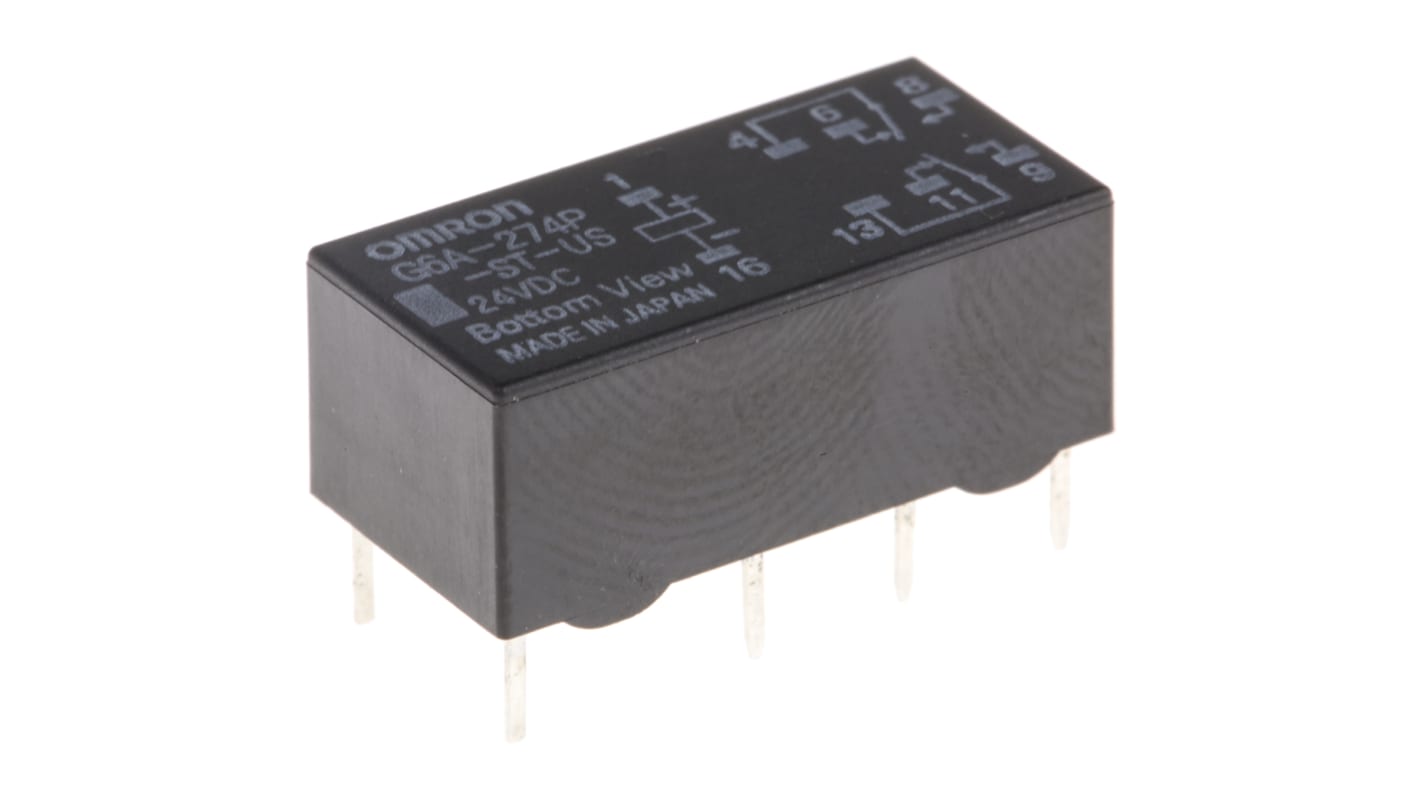

- G6A-274P-ST-US-24DC
- Brand:
- Omron
46 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$10.71
(exc. GST)
$11.78
(inc. GST)
Units | Per unit |
1 - 9 | $10.71 |
10 - 24 | $10.43 |
25 - 99 | $10.15 |
100 - 249 | $9.86 |
250 + | $9.64 |
- RS Stock No.:
- 789-7555
- Mfr. Part No.:
- G6A-274P-ST-US-24DC
- Brand:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
G6A Series DPCO
Fully sealed
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Approvals
UL, CSA
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Contact Configuration | DPDT |
Mounting Type | PCB Mount |
Maximum Switching Current AC | 2 A |
Maximum Switching Current DC | 1 A |
Maximum Switching Voltage AC | 250V |
Maximum Switching Voltage DC | 220V |
Maximum Switching Power DC | 60 W |
Series | G6A |
Length | 20.2mm |
Latching | No |
Depth | 10.1mm |
Height | 8mm |
Dimensions | 20.2 x 8 x 10.1mm |
Terminal Type | PCB Pin |
Number of Poles | 2 |
Application | Signal |
Switching Current | 2A |
Maximum Operating Temperature | +70°C |
Coil Power | 200mW |
Life | 500000 Operations |
Maximum Switching Power AC | 125 VA |
Minimum Operating Temperature | -40°C |
Coil Resistance | 2.88 kΩ |
Operating Temperature Range | -40 → +70°C |
Isolation Coil To Contact | 1.5kV rms |
Features | Resistant To Electromagnetic Interference, Conforms to FCC Part Requirements, Bifurcated Contacts |
Contact Material | Gold Plated |
