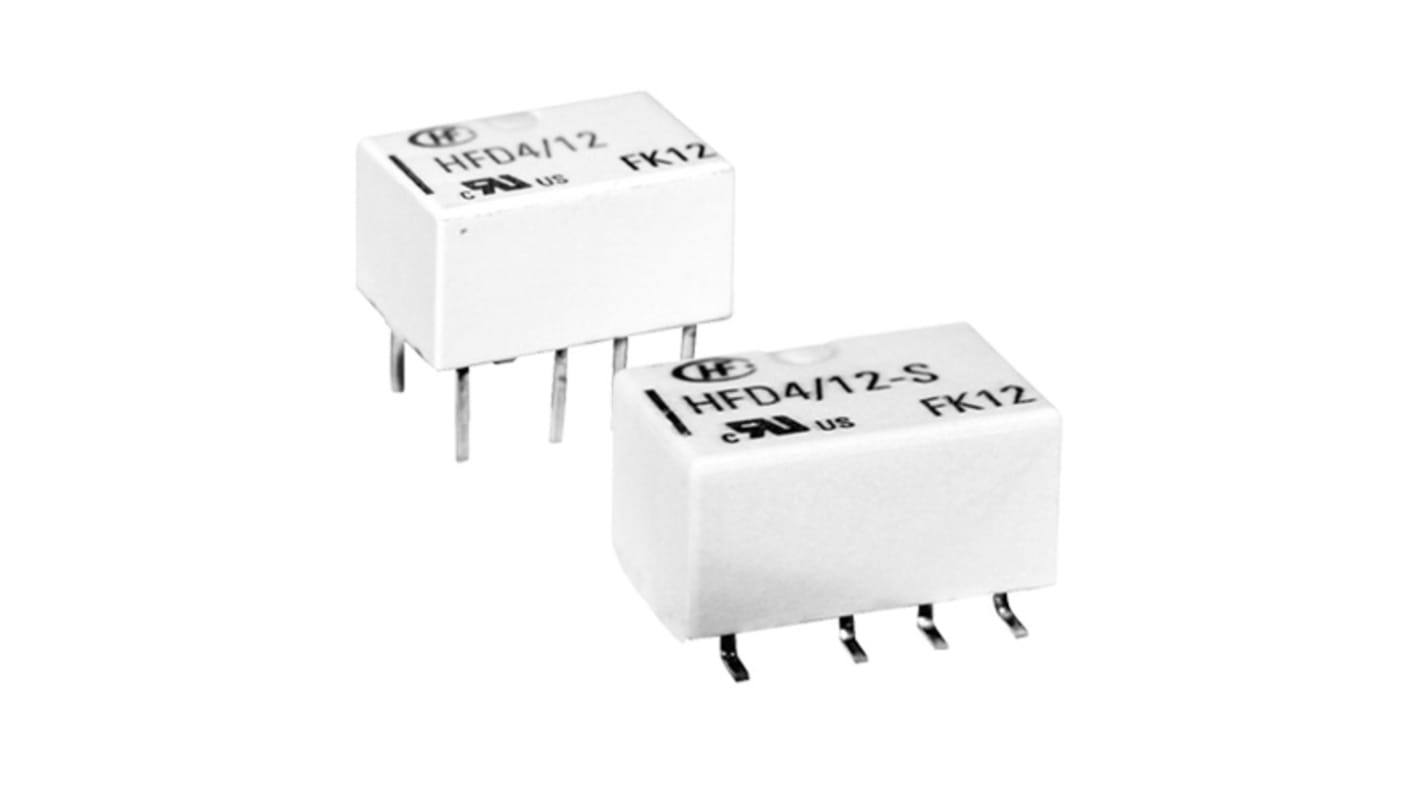

    Hongfa Europe GMBH PCB Mount Latching Signal Relay, 24V dc Coil, 2A Switching Current, DPDT

    View all Signal Relays
    Bulk discount available

    Subtotal (1 tube of 50 units)**

    $227.40

    (exc. GST)

    $250.15

    (inc. GST)

    Add to Basket
    Select or type quantity
    On back order for despatch 13/12/2025, delivery within 10 working days from despatch date.*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Tube**
    50 - 50$4.548$227.40
    100 - 150$4.434$221.70
    200 +$4.366$218.30

    **price indicative

    RS Stock No.:
    176-2734
    Mfr. Part No.:
    HFD4/24-L
    Brand:
    Hongfa Europe GMBH
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Hongfa Europe GMBH

    Coil Voltage

    24V dc

    Contact Configuration

    DPDT

    Mounting Type

    PCB Mount

    Maximum Switching Current AC

    2 A

    Maximum Switching Current DC

    2 A

    Maximum Switching Voltage AC

    250V

    Maximum Switching Voltage DC

    220V

    Series

    HFD4

    Maximum Switching Power DC

    60 W

    Length

    10mm

    Latching

    Yes

    Depth

    6.5mm

    Height

    5.4mm

    Dimensions

    10 x 6.5 x 5.4mm

    Terminal Type

    PCB Pin

    Switching Current

    2A

    Number of Poles

    2

    Coil Power

    200mW

    Coil Resistance

    2880Ω

    Operating Temperature Range

    -40 → +85°C

    Maximum Switching Power AC

    62.5VA

    Life

    1 x 10^8 cycles

    Contact Material

    Silver Alloy

    Maximum Operating Temperature

    +85°C

    Minimum Operating Temperature

    -40°C

    Electrical Life

    1 x 10^5 cycles

    Relay Switching Classification

    Subminiature Signal Relay

    Isolation Coil To Contact

    2.5kV ac

    Standards Met

    CQC File No:CQC16002154336, cULus File No:E133481, TUV File No:R50333270
