RS PRO Adapter Extension Frame for Use with 19-Inch Racks, 6U

RS Stock No.:: 774-3713
Brand:: RS PRO

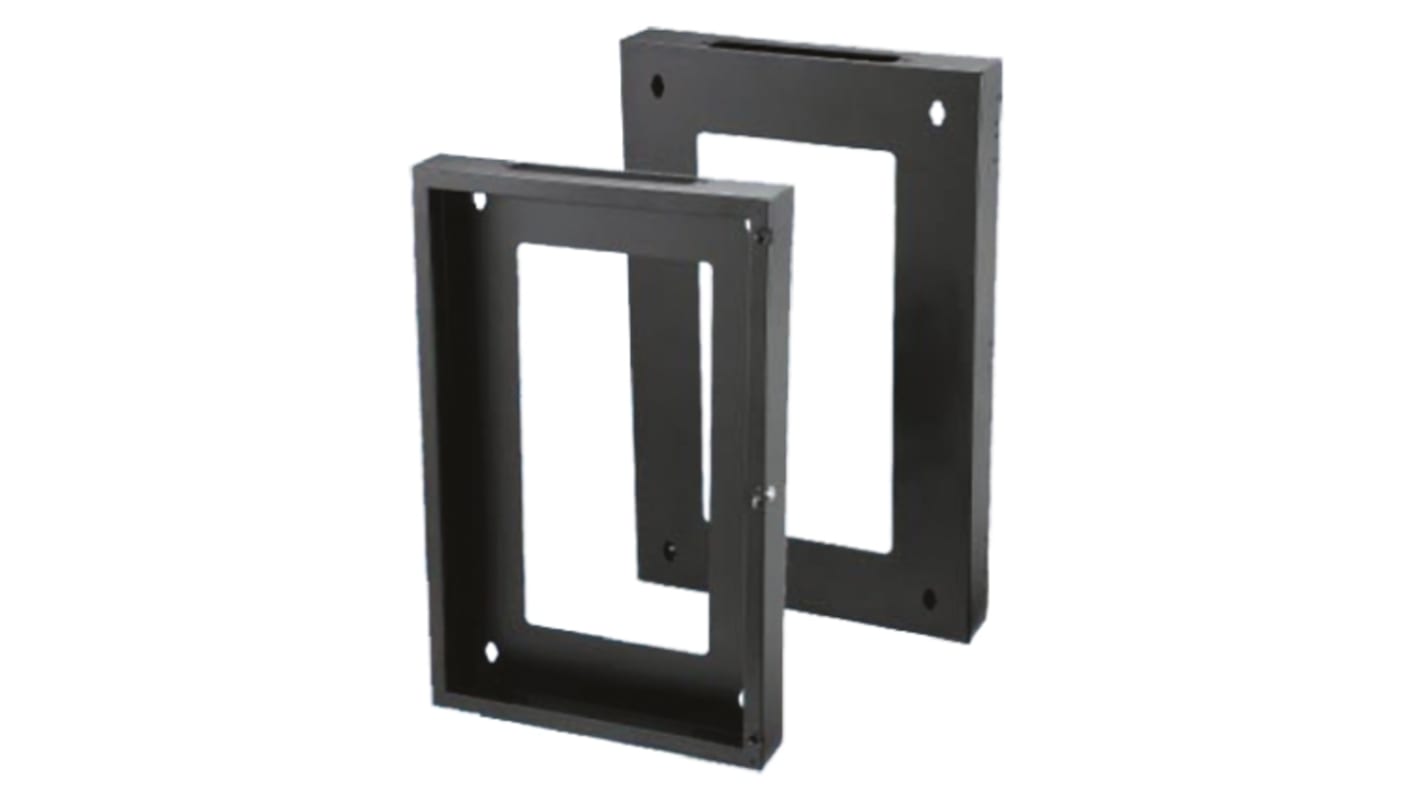

RS PRO Adapter Extension Frame for Use with 19-Inch Racks, 6U

This image is representative of the product range

Discontinued product

RS Stock No.:: 774-3713
Brand:: RS PRO

RS PRO 19 inch Wall Mountable Server Cabinets and Accessories (sold seperately)

These robust 19 inch wall mountable enclosures from RS PRO are manufactured from high grade materials such as steel and are designed to accommodate standard 19 inch server rack equipment. The cabinets have two cable entry points on the top and bottom of the enclosure with plastic snap in panels that cover the slots and can be conveniently removed. For additional security, the panels of the 19 inch enclosures can be replaced by a metal plate secured from the inside of the cabinet. The large opening in the cabinet usually used for fan trays or filler panels can also be used for cable entry. The fully adjustable vertical mounting rails of this wall mount enclosure allow for precise configuration of the equipment.

Features and benefits

The wall cabinet will support loads up to 50kg (load will vary depending on wall construction)

Additional depth can be obtained by installation of extension kits

Reversible doors permit left or right hand installation

Cable openings are provided on the top and bottom panels, plastic snap in panels cover these slots and can be easily removed

Ventilation slots on the side panels and an opening on the top of the enclosure for ventilation

Mounts directly to the wall via four removable brackets, there is a single 19in. mounting rail built in to the front frame

Lockable doors and internally secured panels

Application

Wall mount server cabinets are an excellent choice for installing servers, telecom and network equipment where space is limited, allowing you to install the cabinet to a wall or similar surface. They are ideal for a range of environments such as:

Home

Office

Wiring cupboard

Training room

FAQs

What sizes are available?

This range of wall mountable server cabinets are available in the following sizes:

7743690: 19-inch cabinet, wall mount, 6U

7743694: 19-inch cabinet, wall mount, 9U

7743704: 19-inch cabinet, wall mount, 12U

What accessories are compatible?

7743713: 19-inch cabinet extension kit, 6U

7743717: 19-inch cabinet extension kit, 9U

7743726: 19-inch cabinet extension kit, 12U

7743729: 19-inch cabinet blank panel

7743723: 19-inch cabinet vented panel

Standards

Conforms to EIA310-E Type A, IEC-60297-2.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Type	Extension Frame
	Dimensions	540 mm x 70 mm x 6 U
	For Use With	19-Inch Racks
	Height U	6U

	Select all
	Brand RS PRO
	Type Extension Frame
	Dimensions 540 mm x 70 mm x 6 U
	For Use With 19-Inch Racks
	Height U 6U
