Brainboxes 2 Port PCIe RS422, RS485 Serial Card
- RS Stock No.:
- 668-5509
- Mfr. Part No.:
- PX-313
- Brand:
- Brainboxes
Stock information currently inaccessible
- RS Stock No.:
- 668-5509
- Mfr. Part No.:
- PX-313
- Brand:
- Brainboxes
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Brainboxes | |
| Bus Type | PCIe | |
| Communication Interface | Serial | |
| Number of Ports | 2 | |
| Maximum Baud Rate | 921.6kbit/s | |
| Connection Port | RS422, RS485 | |
| FIFO Size | 128 B | |
| Select all | ||
|---|---|---|
Brand Brainboxes | ||
Bus Type PCIe | ||
Communication Interface Serial | ||
Number of Ports 2 | ||
Maximum Baud Rate 921.6kbit/s | ||
Connection Port RS422, RS485 | ||
FIFO Size 128 B | ||
- COO (Country of Origin):
- GB

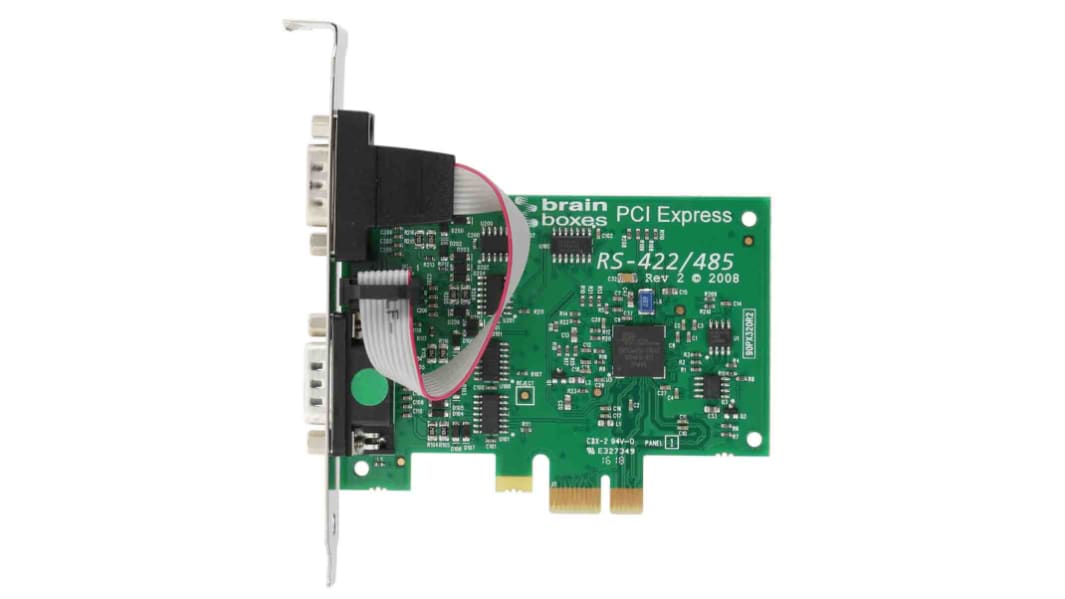

Brainboxes PCI Express Card
The Brainboxes PCI express card provides two RS422/485 serial ports. It has data transfer rates up to 921,600baud rates and the 128byte deep transmit and 128byte receive FIFOS. It is coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32bit and 64bit operating systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, 8 and Windows 10. PCI Express is the latest standard in PC connectivity.
Features and Benefits
Compatible with PCI Express x1, x4, x8 & x16 lane slots
2 x DB9 connector (9-pin male)
Lifetime support
Drivers for all the popular operating systems
Sample programs, test and terminal software
Operating distance is RS422/485 Standard 4000ft : 1200m
Flow control RTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx modes full duplex, half duplex autogating - hardware autogating
2 x DB9 connector (9-pin male)
Lifetime support
Drivers for all the popular operating systems
Sample programs, test and terminal software
Operating distance is RS422/485 Standard 4000ft : 1200m
Flow control RTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx modes full duplex, half duplex autogating - hardware autogating
Certifications
AEO C-TPAT Microsoft Certified Gold Partner WEEE RoHS EMC: CE TAA
