Vishay 100 V 100 A Diode Schottky 2-Pin PowerTab VS-100BGQ100
- RS Stock No.:
- 818-4553
- Mfr. Part No.:
- VS-100BGQ100
- Brand:
- Vishay

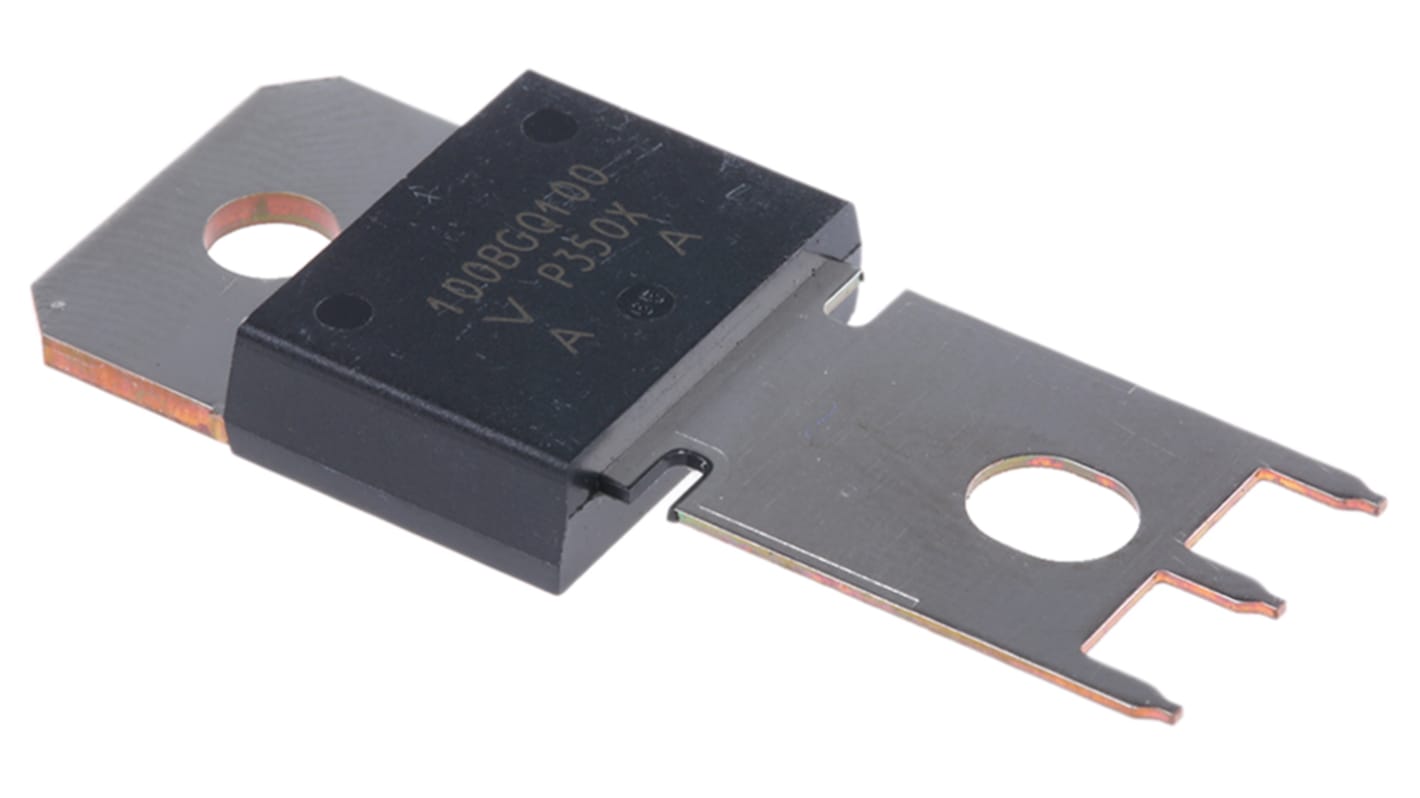

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$5.76
(exc. GST)
$6.34
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 8 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 6 | $5.76 |
| 7 - 12 | $5.68 |
| 13 + | $5.59 |
*price indicative
- RS Stock No.:
- 818-4553
- Mfr. Part No.:
- VS-100BGQ100
- Brand:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Through Hole | |
| Product Type | Diode | |
| Package Type | PowerTab | |
| Maximum Continuous Forward Current If | 100A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Series | VSX | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 18mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 6.3kA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 1.08V | |
| Maximum Operating Temperature | 175°C | |
| Diameter | 15.9mm | |
| Width | 4.95mm | |
| Length | 15.9mm | |
| Height | 20.85mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Through Hole | ||
Product Type Diode | ||
Package Type PowerTab | ||
Maximum Continuous Forward Current If 100A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Series VSX | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Reverse Current Ir 18mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 6.3kA | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 1.08V | ||
Maximum Operating Temperature 175°C | ||
Diameter 15.9mm | ||
Width 4.95mm | ||
Length 15.9mm | ||
Height 20.85mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
High-Performance Schottky Diodes, Vishay Semiconductor
Schottky Rectifiers are semiconductor diodes that exhibit very low forward voltage drop with a very fast switching action. The reverse recovery times of Schottky diodes are extremely quick. Schottky diodes are suitable for applications requiring fast switching and low power loss.
High-performance Schottky diodes from Vishay are offered with forward current ratings of 1A to 175A and voltage ratings of 15V to 150V.
Diodes and Rectifiers, Vishay Semiconductor
