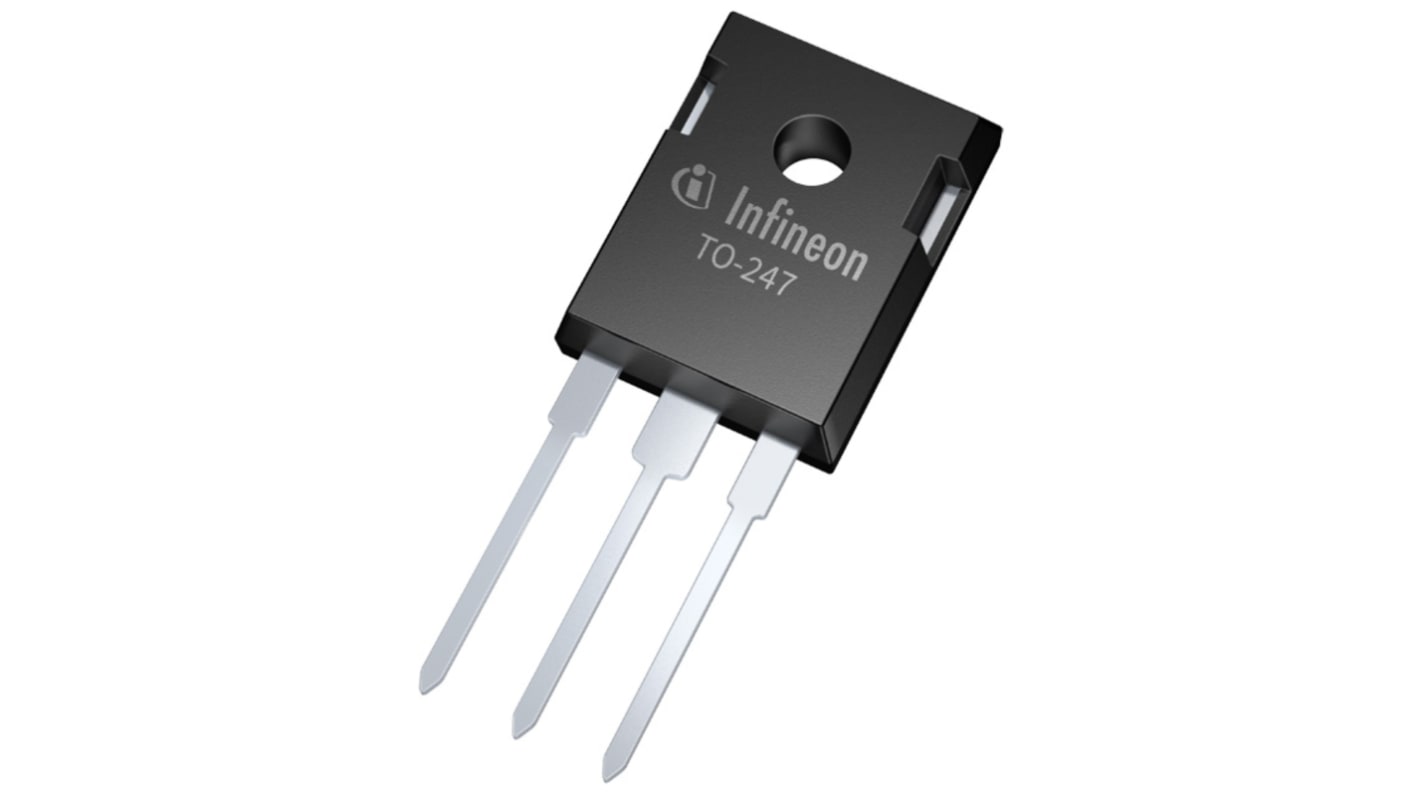

Infineon 650V 20A, SiC Schottky Rectifier & Schottky Diode, TO-247 IDW20G65C5XKSA1
- RS Stock No.:
- 249-6936
- Mfr. Part No.:
- IDW20G65C5XKSA1
- Brand:
- Infineon
Available for back order.
Price (ex. GST) Each (In a Tube of 30)
$11.194
(exc. GST)
$12.313
(inc. GST)
Units | Per unit | Per Tube* |
|---|---|---|
| 30 - 30 | $11.194 | $335.82 |
| 60 - 60 | $10.074 | $302.22 |
| 90 + | $9.067 | $272.01 |
*price indicative
- RS Stock No.:
- 249-6936
- Mfr. Part No.:
- IDW20G65C5XKSA1
- Brand:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The Infineon schottky diode has silicon carbide as revolutionary semiconductor material. The Infineon proprietary diffusion soldering process, already introduced with G3 is now combined with a new. It has more compact design and thin-wafer technology.
Revolutionary semiconductor material - Silicon Carbide
Benchmark switching behaviour
No reverse recovery/ No forward recovery
Temperature independent switching behaviour
High surge current capability
Pb-free lead plating
RoHS compliant
Qualified according to JEDEC1 for target applications
Optimized for high temperature operation
Benchmark switching behaviour
No reverse recovery/ No forward recovery
Temperature independent switching behaviour
High surge current capability
Pb-free lead plating
RoHS compliant
Qualified according to JEDEC1 for target applications
Optimized for high temperature operation
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-247 |
| Maximum Continuous Forward Current | 20A |
| Peak Reverse Repetitive Voltage | 650V |
| Diode Configuration | Single |
| Series | XDW20G65 |
| Rectifier Type | Schottky Diode |
| Diode Type | SiC Schottky |
| Diode Technology | SiC Schottky |
