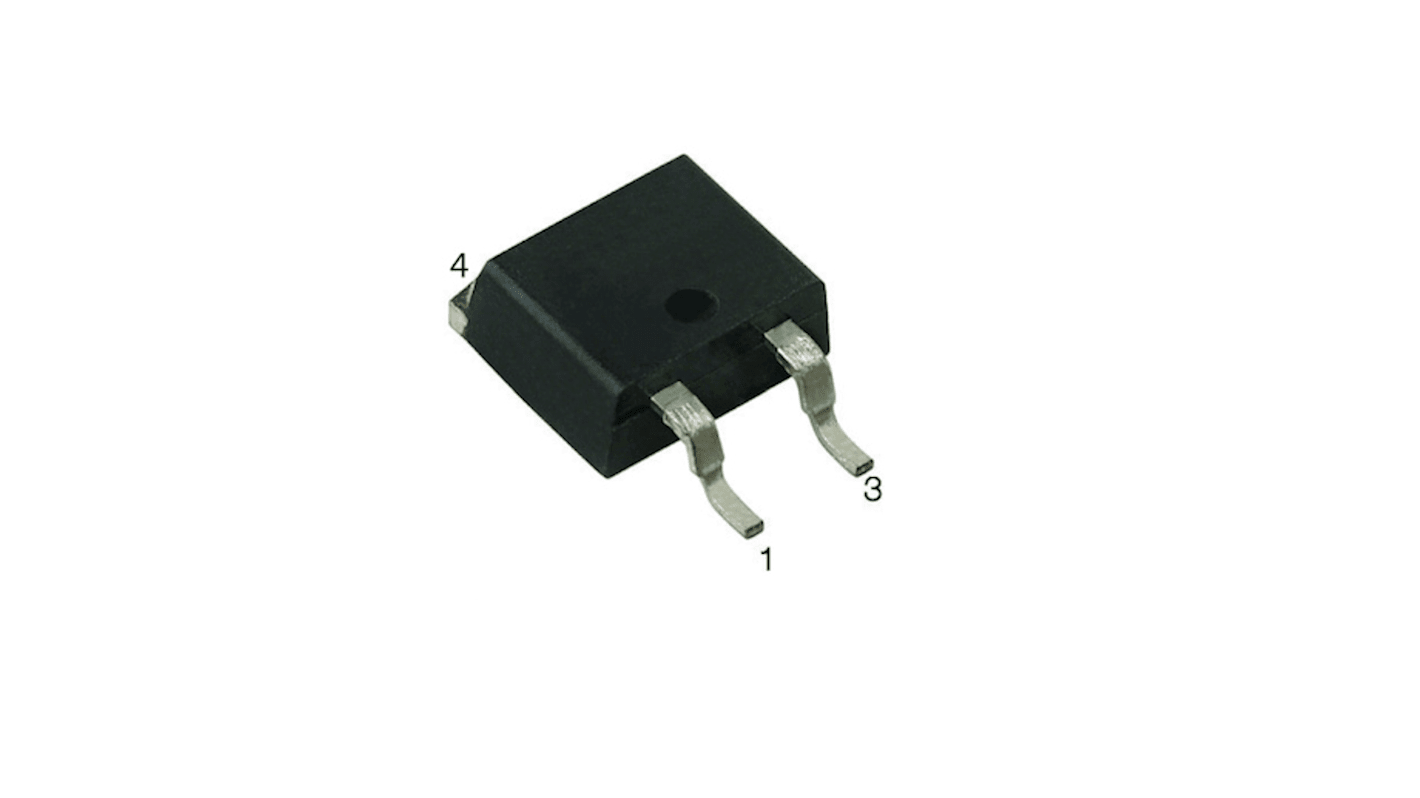

Vishay 600V 30A, Fast Recovery Epitaxial Diode Rectifier & Schottky Diode, D2PAK VS-E5TH3006S2LHM3

RS Stock No.:: 244-9121
Mfr. Part No.:: VS-E5TH3006S2LHM3
Brand:: Vishay

Vishay 600V 30A, Fast Recovery Epitaxial Diode Rectifier & Schottky Diode, D2PAK VS-E5TH3006S2LHM3

790 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (In a Pack of 2)

$4.085

(exc. GST)

$4.493

(inc. GST)

Units	Per unit	Per Pack*
2 - 8	$4.085	$8.17
10 - 48	$3.985	$7.97
50 - 98	$3.89	$7.78
100 - 248	$3.795	$7.59
250 +	$3.70	$7.40

*price indicative

RS Stock No.:: 244-9121
Mfr. Part No.:: VS-E5TH3006S2LHM3
Brand:: Vishay

Technical data sheets

Datasheet - VS-E5TH3006S2LHM3

Legislation and Compliance

Product Details

The Vishay's hyperfast rectifier provides unique combination of low conduction and low switching losses, and can be used in applications like soft switched, resonant converters, medium frequency hard switching converters etc.

Best in class forward voltage drop and switching losses trade off
Optimized for high speed operation
175 °C maximum operating junction temperature
AEC-Q101 qualified meets JESD 201 class 2 whisker test
RoHS compliant

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Mounting Type	Surface Mount
Package Type	D2PAK 2L (TO-263AB 2L)
Maximum Continuous Forward Current	30A
Peak Reverse Repetitive Voltage	600V
Diode Configuration	Single
Series	VS
Rectifier Type	General Purpose
Diode Type	Fast Recovery Epitaxial Diode
